SL10G

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America

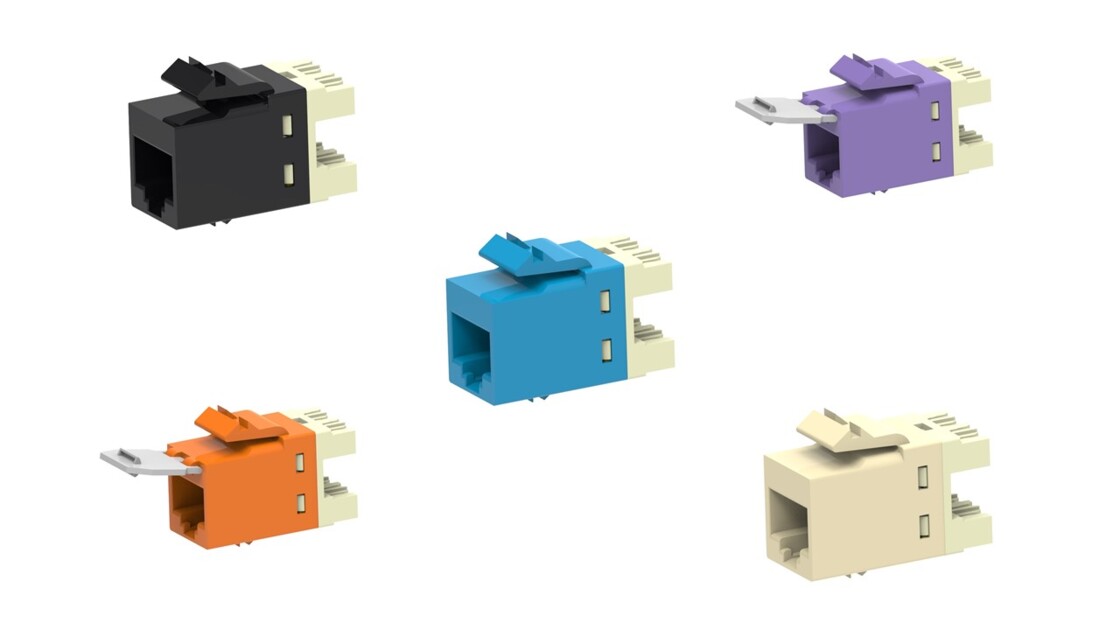

NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of SL10G by selecting options

Product	Integrated Dust Cover Type	Packaging quantity	Regional Availability	Portfolio	Product Series	Product Type	ANSI/TIA Category	Cable Type	Color	Conductor Type	Wiring
760241184 \| SL10G-L.ALD NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, light almond Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Light almond	Solid \| Stranded	T568A \| T568B
760241185 \| SL10G-BLK NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, black Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Black	Solid \| Stranded	T568A \| T568B
760241186 \| SL10G-GRY NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, gray Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Gray	Solid \| Stranded	T568A \| T568B
760241187 \| SL10G-ORG NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, orange Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Orange	Solid \| Stranded	T568A \| T568B
760241188 \| SL10G-BLU NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, blue Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Blue	Solid \| Stranded	T568A \| T568B
760241189 \| SL10G-RED NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, red Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Red	Solid \| Stranded	T568A \| T568B
760241190 \| SL10G-YEL NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, yellow Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Yellow	Solid \| Stranded	T568A \| T568B
760241191 \| SL10G-GRN NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, green Specifications	None	1	Asia \| Australia/New Zealand \| EMEA \| Latin America	NETCONNECT®	SL Series	Modular jack	6A	Unshielded	Green	Solid \| Stranded	T568A \| T568B

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America
Portfolio	NETCONNECT®
Product Type	Modular jack
Product Series	SL Series

General Specifications

ANSI/TIA Category	6A
Cable Type	Unshielded
Conductor Type	Solid \| Stranded
Mounting	SL Series faceplates and panels
Outlet Type	Standard
Termination Tool	SL Termination tool
Termination Type	IDC
Transmission Standards	ANSI/TIA-568.2-D \| ISO/IEC 11801 Class EA
Wiring	T568A \| T568B

Dimensions

Panel Cutout, recommended	14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended	1.6 mm \| 0.063 in
Height	16.13 mm \| 0.635 in
Width	14.48 mm \| 0.570 in
Depth	30.48 mm \| 1.200 in
Compatible Cable Diameter, maximum	7.24 mm \| 0.285 in
Compatible Insulated Conductor Diameter, maximum	1.45 mm \| 0.057 in
Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	24–22 AWG
Compatible Conductor Gauge, stranded	26–24 AWG

Electrical Specifications

Remote Powering	Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
PoE Durability	Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles

Material Specifications

Contact Base Material	Beryllium copper
Contact Plating Material	Gold
Material Type	Copper alloy \| High-impact, flame retardant, thermoplastic \| Polycarbonate

Mechanical Specifications

Plug to Jack Mating Cycles

Complies to IEC 60603-7 series

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating	UL 94 V-0
