2NN2H4-33B-R6B

24-Port antenna, 8 x 698-896 MHz, 16 x 1710-2400 MHz, 33° HPBW, 6 x RETs, 4x SBTs, 6ft Length

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Provides 4 ports per beam for low band and 8 ports per beam for mid band
  • Twin beam patterns are optimized for minimum beam crossover providing for improved 4G and 5G data throughput

General Specifications

Antenna Type Multibeam
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 8
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 4 female | 4 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 17 | Port 5 | Port 9
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 1828 mm | 71.969 in
Net Weight, antenna only 59.5 kg | 131.175 lb

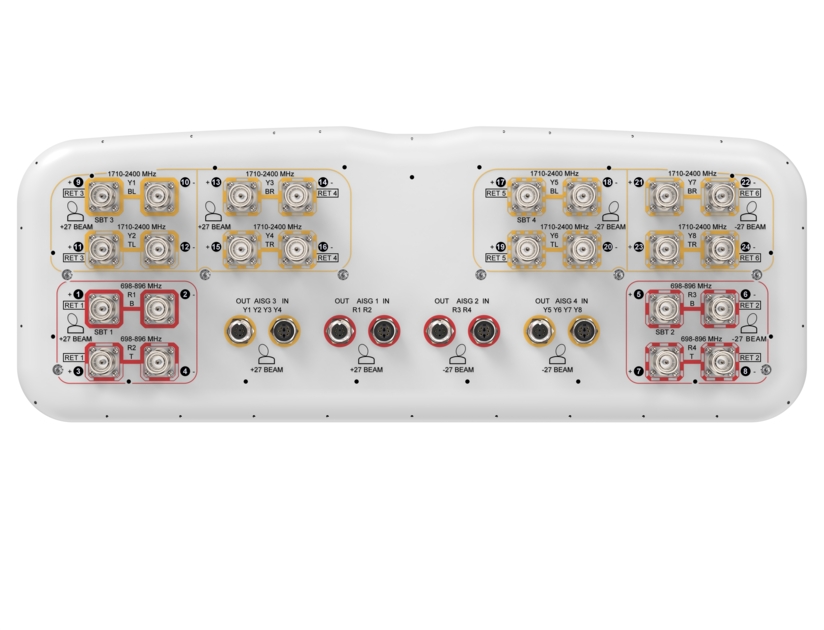

Array Layout

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1710 – 2400 MHz
Polarization ±45°
Total Input Power, maximum 2,000 W @ 50 °C

Electrical Specifications

R1-R4 R1-R4 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8
Frequency Band, MHz 698–806 824–896 1710–1880 1850–1990 1920–2200 2300–2400
RF Port 1-8 1-8 9-24 9-24 9-24 9-24
Gain, dBi 14.0 14.6 16.2 17.1 17.9 18.4
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 41 37 34 33 30 28
Beamwidth, Vertical, degrees 25 22.4 10.2 9.3 8.7 7.7
Beam Tilt, degrees 2–20 2–20 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 18 15 16 16 16
Front-to-Back Ratio at 180°, dB 27 30 31 34 32 32
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 250

Mechanical Specifications

Wind Loading @ Velocity, frontal 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 206.0 N @ 150 km/h (46.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 911.0 N @ 150 km/h (204.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 446.0 N @ 150 km/h (100.3 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 387 mm | 15.236 in
Length, packed 1982 mm | 78.032 in
Weight, gross 80 kg | 176.370 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Multibeam
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 8
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 4 female | 4 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 17 | Port 5 | Port 9
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 1828 mm | 71.969 in
Net Weight, antenna only 59.5 kg | 131.175 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1710 – 2400 MHz
Polarization ±45°
Total Input Power, maximum 2,000 W @ 50 °C

Electrical Specifications

R1-R4 R1-R4 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8
Frequency Band, MHz 698–806 824–896 1710–1880 1850–1990 1920–2200 2300–2400
RF Port 1-8 1-8 9-24 9-24 9-24 9-24
Gain, dBi 14.0 14.6 16.2 17.1 17.9 18.4
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 41 37 34 33 30 28
Beamwidth, Vertical, degrees 25 22.4 10.2 9.3 8.7 7.7
Beam Tilt, degrees 2–20 2–20 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 18 15 16 16 16
Front-to-Back Ratio at 180°, dB 27 30 31 34 32 32
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 250

Mechanical Specifications

Wind Loading @ Velocity, frontal 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 206.0 N @ 150 km/h (46.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 911.0 N @ 150 km/h (204.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 446.0 N @ 150 km/h (100.3 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 387 mm | 15.236 in
Length, packed 1982 mm | 78.032 in
Weight, gross 80 kg | 176.370 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Assembly Drawing

Line drawing

Installation Instruction

639849 Mounting Kits For Wide Panel Antennas

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

2NN2H4-33B-R6B Product specifications
2NN2H4-33B-R6B Product specifications (Comprehensive)

Warranty

CommScope Limited Product Warranty

Assembly Drawing

Line drawing

Installation Instruction

639849 Mounting Kits For Wide Panel Antennas

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

2NN2H4-33B-R6B Product specifications
2NN2H4-33B-R6B Product specifications (Comprehensive)

Warranty

CommScope Limited Product Warranty
