DB420-B

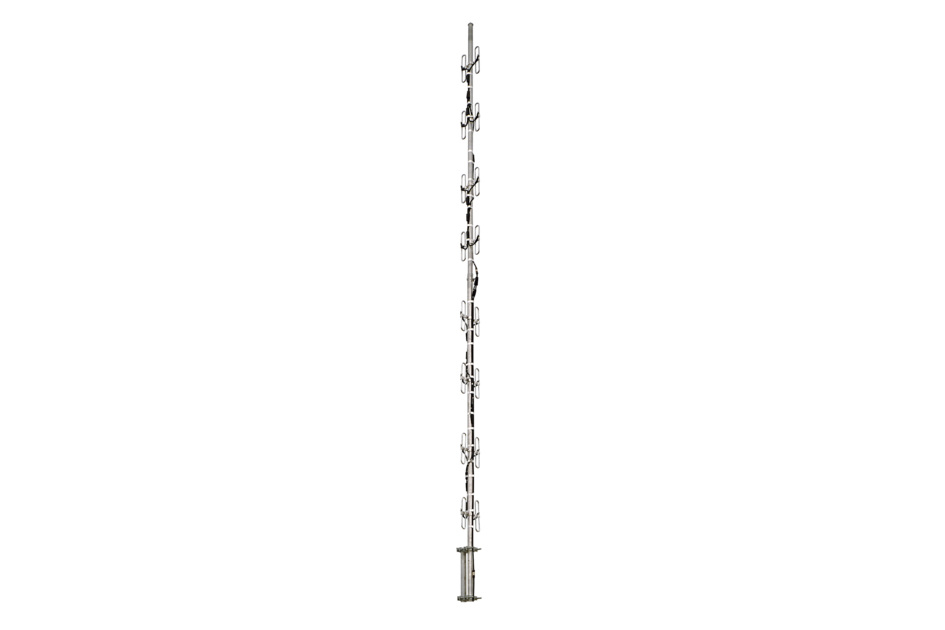

1-port omni exposed dipole antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Broad response
  • Moisture resistant
  • Rugged, reliable design
Specifications

General Specifications

Antenna Type Omni
Band Single band
Color Silver
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radiator Material Aluminum
RF Connector Interface N Male
RF Connector Location End of flexible lead
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Length 5918.2 mm | 233 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 450 – 470 MHz
Polarization Vertical

Electrical Specifications

Frequency Band, MHz 450–470
Gain, dBi 11.3
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 7
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 250

Mechanical Specifications

Wind Loading at Velocity, maximum 133.0 lbf @ 100 mph | 591.6 N @ 100 mph
Wind Speed, maximum 161 km/h | 100.041 mph

Packaging and Weights

Net Weight, without mounting kit 15.6 kg | 34.392 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
