This product was discontinued on: March 30, 2024

For other alternatives, please contact us for more information.

0 Replacement products available

DBXLH-6565C-VTM

4-port sector antenna, 2x 824–960 and 2x 1710–2180 MHz, 65° HPBW, RET compatible

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Interleaved dipole technology providing for attractive, low wind load mechanical package

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material PVC, UV resistant
Radiator Material Aluminum
RF Connector Interface 7-16 DIN Female

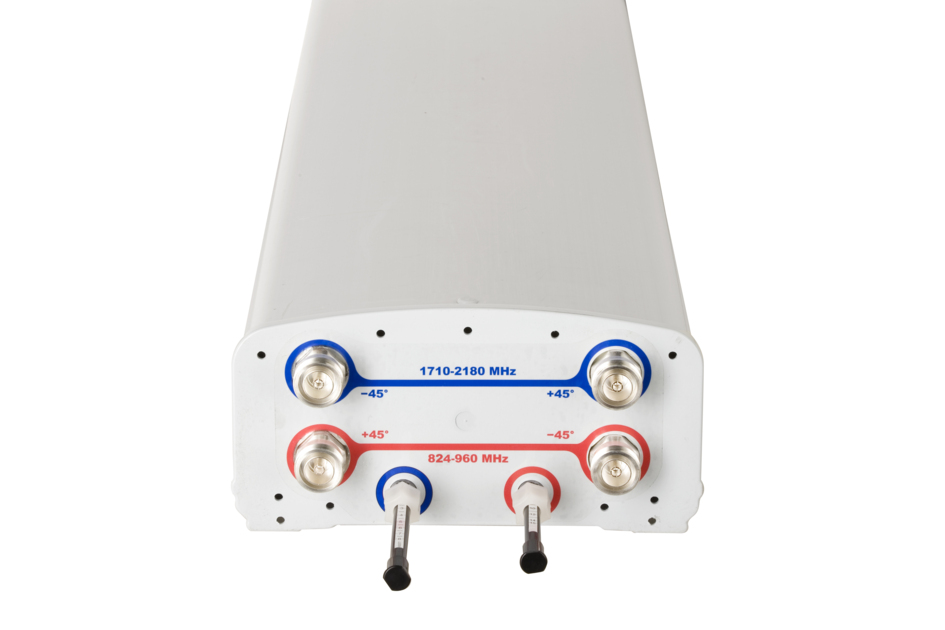

RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 4

Dimensions

Width 269 mm | 10.591 in
Depth 132 mm | 5.197 in
Length 2577 mm | 101.457 in
Net Weight, without mounting kit 21.7 kg | 47.84 lb

Array Layout

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 824 – 960 MHz | 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 824–896 870–960 1710–1880 1850–1990 1920–2180
Gain, dBi 16.8 17.4 18.5 18.7 18.3
Beamwidth, Horizontal, degrees 70 67 66 62 60
Beamwidth, Vertical, degrees 7.7 7.4 4.9 4.6 4.3
Beam Tilt, degrees 0–8 0–8 0–6 0–6 0–6
USLS (First Lobe), dB 15 15 15 15 15
Front-to-Back Ratio at 180°, dB 26 27 32 32 28
Isolation, Cross Polarization, dB 30 30 30 30 30
Isolation, Inter-band, dB 35 35 35 35 35
VSWR | Return loss, dB 1.4 | 15.6 1.5 | 14.0 1.5 | 14.0 1.4 | 15.6 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 350 350 350 350 350

Mechanical Specifications

Wind Loading @ Velocity, frontal 922.0 N @ 150 km/h (207.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 202.0 N @ 150 km/h (45.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,003.0 N @ 150 km/h (225.5 lbf @ 150 km/h)
Wind Speed, maximum 201 km/h (125 mph)

Packaging and Weights

Width, packed 376 mm | 14.803 in
Depth, packed 267 mm | 10.512 in
Length, packed 2717 mm | 106.969 in
Weight, gross 31 kg | 68.343 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
