EGRZZH4T4VV65DR8V2

30-port sector antenna, 2x 694-862 (R1), 2x 880-960 (R2), 2x 694-960 (R3), 4x 1427-2690 (Y4/Y6), 8x 1695-2180 (B1-B4), 8x 2490-2690 (Y1/Y3/Y5/Y7) & 4x 1695-2690 (Y2&Y8) MHz, 65° HPBW, 8x RET.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 24
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 6
RF Connector Quantity, total 30

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v1 | CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (5) | Low band (3)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 9 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 69.6 kg | 153.442 lb

Array Layout

Click on image to enlarge.

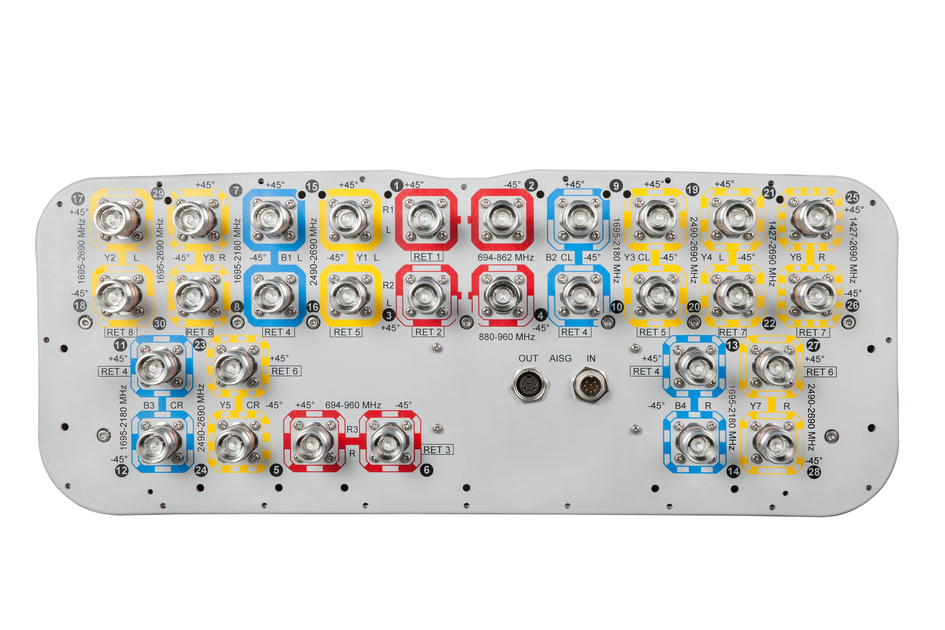

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1 R2 R3 B1-B4 B1-B4 Y1/Y3/Y5/Y7 Y2/Y4/Y6/Y8 Y2/Y4/Y6/Y8 Y4/Y6
Frequency Band, MHz 694–862 880–960 694–960 1695–1880 1920–2180 2490–2690 1695–2180 2490–2690 1427–1518
Gain, dBi 15.2 15.4 16.1 16.2 17.1 17.8 16.9 17.6 14.8
Beamwidth, Horizontal, degrees 68 65 67 69 62 57 62 55 71
Beamwidth, Vertical, degrees 8.6 7.4 8.1 7.4 6.6 5.4 7.1 5.4 9.3
Beam Tilt, degrees 2–14 2–14 2–14 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 20 19 16 19 17 17 22 18
Front-to-Back Ratio at 180°, dB 32 26 29 32 30 28 34 31 35
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 200 200 200 150 200 200 200

Mechanical Specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 90.6 kg | 199.739 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 24
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 6
RF Connector Quantity, total 30

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v1 | CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (5) | Low band (3)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 9 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 69.6 kg | 153.442 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1 R2 R3 B1-B4 B1-B4 Y1/Y3/Y5/Y7 Y2/Y4/Y6/Y8 Y2/Y4/Y6/Y8 Y4/Y6
Frequency Band, MHz 694–862 880–960 694–960 1695–1880 1920–2180 2490–2690 1695–2180 2490–2690 1427–1518
Gain, dBi 15.2 15.4 16.1 16.2 17.1 17.8 16.9 17.6 14.8
Beamwidth, Horizontal, degrees 68 65 67 69 62 57 62 55 71
Beamwidth, Vertical, degrees 8.6 7.4 8.1 7.4 6.6 5.4 7.1 5.4 9.3
Beam Tilt, degrees 2–14 2–14 2–14 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 20 19 16 19 17 17 22 18
Front-to-Back Ratio at 180°, dB 32 26 29 32 30 28 34 31 35
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 200 200 200 150 200 200 200

Mechanical Specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 90.6 kg | 199.739 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
