FF-65C-R2

4-port sector antenna, 4x 617–894 MHz, 65° HPBW, 2x RET, 600MHz-Ready Antenna Technology

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

4.3-10 connector significantly improves PIM consistency and smaller footprint on antenna bottom

Specifications

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, low band	4
RF Connector Quantity, total	4

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	Low band (2)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	2438 mm \| 95.984 in
Net Weight, without mounting kit	39.8 kg \| 87.744 lb

Array Layout

Click on image to enlarge.

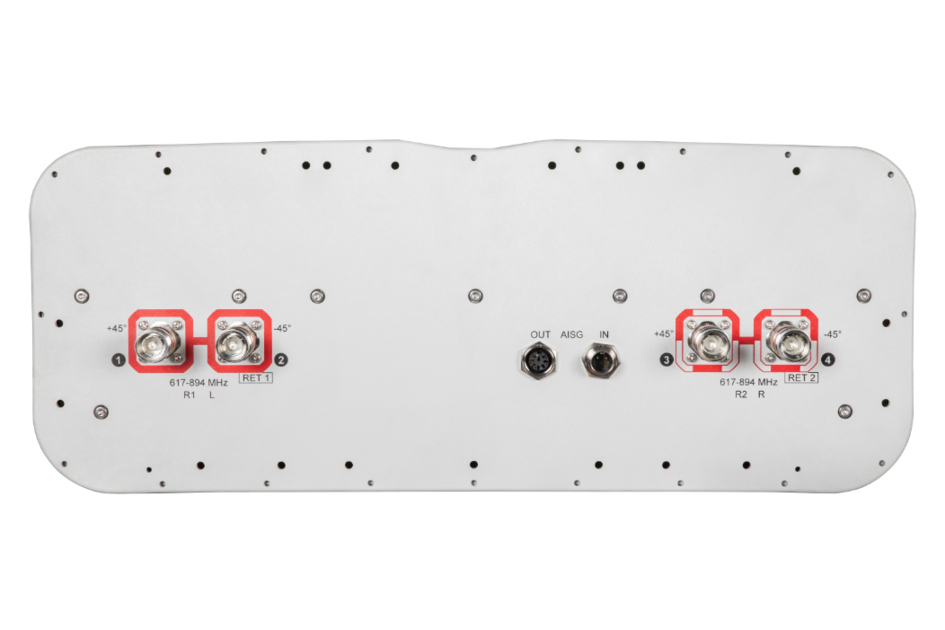

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	617 – 894 MHz
Polarization	±45°
Total Input Power, maximum	700 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	617–698	698–894
Gain, dBi	15.0	15.6
Beamwidth, Horizontal, degrees	66	56
Beamwidth, Vertical, degrees	10.2	8.6
Beam Tilt, degrees	2–13	2–13
USLS (First Lobe), dB	18	17
Front-to-Back Ratio at 180°, dB	28	30
Isolation, Cross Polarization, dB	25	25
Isolation, Inter-band, dB	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port at 50°C, maximum, watts	250	250

Electrical Specifications, BASTA

Frequency Band, MHz	617–698	698–894
Gain by all Beam Tilts, average, dBi	14.6	15.3
Gain by all Beam Tilts Tolerance, dB	±0.7	±0.4
Beamwidth, Horizontal Tolerance, degrees	±5.4	±5.5
Beamwidth, Vertical Tolerance, degrees	±0.6	±1
USLS, beampeak to 20° above beampeak, dB	18	16
Front-to-Back Total Power at 180° ± 30°, dB	21	22
CPR at Boresight, dB	18	18
CPR at Sector, dB	9	8

Mechanical Specifications

Wind Loading @ Velocity, frontal	954.0 N @ 150 km/h (214.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	331.0 N @ 150 km/h (74.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,235.0 N @ 150 km/h (277.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	785.0 N @ 150 km/h (176.5 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	565 mm \| 22.244 in
Depth, packed	368 mm \| 14.488 in
Length, packed	2624 mm \| 103.307 in
Weight, gross	60.6 kg \| 133.600 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant, Compliant/Exempted

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, low band	4
RF Connector Quantity, total	4

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	Low band (2)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	2438 mm \| 95.984 in
Net Weight, without mounting kit	39.8 kg \| 87.744 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	617 – 894 MHz
Polarization	±45°
Total Input Power, maximum	700 W @ 50 °C

Electrical Specifications

Frequency Band, MHz	617–698	698–894
Gain, dBi	15.0	15.6
Beamwidth, Horizontal, degrees	66	56
Beamwidth, Vertical, degrees	10.2	8.6
Beam Tilt, degrees	2–13	2–13
USLS (First Lobe), dB	18	17
Front-to-Back Ratio at 180°, dB	28	30
Isolation, Cross Polarization, dB	25	25
Isolation, Inter-band, dB	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port at 50°C, maximum, watts	250	250

Electrical Specifications, BASTA

Frequency Band, MHz	617–698	698–894
Gain by all Beam Tilts, average, dBi	14.6	15.3
Gain by all Beam Tilts Tolerance, dB	±0.7	±0.4
Beamwidth, Horizontal Tolerance, degrees	±5.4	±5.5
Beamwidth, Vertical Tolerance, degrees	±0.6	±1
USLS, beampeak to 20° above beampeak, dB	18	16
Front-to-Back Total Power at 180° ± 30°, dB	21	22
CPR at Boresight, dB	18	18
CPR at Sector, dB	9	8

Mechanical Specifications

Wind Loading @ Velocity, frontal	954.0 N @ 150 km/h (214.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	331.0 N @ 150 km/h (74.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,235.0 N @ 150 km/h (277.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	785.0 N @ 150 km/h (176.5 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	565 mm \| 22.244 in
Depth, packed	368 mm \| 14.488 in
Length, packed	2624 mm \| 103.307 in
Weight, gross	60.6 kg \| 133.600 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant, Compliant/Exempted
