HWXX-6516DS1-VTM | HWXX-6516DS1-A2M

4-port sector antenna, 4x 1710–2690 MHz, 65° HPBW, RET compatible

Specifications

Finish making your selections or clear them to view relevant specifications.

View

Find a Partner

Support

Features and Benefits

Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE at a later date
Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands

Specifications

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light gray
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	PVC, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum

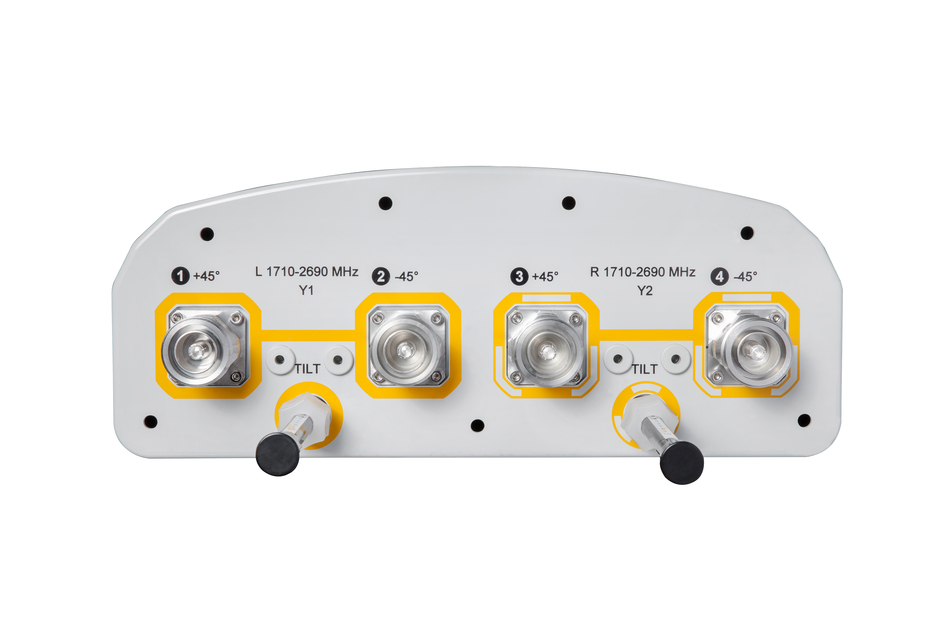

RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, total	4

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator

HWXX-6516DS1-A2M

Dimensions

Width	305 mm \| 12.008 in
Depth	118 mm \| 4.646 in
Length	1390 mm \| 54.724 in
Net Weight, without mounting kit	10.2 kg \| 22.487 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	1710 – 2690 MHz
Polarization	±45°

Electrical Specifications

Frequency Band, MHz	1710–1880	1850–1990	1920–2170	2300–2500	2500–2690
Gain, dBi	17.4	17.6	17.9	18.6	18.6
Beamwidth, Horizontal, degrees	66	65	65	63	62
Beamwidth, Vertical, degrees	6.7	6.4	6.1	5.3	5.1
Beam Tilt, degrees	0–10	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	16	16	16	18	18
Front-to-Back Ratio at 180°, dB	27	30	30	29	29
Isolation, Cross Polarization, dB	30	30	30	30	30
Isolation, Inter-band, dB	28	28	28	28	28
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153
Input Power per Port, maximum, watts	350	350	350	350	350

Electrical Specifications, BASTA

Frequency Band, MHz	1710–1880	1850–1990	1920–2170	2300–2500	2500–2690
Gain by all Beam Tilts, average, dBi	17.2	17.4	17.8	18.0	18.3
Gain by all Beam Tilts Tolerance, dB	±0.3	±0.4	±0.5	±0.3	±0.3
Gain by Beam Tilt, average, dBi	0 ° \| 17.0 5 ° \| 17.3 10 ° \| 17.1	0 ° \| 17.3 5 ° \| 17.4 10 ° \| 17.2	0 ° \| 17.8 5 ° \| 17.9 10 ° \| 17.6	0 ° \| 17.8 5 ° \| 18.1 10 ° \| 18.0	0 ° \| 18.3 5 ° \| 18.4 10 ° \| 17.9
Beamwidth, Horizontal Tolerance, degrees	±2.7	±2.7	±2.1	±2.1	±3
Beamwidth, Vertical Tolerance, degrees	±0.3	±0.2	±0.4	±0.2	±0.2
USLS, beampeak to 20° above beampeak, dB	16	16	17	20	21
Front-to-Back Total Power at 180° ± 30°, dB	25	26	27	27	26
CPR at Boresight, dB	16	17	16	19	17
CPR at Sector, dB	15	14	14	9	10

Mechanical Specifications

Wind Loading @ Velocity, frontal	512.0 N @ 150 km/h (115.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	120.0 N @ 150 km/h (27.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	560.0 N @ 150 km/h (125.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h \| 149.75 mph

Packaging and Weights

Width, packed	413 mm \| 16.26 in
Depth, packed	249 mm \| 9.803 in
Length, packed	1525 mm \| 60.039 in
Weight, gross	18.5 kg \| 40.785 lb

Regulatory Compliance/Certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light gray
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	PVC, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, total	4

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator

HWXX-6516DS1-A2M

Dimensions

Width	305 mm \| 12.008 in
Depth	118 mm \| 4.646 in
Length	1390 mm \| 54.724 in
Net Weight, without mounting kit	10.2 kg \| 22.487 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	1710 – 2690 MHz
Polarization	±45°

Electrical Specifications

Frequency Band, MHz	1710–1880	1850–1990	1920–2170	2300–2500	2500–2690
Gain, dBi	17.4	17.6	17.9	18.6	18.6
Beamwidth, Horizontal, degrees	66	65	65	63	62
Beamwidth, Vertical, degrees	6.7	6.4	6.1	5.3	5.1
Beam Tilt, degrees	0–10	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	16	16	16	18	18
Front-to-Back Ratio at 180°, dB	27	30	30	29	29
Isolation, Cross Polarization, dB	30	30	30	30	30
Isolation, Inter-band, dB	28	28	28	28	28
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153
Input Power per Port, maximum, watts	350	350	350	350	350

Electrical Specifications, BASTA

Frequency Band, MHz	1710–1880	1850–1990	1920–2170	2300–2500	2500–2690
Gain by all Beam Tilts, average, dBi	17.2	17.4	17.8	18.0	18.3
Gain by all Beam Tilts Tolerance, dB	±0.3	±0.4	±0.5	±0.3	±0.3
Gain by Beam Tilt, average, dBi	0 ° \| 17.0; 5 ° \| 17.3; 10 ° \| 17.1	0 ° \| 17.3; 5 ° \| 17.4; 10 ° \| 17.2	0 ° \| 17.8; 5 ° \| 17.9; 10 ° \| 17.6	0 ° \| 17.8; 5 ° \| 18.1; 10 ° \| 18.0	0 ° \| 18.3; 5 ° \| 18.4; 10 ° \| 17.9
Beamwidth, Horizontal Tolerance, degrees	±2.7	±2.7	±2.1	±2.1	±3
Beamwidth, Vertical Tolerance, degrees	±0.3	±0.2	±0.4	±0.2	±0.2
USLS, beampeak to 20° above beampeak, dB	16	16	17	20	21
Front-to-Back Total Power at 180° ± 30°, dB	25	26	27	27	26
CPR at Boresight, dB	16	17	16	19	17
CPR at Sector, dB	15	14	14	9	10

Mechanical Specifications

Wind Loading @ Velocity, frontal	512.0 N @ 150 km/h (115.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	120.0 N @ 150 km/h (27.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	560.0 N @ 150 km/h (125.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h \| 149.75 mph

Packaging and Weights

Width, packed	413 mm \| 16.26 in
Depth, packed	249 mm \| 9.803 in
Length, packed	1525 mm \| 60.039 in
Weight, gross	18.5 kg \| 40.785 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
