JAHH-45A-R3B

8-port sector antenna, 2x 698–798, 2x 824-894 and 4x 1695–2360 MHz, 45° HPBW, low bands each have a RET and the high bands share a RET. Two internal SBTs.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
  • One RET for 700MHz, one RET for 850MHz, and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
  • Internal filter on low band and interleaved dipole technology providing for attractive, low wind load mechanical package
  • Separate RS-485 RET input/output for low and high band
  • Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 5
Internal RET High band (1) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 1399 mm | 55.079 in
Net Weight, without mounting kit 33.5 kg | 73.855 lb

Array Layout

Click on image to enlarge.

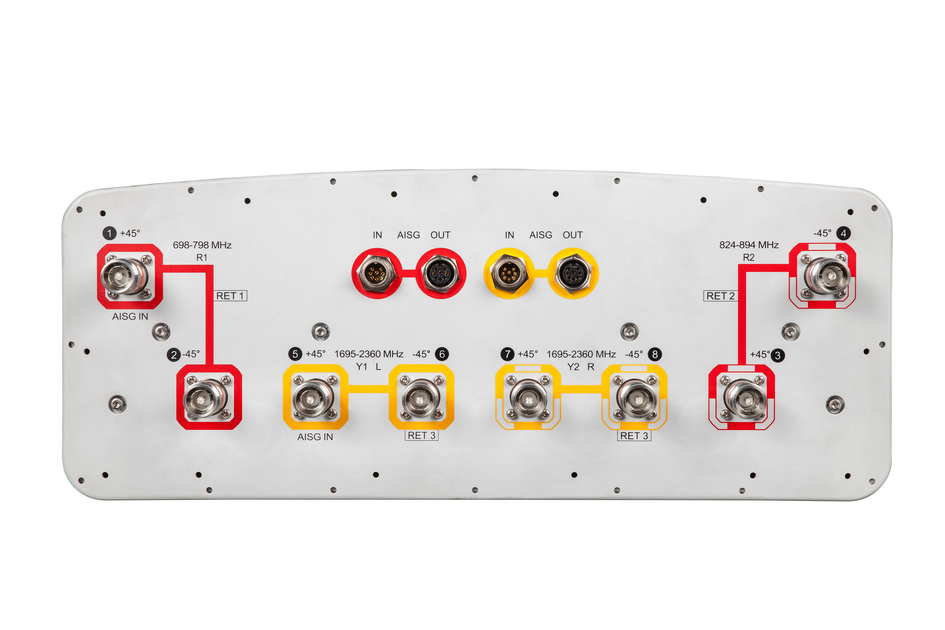

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 798 MHz | 824 – 894 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–798 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 14.8 15.6 18.1 18.7 19.1 19.6
Beamwidth, Horizontal, degrees 49 42 44 43 42 39
Beamwidth, Vertical, degrees 18.6 16.6 7.7 7.2 6.7 6
Beam Tilt, degrees 2–18 2–18 1–9 1–9 1–9 1–9
USLS (First Lobe), dB 17 19 18 19 19 20
Front-to-Back Ratio at 180°, dB 33 32 36 37 36 37
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 200 200 300 300 300 250

Electrical Specifications, BASTA

Frequency Band, MHz 698–798 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 14.5 15.4 17.7 18.4 18.8 19.4
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.4 ±0.5 ±0.4 ±0.5 ±0.3
Gain by Beam Tilt, average, dBi 2 ° | 14.6
10 ° | 14.5
18 ° | 14.3
2 ° | 15.6
10 ° | 15.4
18 ° | 15.1
1 ° | 17.7
5 ° | 17.8
9 ° | 17.5
1 ° | 18.5
5 ° | 18.5
9 ° | 18.2
1 ° | 18.8
5 ° | 18.9
9 ° | 18.6
1 ° | 19.5
5 ° | 19.5
9 ° | 19.2
Beamwidth, Horizontal Tolerance, degrees ±1.5 ±2.7 ±2.4 ±1.5 ±2.4 ±1.3
Beamwidth, Vertical Tolerance, degrees ±1.2 ±0.8 ±0.3 ±0.3 ±0.4 ±0.2
USLS, beampeak to 20° above beampeak, dB 17 22 14 14 15 15
Front-to-Back Total Power at 180° ± 30°, dB 24 23 29 31 32 32
CPR at Boresight, dB 22 24 17 21 20 19
CPR at Sector, dB 17 17 11 13 15 17

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.74 m² | 7.965 ft²
Effective Projective Area (EPA), lateral 0.15 m² | 1.615 ft²
Mechanical Tilt Range 0°–22°
Wind Loading @ Velocity, frontal 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 159.0 N @ 150 km/h (35.7 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 692.0 N @ 150 km/h (155.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 608 mm | 23.937 in
Depth, packed 346 mm | 13.622 in
Length, packed 1542 mm | 60.709 in
Weight, gross 46.5 kg | 102.515 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 5
Internal RET High band (1) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 1399 mm | 55.079 in
Net Weight, without mounting kit 33.5 kg | 73.855 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 798 MHz | 824 – 894 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–798 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 14.8 15.6 18.1 18.7 19.1 19.6
Beamwidth, Horizontal, degrees 49 42 44 43 42 39
Beamwidth, Vertical, degrees 18.6 16.6 7.7 7.2 6.7 6
Beam Tilt, degrees 2–18 2–18 1–9 1–9 1–9 1–9
USLS (First Lobe), dB 17 19 18 19 19 20
Front-to-Back Ratio at 180°, dB 33 32 36 37 36 37
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 200 200 300 300 300 250

Electrical Specifications, BASTA

Frequency Band, MHz 698–798 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 14.5 15.4 17.7 18.4 18.8 19.4
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.4 ±0.5 ±0.4 ±0.5 ±0.3
Gain by Beam Tilt, average, dBi 2 ° | 14.6;10 ° | 14.5; 18 ° | 14.3 2 ° | 15.6;10 ° | 15.4; 18 ° | 15.1 1 ° | 17.7; 5 ° | 17.8; 9 ° | 17.5 1 ° | 18.5; 5 ° | 18.5; 9 ° | 18.2 1 ° | 18.8; 5 ° | 18.9; 9 ° | 18.6 1 ° | 19.5; 5 ° | 19.5; 9 ° | 19.2
Beamwidth, Horizontal Tolerance, degrees ±1.5 ±2.7 ±2.4 ±1.5 ±2.4 ±1.3
Beamwidth, Vertical Tolerance, degrees ±1.2 ±0.8 ±0.3 ±0.3 ±0.4 ±0.2
USLS, beampeak to 20° above beampeak, dB 17 22 14 14 15 15
Front-to-Back Total Power at 180° ± 30°, dB 24 23 29 31 32 32
CPR at Boresight, dB 22 24 17 21 20 19
CPR at Sector, dB 17 17 11 13 15 17

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.74 m² | 7.965 ft²
Effective Projective Area (EPA), lateral 0.15 m² | 1.615 ft²
Mechanical Tilt Range 0°–22°
Wind Loading @ Velocity, frontal 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 159.0 N @ 150 km/h (35.7 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 788.0 N @ 150 km/h (177.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 692.0 N @ 150 km/h (155.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 608 mm | 23.937 in
Depth, packed 346 mm | 13.622 in
Length, packed 1542 mm | 60.709 in
Weight, gross 46.5 kg | 102.515 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
