LDX-9014DS-VTM

2-port sector antenna, 2x 790–960 MHz, 90° HPBW, RET compatible

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Engineered to provide wideband capability to support “Digital Dividend” band applications, future ready
Same physical size as existing 800/900 MHz antennas for easy site zoning
Proven core design technology, with over 1,000,000 similar antennas deployed

Specifications

General Specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female

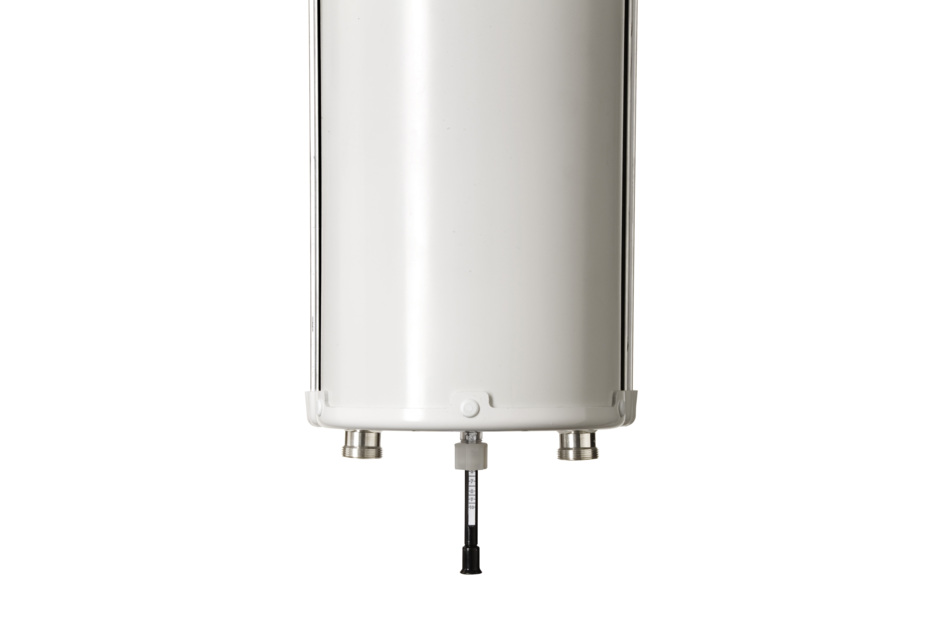

RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Width	225 mm \| 8.858 in
Depth	164 mm \| 6.457 in
Length	2435 mm \| 95.866 in
Net Weight, without mounting kit	18.1 kg \| 39.904 lb

Frequency Band, MHz	790–896	870–960
Gain, dBi	15.9	16.1
Beamwidth, Horizontal, degrees	89	89
Beamwidth, Vertical, degrees	8	7.5
Beam Tilt, degrees	0–8	0–8
USLS (First Lobe), dB	18	18
Front-to-Back Ratio at 180°, dB	34	30
CPR at Boresight, dB	20	20
CPR at Sector, dB	14	14
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port, maximum, watts	300	300

Wind Loading @ Velocity, frontal	526.0 N @ 150 km/h (118.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	493.0 N @ 150 km/h (110.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	782.0 N @ 150 km/h (175.8 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
