NNHH-45B-R4-V1
8-port sector antenna, 4x 698–896 and 4x 1695–2360 MHz, 45° HPBW, 4x RET
Features and Benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (2) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, antenna only | 34.5 kg | 76.059 lb |
Array Layout
| Click on image to enlarge. |

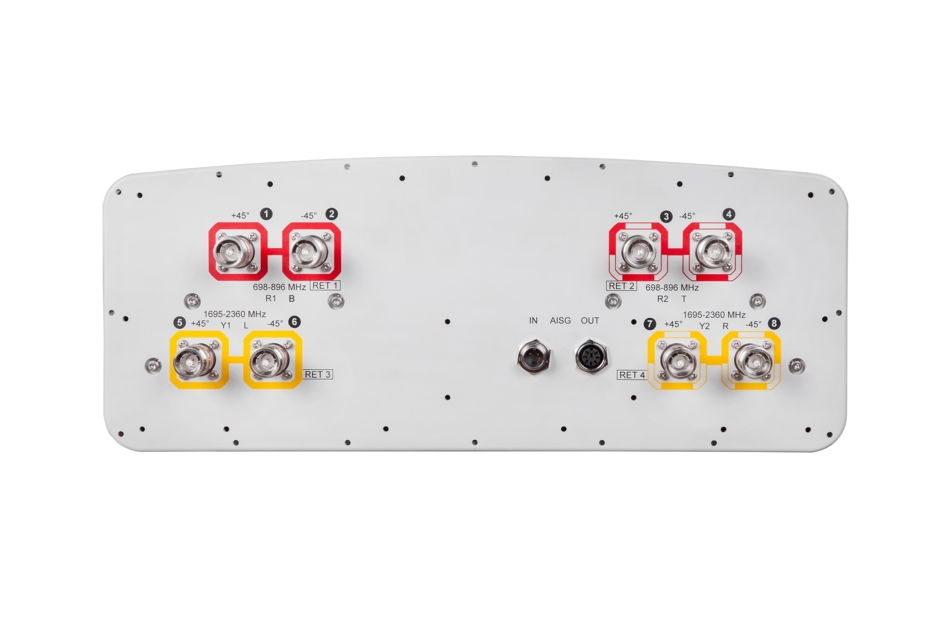

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| RF Port | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 |
| Gain, dBi | 14.0 | 14.9 | 19.4 | 20.0 | 20.5 | 21.0 |
| Beamwidth, Horizontal, degrees | 49 | 42 | 45 | 43 | 41 | 38 |
| Beamwidth, Vertical, degrees | 24.4 | 21.6 | 5.9 | 5.5 | 5.1 | 4.6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 19 | 14 | 15 | 15 | 17 |
| Front-to-Back Ratio at 180°, dB | 32 | 34 | 35 | 37 | 39 | 38 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 300 | 250 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 1.01 m² | 10.872 ft² |
| Effective Projective Area (EPA), lateral | 0.21 m² | 2.260 ft² |
| Wind Loading @ Velocity, frontal | 1,077.0 N @ 150 km/h (242.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 222.0 N @ 150 km/h (49.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,077.0 N @ 150 km/h (242.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 946.0 N @ 150 km/h (212.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 526 mm | 20.709 in |
| Depth, packed | 283 mm | 11.142 in |
| Length, packed | 2015 mm | 79.331 in |
| Weight, gross | 47.4 kg | 104.499 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (2) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, antenna only | 34.5 kg | 76.059 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| RF Port | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 |
| Gain, dBi | 14.0 | 14.9 | 19.4 | 20.0 | 20.5 | 21.0 |
| Beamwidth, Horizontal, degrees | 49 | 42 | 45 | 43 | 41 | 38 |
| Beamwidth, Vertical, degrees | 24.4 | 21.6 | 5.9 | 5.5 | 5.1 | 4.6 |
| Beam Tilt, degrees | 2–18 | 2–18 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 19 | 14 | 15 | 15 | 17 |
| Front-to-Back Ratio at 180°, dB | 32 | 34 | 35 | 37 | 39 | 38 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 300 | 250 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 1.01 m² | 10.872 ft² |
| Effective Projective Area (EPA), lateral | 0.21 m² | 2.260 ft² |
| Wind Loading @ Velocity, frontal | 1,077.0 N @ 150 km/h (242.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 222.0 N @ 150 km/h (49.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,077.0 N @ 150 km/h (242.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 946.0 N @ 150 km/h (212.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 526 mm | 20.709 in |
| Depth, packed | 283 mm | 11.142 in |
| Length, packed | 2015 mm | 79.331 in |
| Weight, gross | 47.4 kg | 104.499 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
Documentation & Downloads
Assembly Drawing
Installation Instruction
Product Information
Product Specification
Warranty
Assembly Drawing
Installation Instruction
Product Compliance Documentation
Product Information
Product Specification
Warranty
