NNHH-65B-R4N17
8-port sector antenna, 4x 694–896 and 4x 1695–2360 MHz, 65° HPBW, 4x RETs
Features and Benefits
- Array configuration provides capability for 4T4R (4x MIMO) on Low band and High band
- Optimized SPR performance across all operating bands
- Excellent wind loading characteristics
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 430 mm | 16.929 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, without mounting kit | 28.4 kg | 62.611 lb |
Array Layout
| Click on image to enlarge. |

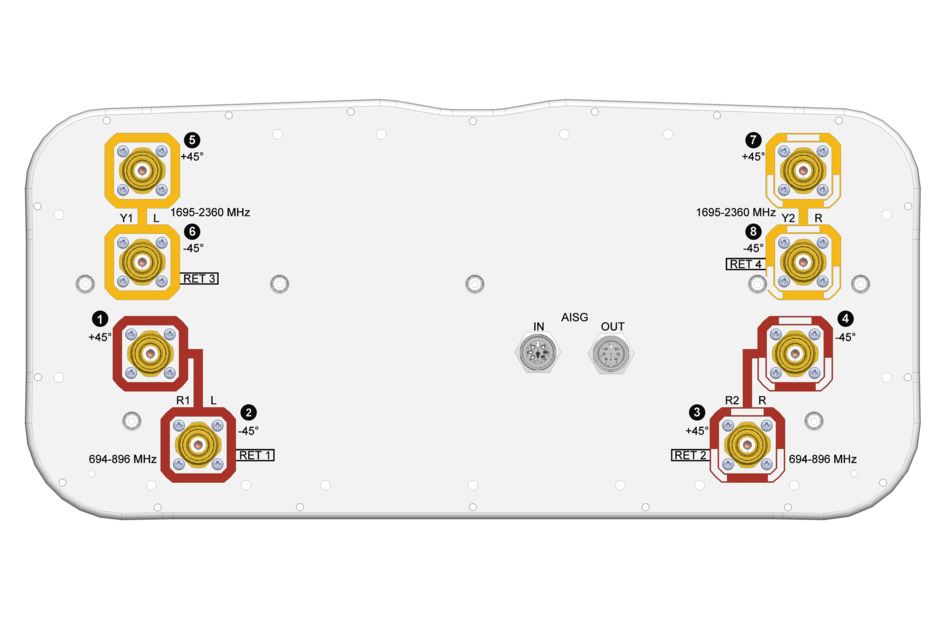

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 694–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain, dBi | 13.9 | 14.6 | 16.6 | 17.2 | 17.6 | 18.2 |
| Beamwidth, Horizontal, degrees | 61 | 57 | 65 | 65 | 63 | 59 |
| Beamwidth, Vertical, degrees | 12.5 | 10.9 | 7 | 6.6 | 6.2 | 5.6 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 21 | 18 | 15 | 14 | 14 | 14 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 32 | 35 | 33 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 694–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 13.4 | 14.3 | 16.0 | 16.7 | 17.0 | 17.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.5 | ±0.8 | ±0.7 | ±0.8 | ±0.6 |
| Beamwidth, Horizontal Tolerance, degrees | ±10.7 | ±6.5 | ±6.7 | ±5.6 | ±6.9 | ±7.5 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±0.9 | ±0.5 | ±0.3 | ±0.5 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 21 | 17 | 11 | 13 | 13 | 13 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 23 | 25 | 28 | 26 | 25 |
| CPR at Boresight, dB | 24 | 24 | 17 | 21 | 21 | 20 |
| CPR at Sector, dB | 9 | 9 | 8 | 9 | 8 | 6 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 471.0 N @ 150 km/h (105.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 241.0 N @ 150 km/h (54.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 762.0 N @ 150 km/h (171.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 444.0 N @ 150 km/h (99.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 530 mm | 20.866 in |
| Depth, packed | 349 mm | 13.740 in |
| Length, packed | 2020 mm | 79.528 in |
| Weight, gross | 41.1 kg | 90.610 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 430 mm | 16.929 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, without mounting kit | 28.4 kg | 62.611 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 694–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain, dBi | 13.9 | 14.6 | 16.6 | 17.2 | 17.6 | 18.2 |
| Beamwidth, Horizontal, degrees | 61 | 57 | 65 | 65 | 63 | 59 |
| Beamwidth, Vertical, degrees | 12.5 | 10.9 | 7 | 6.6 | 6.2 | 5.6 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 21 | 18 | 15 | 14 | 14 | 14 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 32 | 35 | 33 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 694–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 13.4 | 14.3 | 16.0 | 16.7 | 17.0 | 17.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.5 | ±0.8 | ±0.7 | ±0.8 | ±0.6 |
| Beamwidth, Horizontal Tolerance, degrees | ±10.7 | ±6.5 | ±6.7 | ±5.6 | ±6.9 | ±7.5 |
| Beamwidth, Vertical Tolerance, degrees | ±1.1 | ±0.9 | ±0.5 | ±0.3 | ±0.5 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 21 | 17 | 11 | 13 | 13 | 13 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 23 | 25 | 28 | 26 | 25 |
| CPR at Boresight, dB | 24 | 24 | 17 | 21 | 21 | 20 |
| CPR at Sector, dB | 9 | 9 | 8 | 9 | 8 | 6 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 471.0 N @ 150 km/h (105.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 241.0 N @ 150 km/h (54.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 762.0 N @ 150 km/h (171.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 444.0 N @ 150 km/h (99.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 530 mm | 20.866 in |
| Depth, packed | 349 mm | 13.740 in |
| Length, packed | 2020 mm | 79.528 in |
| Weight, gross | 41.1 kg | 90.610 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
