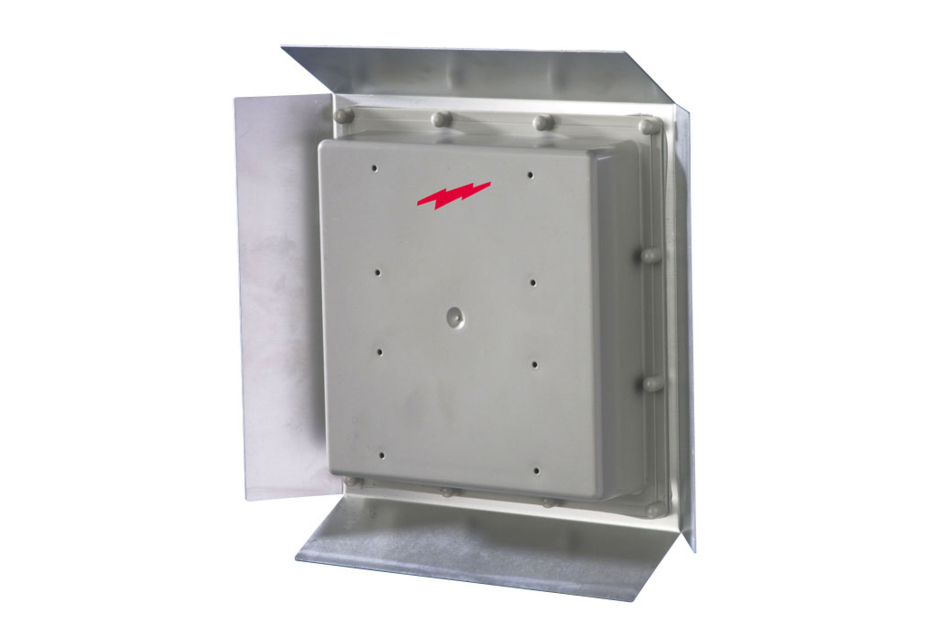

QD-2402

Base Product: BSA-ANT

1-port small cell antenna, 2400–2500 MHz, 27° HPBW, fixed electrical tilt

Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Low profile antenna
  • Small, light weight design provides an easy to install, cost effective solution
  • Single piece radome provides long term mechanical stability
  • Mounts to top of tower, pole, or building
Specifications

General Specifications

Antenna Type Small Cell
Band Single band
Color Off-white
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ABS, UV resistant
Radiator Material Aluminum
RF Connector Interface N Female
RF Connector Location Rear
RF Connector Quantity, high band 1
RF Connector Quantity, total 1

Dimensions

Width 272 mm | 10.709 in
Length 280 mm | 11.024 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 2400 – 2500 MHz
Polarization Vertical

Electrical Specifications

Frequency Band, MHz 2400–2500
Gain, dBi 16.0
Beamwidth, Horizontal, degrees 27
Beamwidth, Vertical, degrees 27
USLS, typical, dB 17
Front-to-Back Ratio at 180°, dB 30
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 3

Packaging and Weights

Net Weight, without mounting kit 0.9 kg | 1.984 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
