RRV4-65A-R6

12-port sector antenna, 4x 694–960 and 8x 1695–2690 MHz, 65° HPBW, 6x RET
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios
Specifications

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote Electrical Tilt (RET) Information, General

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male

Dimensions

Width 498 mm | 19.606 in
Length 1499 mm | 59.016 in
Depth 197 mm | 7.756 in

Array Layout

Click on image to enlarge.

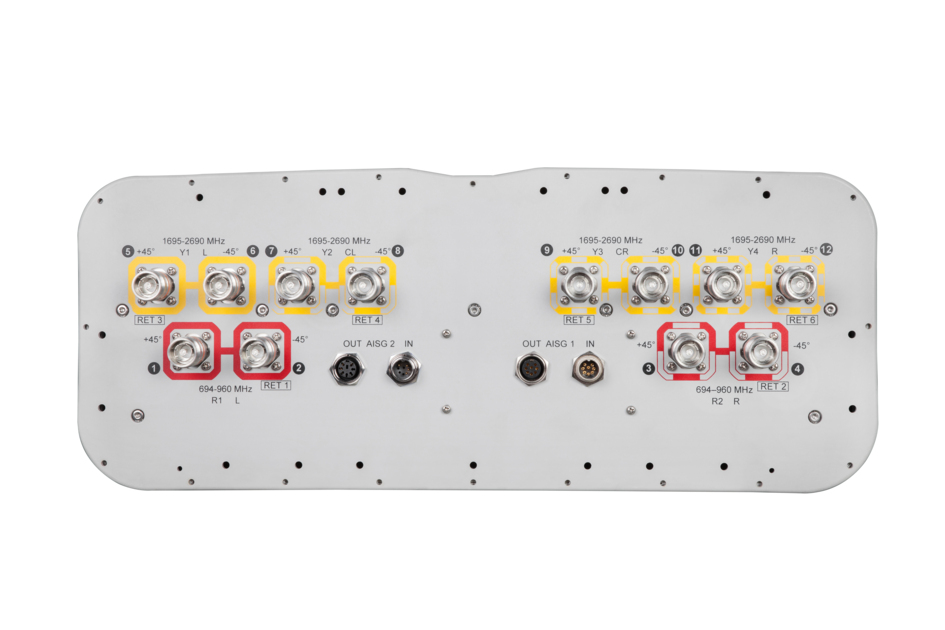

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Remote Electrical Tilt (RET) Information, Electrical

Protocol 3GPP/AISG 2.0 (Single RET)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 13.3 13.7 13.8 16.5 17.7 18.2 18.2
Beamwidth, Horizontal, degrees 70 66 64 70 61 58 58
Beamwidth, Vertical, degrees 17 15.4 14.2 7.3 6.5 5.6 5.3
Beam Tilt, degrees 2–16 2–16 2–16 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 22 21 19 16 18 21 22
Front-to-Back Ratio at 180°, dB 34 31 28 33 33 31 30
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 13.0 13.3 13.6 16.0 17.1 17.8 17.8
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.5 ±0.4 ±0.8 ±0.7 ±0.4 ±0.5
Gain by Beam Tilt, average, dBi 2 ° | 13.1
9 ° | 13.1
16 ° | 12.8
2 ° | 13.4
9 ° | 13.4
16 ° | 13.1
2 ° | 13.7
9 ° | 13.7
16 ° | 13.2
2 ° | 15.7
7 ° | 16.0
12 ° | 15.9
2 ° | 16.9
7 ° | 17.2
12 ° | 17.0
2 ° | 17.5
7 ° | 17.9
12 ° | 17.7
2 ° | 17.3
7 ° | 17.9
12 ° | 17.7
Beamwidth, Horizontal Tolerance, degrees ±6.9 ±4.1 ±4 ±4.5 ±5.8 ±4.2 ±5.6
Beamwidth, Vertical Tolerance, degrees ±1.2 ±1.4 ±1.3 ±0.6 ±0.5 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 14 16 16 16
Front-to-Back Total Power at 180° ± 30°, dB 21 21 21 26 26 26 24
CPR at Boresight, dB 22 21 19 19 21 17 19
CPR at Sector, dB 12 9 12 7 7 7 5

Mechanical Specifications

Wind Loading at Velocity, frontal 123.4 lbf @ 150 km/h | 549.0 N @ 150 km/h
Wind Loading at Velocity, lateral 183.0 N @ 150 km/h | 41.1 lbf @ 150 km/h
Wind Loading at Velocity, maximum 160.1 lbf @ 150 km/h | 712.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 608 mm | 23.937 in
Depth, packed 352 mm | 13.858 in
Length, packed 1682 mm | 66.221 in
Net Weight, without mounting kit 33 kg | 72.752 lb
Weight, gross 45.5 kg | 100.31 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote Electrical Tilt (RET) Information, General

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male

Dimensions

Width 498 mm | 19.606 in
Length 1499 mm | 59.016 in
Depth 197 mm | 7.756 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Remote Electrical Tilt (RET) Information, Electrical

Protocol 3GPP/AISG 2.0 (Single RET)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 13.3 13.7 13.8 16.5 17.7 18.2 18.2
Beamwidth, Horizontal, degrees 70 66 64 70 61 58 58
Beamwidth, Vertical, degrees 17 15.4 14.2 7.3 6.5 5.6 5.3
Beam Tilt, degrees 2–16 2–16 2–16 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 22 21 19 16 18 21 22
Front-to-Back Ratio at 180°, dB 34 31 28 33 33 31 30
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 13.0 13.3 13.6 16.0 17.1 17.8 17.8
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.5 ±0.4 ±0.8 ±0.7 ±0.4 ±0.5
Gain by Beam Tilt, average, dBi 2 ° | 13.1; 9 ° | 13.1;16 ° | 12.8 2 ° | 13.4; 9 ° | 13.4;16 ° | 13.1 2 ° | 13.7; 9 ° | 13.7;16 ° | 13.2 2 ° | 15.7; 7 ° | 16.0;12 ° | 15.9 2 ° | 16.9; 7 ° | 17.2;12 ° | 17.0 2 ° | 17.5; 7 ° | 17.9;12 ° | 17.7 2 ° | 17.3; 7 ° | 17.9;12 ° | 17.7
Beamwidth, Horizontal Tolerance, degrees ±6.9 ±4.1 ±4 ±4.5 ±5.8 ±4.2 ±5.6
Beamwidth, Vertical Tolerance, degrees ±1.2 ±1.4 ±1.3 ±0.6 ±0.5 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 14 16 16 16
Front-to-Back Total Power at 180° ± 30°, dB 21 21 21 26 26 26 24
CPR at Boresight, dB 22 21 19 19 21 17 19
CPR at Sector, dB 12 9 12 7 7 7 5

Mechanical Specifications

Wind Loading at Velocity, frontal 123.4 lbf @ 150 km/h | 549.0 N @ 150 km/h
Wind Loading at Velocity, lateral 183.0 N @ 150 km/h | 41.1 lbf @ 150 km/h
Wind Loading at Velocity, maximum 160.1 lbf @ 150 km/h | 712.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 608 mm | 23.937 in
Depth, packed 352 mm | 13.858 in
Length, packed 1682 mm | 66.221 in
Net Weight, without mounting kit 33 kg | 72.752 lb
Weight, gross 45.5 kg | 100.31 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
