RRVVT4S4-65D-R6

24-port sector antenna, 4x 694–960 and 4x 1695-2690 MHz 65° HPBW, 8x 2300–2690 and 8x 3300-3800MHz, 90° HPBW, 6x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Antenna Includes 1x 4-Column Array for 2300–2690MHz and a separate 1x 4-Column Array for 3300-3800MHz that support 8T8R beamforming operation. Column spacing optimized for Soft Split Beamforming
  • Cluster connectors are used for beamforming 4-column arrays with separate calibration port for each band. Six Internal RET’s provide independent electrical tilt control for each array
  • Antenna includes 2x Single Column X-Pol Arrays for 694-960MHz and 2x Single Column X-Pol Arrays for 1695-2690MHz, suitable for 4x MIMO applications

General Specifications

Antenna Type Sector
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 2
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 20
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 56.8 kg | 125.222 lb

Array Layout

Click on image to enlarge.

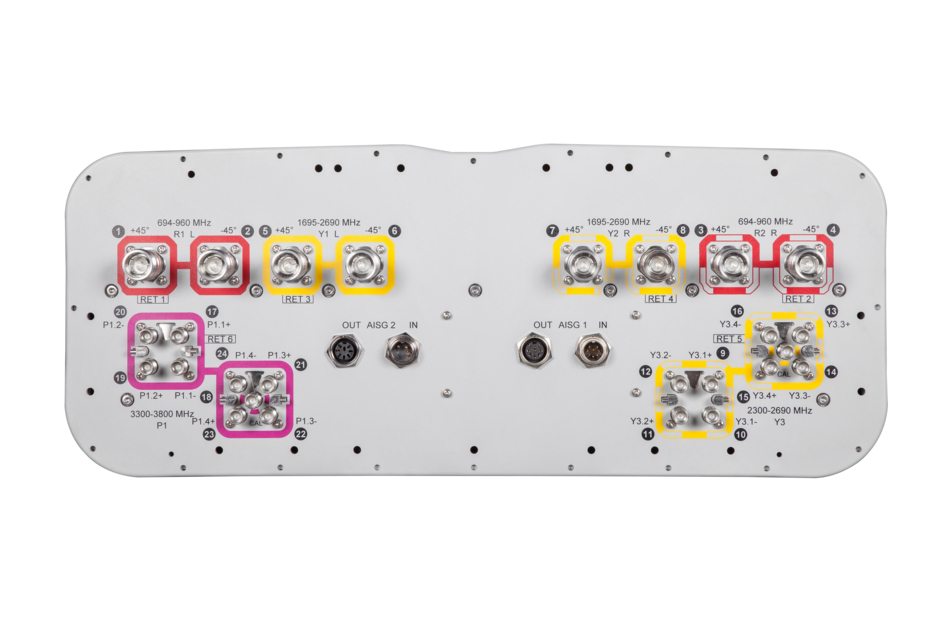

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 2300 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical Specifications

R1-R2 R1-R2 R1-R2 Y1-Y2 Y1-Y2 Y3 P1
Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Gain, dBi 15.8 16.1 16.5 18.3 19.2 16.0 15.9
Beamwidth, Horizontal, degrees 71 65 62 70 60 93 88
Beamwidth, Vertical, degrees 8.9 8 7.3 5.1 4.2 4.9 6.6
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 14 18 21 14 19 18 16
Front-to-Back Ratio at 180°, dB 32 30 29 33 32 32 29
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 9
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -145
Input Power per Port at 50°C, maximum, watts 300 300 300 250 200 150 75

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Gain, dBi 17.5 16.6
Beamwidth, Horizontal, degrees 59 58
Beamwidth, Vertical, degrees 4.9 6.6
USLS (First Lobe), dB 19 16

Electrical Specifications, Service Beam

Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Steered 0° Gain, dBi 20.9 20.5
Steered 0° Beamwidth, Horizontal, degrees 26 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 32 29
Steered 0° Horizontal Sidelobe, dB 12 13
Steered 30° Gain, dBi 20.4 19.8
Steered 30° Beamwidth, Horizontal, degrees 28 27

Electrical Specifications, Soft Split

Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Gain, dBi 20.2 19.7
Beamwidth, Horizontal, degrees 31 30
Front-to-Back Total Power at 180° ± 30°, dB 33 29
Horizontal Sidelobe, dB 19 15

Mechanical Specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 77.8 kg | 171.519 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 2
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 20
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 56.8 kg | 125.222 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 2300 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical Specifications

R1-R2 R1-R2 R1-R2 Y1-Y2 Y1-Y2 Y3 P1
Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Gain, dBi 15.8 16.1 16.5 18.3 19.2 16.0 15.9
Beamwidth, Horizontal, degrees 71 65 62 70 60 93 88
Beamwidth, Vertical, degrees 8.9 8 7.3 5.1 4.2 4.9 6.6
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 14 18 21 14 19 18 16
Front-to-Back Ratio at 180°, dB 32 30 29 33 32 32 29
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 9
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -145
Input Power per Port at 50°C, maximum, watts 300 300 300 250 200 150 75

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Gain, dBi 17.5 16.6
Beamwidth, Horizontal, degrees 59 58
Beamwidth, Vertical, degrees 4.9 6.6
USLS (First Lobe), dB 19 16

Electrical Specifications, Service Beam

Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Steered 0° Gain, dBi 20.9 20.5
Steered 0° Beamwidth, Horizontal, degrees 26 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 32 29
Steered 0° Horizontal Sidelobe, dB 12 13
Steered 30° Gain, dBi 20.4 19.8
Steered 30° Beamwidth, Horizontal, degrees 28 27

Electrical Specifications, Soft Split

Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 2300–2690 3300–3800
Gain, dBi 20.2 19.7
Beamwidth, Horizontal, degrees 31 30
Front-to-Back Total Power at 180° ± 30°, dB 33 29
Horizontal Sidelobe, dB 19 15

Mechanical Specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 77.8 kg | 171.519 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
