RRZZ-33D-R4

8-port multiband sector antenna, 4x 694-960 and 4 x 1427-2690 MHz, 33° HPBW, 4x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Retractable tilt indicator rods
  • Antenna shape optimized for wind load reduction

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 749 mm | 29.488 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 67 kg | 147.710 lb

Array Layout

Click on image to enlarge.

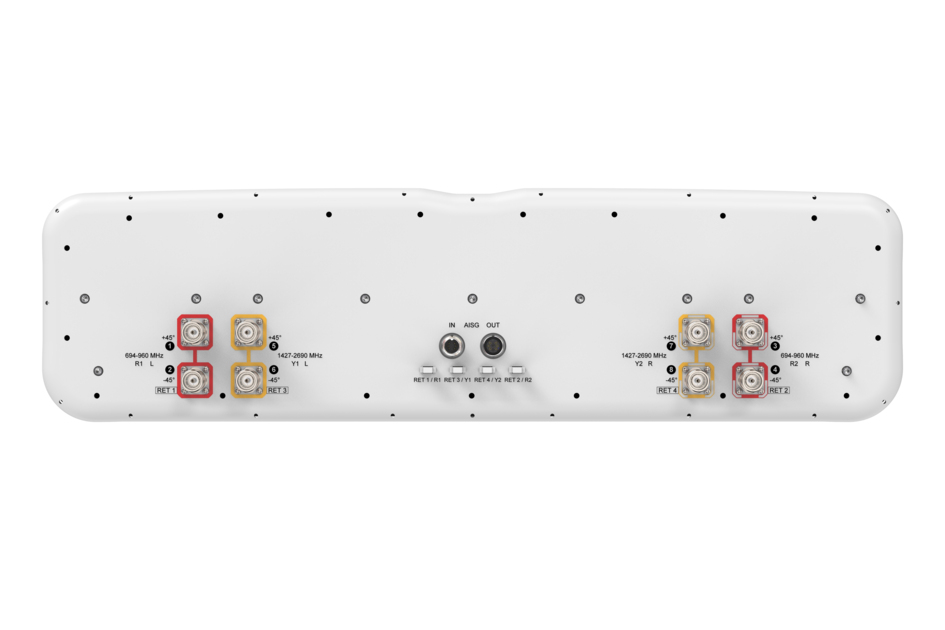

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2490 2490–2690
Gain, dBi 17.4 18.2 18.7 19.2 20.6 21.7 22.3 22.0
Beamwidth, Horizontal, degrees 36 32 30 36 29 26 24 21
Beamwidth, Vertical, degrees 8 7.2 6.6 7.1 5.9 5.3 4.7 4.4
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 15 17 17 19 18 20 21 19
Front-to-Back Ratio at 180°, dB 30 35 36 37 39 40 37 35
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 200 200 200 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2490 2490–2690
Gain by all Beam Tilts, average, dBi 17.0 17.9 18.5 18.9 20.3 21.3 21.9 21.4
Gain by all Beam Tilts Tolerance, dB ±0.8 ±0.4 ±0.4 ±0.6 ±0.6 ±0.6 ±0.5 ±0.6
Beamwidth, Horizontal Tolerance, degrees ±3.4 ±1.7 ±1.6 ±1.6 ±2 ±2.1 ±0.9 ±1.8
Beamwidth, Vertical Tolerance, degrees ±0.5 ±0.4 ±0.2 ±0.3 ±0.4 ±0.3 ±0.2 ±0.3
USLS, beampeak to 20° above beampeak, dB 14 15 16 16 18 20 20 18
Front-to-Back Total Power at 180° ± 30°, dB 22 27 27 31 34 32 32 30
CPR at Boresight, dB 21 21 24 18 20 19 18 18
CPR at 10 dB Horizontal Beamwidth, dB 8 13 10 8 12 10 11 8

Mechanical Specifications

Wind Loading @ Velocity, frontal 2,675.0 N @ 150 km/h (601.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 304.0 N @ 150 km/h (68.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 2,675.0 N @ 150 km/h (601.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 2,675.0 N @ 150 km/h (601.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 910 mm | 35.827 in
Depth, packed 368 mm | 14.488 in
Length, packed 2921 mm | 115.000 in
Weight, gross 93.6 kg | 206.352 lb
Weight, net 67 kg | 147.710 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
