SBNHH-1D65C

6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 65° HPBW, 2x RET. Both high bands share the same electrical tilt.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Interleaved dipole technology providing for attractive, low wind load mechanical package
  • The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum

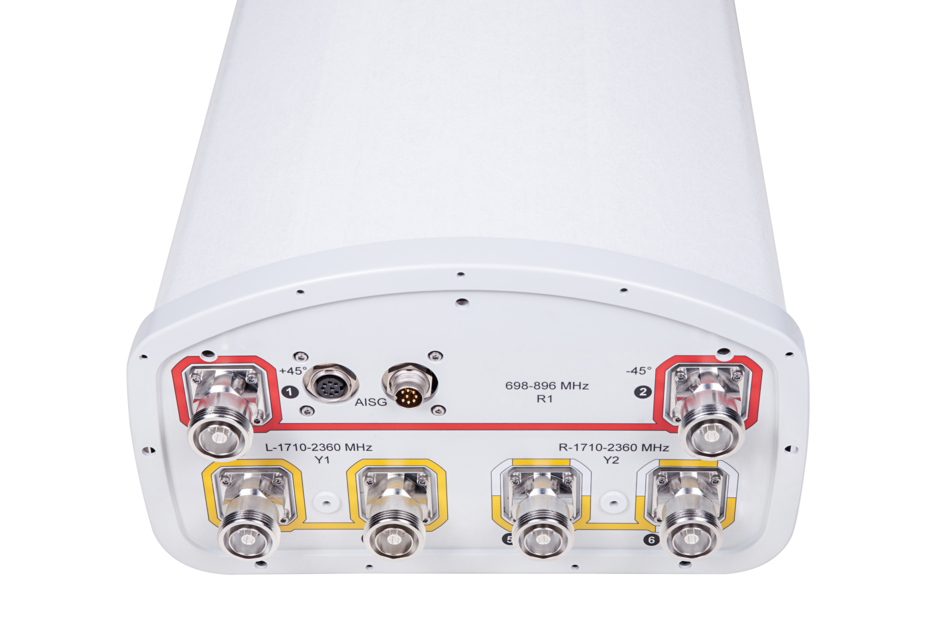

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 301 mm | 11.85 in
Depth 180 mm | 7.087 in
Length 2453 mm | 96.575 in
Net Weight, without mounting kit 22.5 kg | 49.604 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 16.2 16.0 17.7 17.9 18.5 18.5
Beamwidth, Horizontal, degrees 66 64 70 65 63 58
Beamwidth, Vertical, degrees 8.9 7.8 5.7 5.2 5 4.4
Beam Tilt, degrees 0–11 0–11 0–7 0–7 0–7 0–7
USLS (First Lobe), dB 11 12 15 15 15 14
Front-to-Back Ratio at 180°, dB 29 31 27 27 28 27
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 300 300 250

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 15.8 15.6 17.3 17.8 18.2 18.1
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.5 ±0.3 ±0.2 ±0.5 ±0.4
Gain by Beam Tilt, average, dBi 0 ° | 16.0
5 ° | 16.0
11 ° | 15.5
0 ° | 15.8
5 ° | 15.8
11 ° | 15.2
0 ° | 17.3
4 ° | 17.4
7 ° | 17.3
0 ° | 17.7
4 ° | 17.8
7 ° | 17.7
0 ° | 18.0
4 ° | 18.2
7 ° | 18.1
0 ° | 17.9
4 ° | 18.2
7 ° | 18.2
Beamwidth, Horizontal Tolerance, degrees ±1.2 ±1.9 ±3.4 ±3.8 ±4.7 ±3.7
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.3 ±0.2 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 13 14 17 16 17 15
Front-to-Back Total Power at 180° ± 30°, dB 26 24 27 25 25 26
CPR at Boresight, dB 29 22 20 21 19 21
CPR at Sector, dB 14 11 13 11 9 5

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.37 m² | 3.983 ft²
Effective Projective Area (EPA), lateral 0.31 m² | 3.337 ft²
Wind Loading @ Velocity, frontal 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 333.0 N @ 150 km/h (74.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 762.0 N @ 150 km/h (171.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 401.0 N @ 150 km/h (90.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 390 mm | 15.354 in
Depth, packed 296 mm | 11.654 in
Length, packed 2628 mm | 103.465 in
Weight, gross 32.8 kg | 72.312 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 301 mm | 11.85 in
Depth 180 mm | 7.087 in
Length 2453 mm | 96.575 in
Net Weight, without mounting kit 22.5 kg | 49.604 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 16.2 16.0 17.7 17.9 18.5 18.5
Beamwidth, Horizontal, degrees 66 64 70 65 63 58
Beamwidth, Vertical, degrees 8.9 7.8 5.7 5.2 5 4.4
Beam Tilt, degrees 0–11 0–11 0–7 0–7 0–7 0–7
USLS (First Lobe), dB 11 12 15 15 15 14
Front-to-Back Ratio at 180°, dB 29 31 27 27 28 27
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 300 300 250

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 15.8 15.6 17.3 17.8 18.2 18.1
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.5 ±0.3 ±0.2 ±0.5 ±0.4
Gain by Beam Tilt, average, dBi 0 ° | 16.0; 5 ° | 16.0; 11 ° | 15.5 0 ° | 15.8; 5 ° | 15.8; 11 ° | 15.2 0 ° | 17.3; 4 ° | 17.4; 7 ° | 17.3 0 ° | 17.7; 4 ° | 17.8; 7 ° | 17.7 0 ° | 18.0; 4 ° | 18.2; 7 ° | 18.1 0 ° | 17.9; 4 ° | 18.2; 7 ° | 18.2
Beamwidth, Horizontal Tolerance, degrees ±1.2 ±1.9 ±3.4 ±3.8 ±4.7 ±3.7
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.3 ±0.2 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 13 14 17 16 17 15
Front-to-Back Total Power at 180° ± 30°, dB 26 24 27 25 25 26
CPR at Boresight, dB 29 22 20 21 19 21
CPR at Sector, dB 14 11 13 11 9 5

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.37 m² | 3.983 ft²
Effective Projective Area (EPA), lateral 0.31 m² | 3.337 ft²
Wind Loading @ Velocity, frontal 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 333.0 N @ 150 km/h (74.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 762.0 N @ 150 km/h (171.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 401.0 N @ 150 km/h (90.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 390 mm | 15.354 in
Depth, packed 296 mm | 11.654 in
Length, packed 2628 mm | 103.465 in
Weight, gross 32.8 kg | 72.312 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
