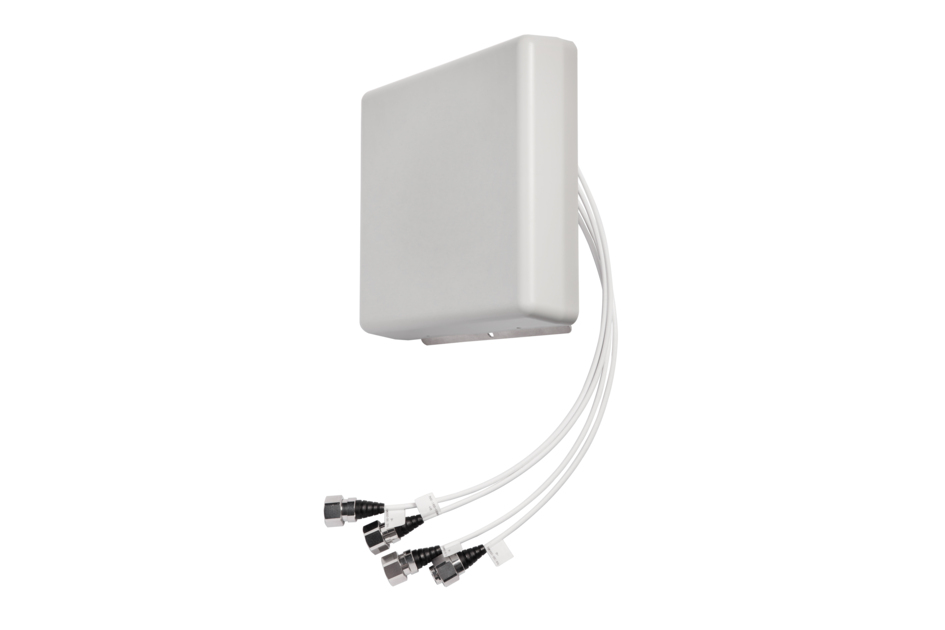

VV-65T-F-V2
4-port small cell antenna, 1695-2690 MHz, 65° HPBW, fixed electrical tilt, 0.5m pigtails, no mount provided
Specifications
Specifications
General Specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 4.3-10 Male |
| RF Connector Location | End of flexible lead |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, without mounting kit | 1.1 kg | 2.425 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 10.1 | 10.8 | 11.1 | 11.5 |
| Beamwidth, Horizontal, degrees | 78 | 70 | 69 | 65 |
| Beamwidth, Vertical, degrees | 41.9 | 37.9 | 33.2 | 31.1 |
| Beam Tilt, degrees | 4 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 18 | 16 | 11 | 10 |
| Front-to-Back Ratio at 180°, dB | 28 | 31 | 31 | 33 |
| Isolation, Cross Polarization, dB | 22 | 22 | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -150 |
| Input Power per Port, maximum, watts | 50 | 50 | 50 | 50 |
| Input Power per Port at 50°C, maximum, watts | 50 | 50 | 50 | 50 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 9.8 | 10.6 | 10.9 | 11.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.6 | ±0.5 | ±0.3 | ±0.2 |
| Beamwidth, Horizontal Tolerance, degrees | ±5.8 | ±5.4 | ±2.4 | ±2.8 |
| Beamwidth, Vertical Tolerance, degrees | ±1.5 | ±3.4 | ±1.4 | ±1.2 |
| Front-to-Back Total Power at 180° ± 30°, dB | 20 | 23 | 27 | 25 |
| CPR at Boresight, dB | 24 | 22 | 22 | 24 |
| CPR at Sector, dB | 11 | 12 | 10 | 11 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 43.4 N @ 150 km/h (9.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 9.5 N @ 150 km/h (2.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 0.5 N @ 150 km/h (0.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 44.5 N @ 150 km/h (10.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 215 mm | 8.465 in |
| Depth, packed | 95 mm | 3.74 in |
| Length, packed | 210 mm | 8.268 in |
| Weight, gross | 1.3 kg | 2.866 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General Specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 4.3-10 Male |
| RF Connector Location | End of flexible lead |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, without mounting kit | 1.1 kg | 2.425 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 10.1 | 10.8 | 11.1 | 11.5 |
| Beamwidth, Horizontal, degrees | 78 | 70 | 69 | 65 |
| Beamwidth, Vertical, degrees | 41.9 | 37.9 | 33.2 | 31.1 |
| Beam Tilt, degrees | 4 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 18 | 16 | 11 | 10 |
| Front-to-Back Ratio at 180°, dB | 28 | 31 | 31 | 33 |
| Isolation, Cross Polarization, dB | 22 | 22 | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -150 |
| Input Power per Port, maximum, watts | 50 | 50 | 50 | 50 |
| Input Power per Port at 50°C, maximum, watts | 50 | 50 | 50 | 50 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 9.8 | 10.6 | 10.9 | 11.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.6 | ±0.5 | ±0.3 | ±0.2 |
| Beamwidth, Horizontal Tolerance, degrees | ±5.8 | ±5.4 | ±2.4 | ±2.8 |
| Beamwidth, Vertical Tolerance, degrees | ±1.5 | ±3.4 | ±1.4 | ±1.2 |
| Front-to-Back Total Power at 180° ± 30°, dB | 20 | 23 | 27 | 25 |
| CPR at Boresight, dB | 24 | 22 | 22 | 24 |
| CPR at Sector, dB | 11 | 12 | 10 | 11 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 43.4 N @ 150 km/h (9.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 9.5 N @ 150 km/h (2.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 0.5 N @ 150 km/h (0.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 44.5 N @ 150 km/h (10.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 215 mm | 8.465 in |
| Depth, packed | 95 mm | 3.74 in |
| Length, packed | 210 mm | 8.268 in |
| Weight, gross | 1.3 kg | 2.866 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
