EWP43

Base Product: PREMIUM-ELLIPTICAL-WAVEGUIDE

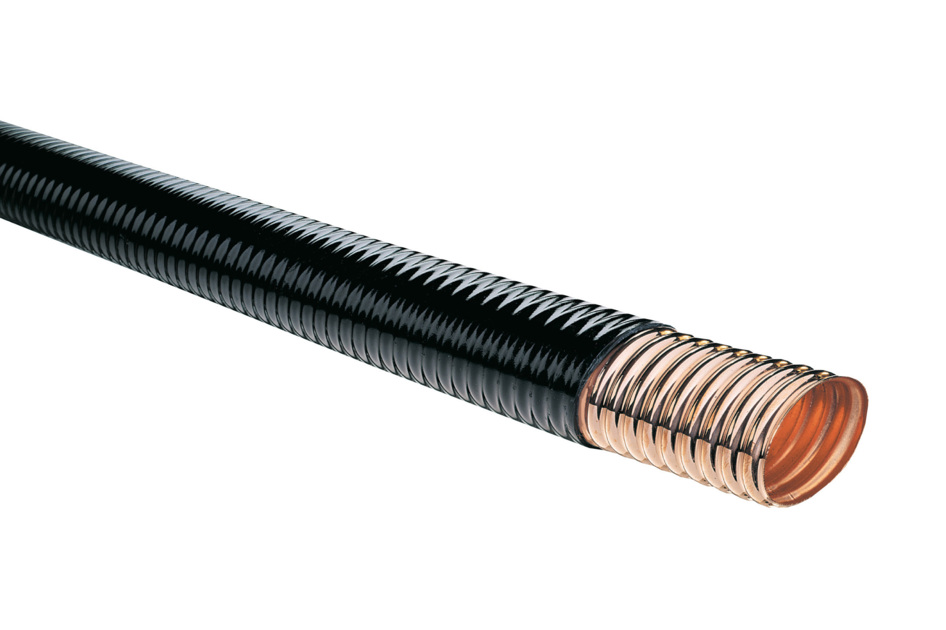

EWP43, HELIAX® Premium Elliptical Waveguide, 4.4–5.0 GHz, black PE jacket

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Premium elliptical waveguide
Product Brand HELIAX®
Product Series Premium

General Specifications

Jacket Color Black
Performance Note Values typical, unless otherwise stated

Dimensions

Diameter Over Jacket (E Plane) 71 mm | 2.795 in
Diameter Over Jacket (H Plane) 41 mm | 1.614 in
Cable Volume 1690 L/km | 18.191 ft³/kft

Electrical Specifications

eTE11 Mode Cutoff 2.78 GHz
Group Delay at Frequency 128 ns/100 ft @ 4.600 GHz | 419 ns/100 m @ 4.600 GHz
Operating Frequency Band 4.4 – 5.0 GHz

Attenuation

Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft) Average Power (kW) Group Velocity %
4.4 GHz 2.983 0.909 9.52 77.50
4.5 GHz 2.948 0.899 9.63 78.60
4.6 GHz 2.917 0.889 9.73 79.70
4.7 GHz 2.889 0.881 9.83 80.60
4.8 GHz 2.864 0.873 9.91 81.50
4.9 GHz 2.842 0.866 9.99 82.30
5.0 GHz 2.822 0.860 10.06 83.10

Return Loss/VSWR

Frequency Band VSWR Return Loss (dB)
4.4–5.0 GHz 1.070 29.42

Material Specifications

Conductor Material Corrugated copper
Jacket Material PE

Mechanical Specifications

Minimum Bend Radius, Multiple Bends (E Plane) 381 mm | 15 in
Minimum Bend Radius, Multiple Bends (H Plane) 1016 mm | 40 in
Minimum Bend Radius, Single Bend (E Plane) 280 mm | 11.024 in
Minimum Bend Radius, Single Bend (H Plane) 711 mm | 27.992 in
Maximum Twist 1.64 °/m | 0.5 °/ft

Environmental Specifications

Installation temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -70 °C to +85 °C (-94 °F to +185 °F)
Attenuation, Ambient Temperature 23.889 °C | 75 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Temperature Rise 42 °F | 107.6 °F

Packaging and Weights

Cable weight 1.2 kg/m | 0.806 lb/ft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
