760221276 | HTC-144SM-DT-412-418-APVA

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

PowerShift Metro® Hybrid Cable with aluminum armor, 4X12AWG Power Conductors, 144-fiber

Specifications
Finish making your selections or clear them to view relevant specifications.
Find a Partner

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Hybrid cable, copper and fiber
Product Brand PowerShift Metro®

General Specifications

Application Power and Fiber Distribution Cable
Cable Type Wireless feeder
Conductors, quantity 4
Construction Type Shielded
Fiber Short Description RFF – 12AWG
Fiber Type, quantity 144
Fibers per Subunit, quantity 12
Inner Shield (Tape) Material Corrugated aluminum
Jacket Color Black with red stripe – power indicator
Strength Members Glass reinforced plastic rod
Subunit, quantity 12
Total Fiber Count 144
Water Blocking Method Water blocking tape(s) | Water blocking threads

Dimensions

Buffer Tube/Subunit Diameter 2.54 mm | 0.1 in
Diameter Over Jacket 23.419 mm | 0.922 in
Conductor Gauge 12 AWG

Electrical Specifications

dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
dc Resistance, maximum 5.413 ohms/km | 1.65 ohms/kft
Electrical Safety Standard UL 1277, Type TC-ER-OF

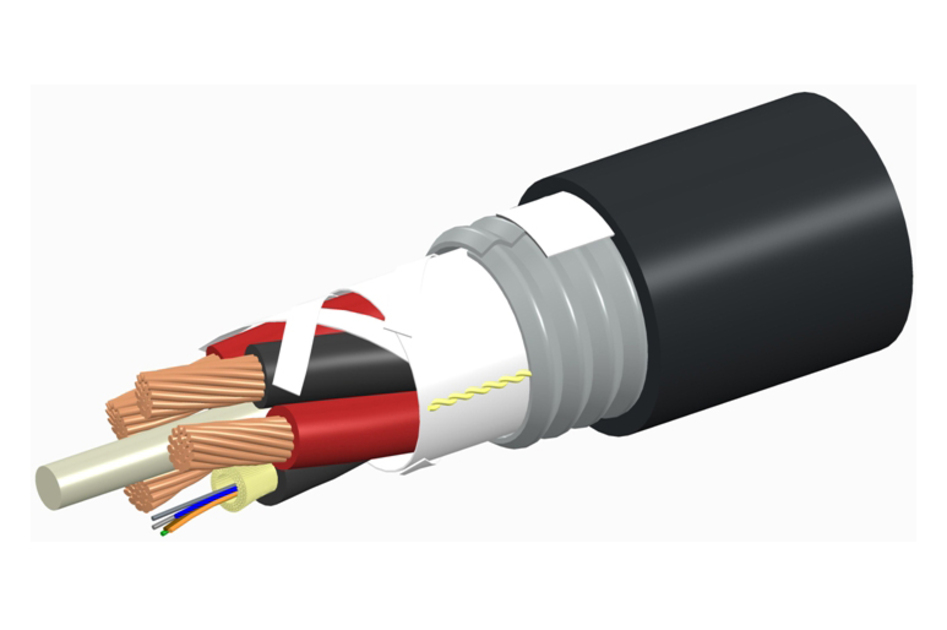

Representative Image

Click on image to enlarge.

Material Specifications

Ripcord Material Para-aramid synthetic fiber

Mechanical Specifications

Minimum Bend Radius, multiple bends, loaded 436.88 mm | 17.2 in
Minimum Bend Radius, multiple bends, unloaded 279.400 mm | 11 in
Minimum Bend Radius, single bend, unloaded 279.400 mm | 11 in
Tensile Load, long term, maximum 800.68 N | 180 lbf
Tensile Load, short term, maximum 2668.932 N | 600 lbf
Compression 2.25 kg/mm | 126 lb/in
Compression Test Method FOTP-41
Flex 25 cycles
Flex Test Method FOTP-104
Impact 2.942 N-m | 2.17 ft lb
Impact Test Method FOTP-25
Twist 10 cycles
Twist Test Method FOTP-85

Optical Specifications

Fiber Type G.652.D and G.657.A1

Environmental Specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Cable Qualification Standards ANSI/ICEA S-87-640 | Telcordia GR-20 | Telcordia GR-3173 | Telcordia GR-421 | UL 1277
Environmental Space Wireless installation
Jacket UV Resistance UV stabilized

Packaging and Weights

Cable weight 619.076 kg/km | 416 lb/kft
