PWRT-208-LI

  • Available in:
  • North America

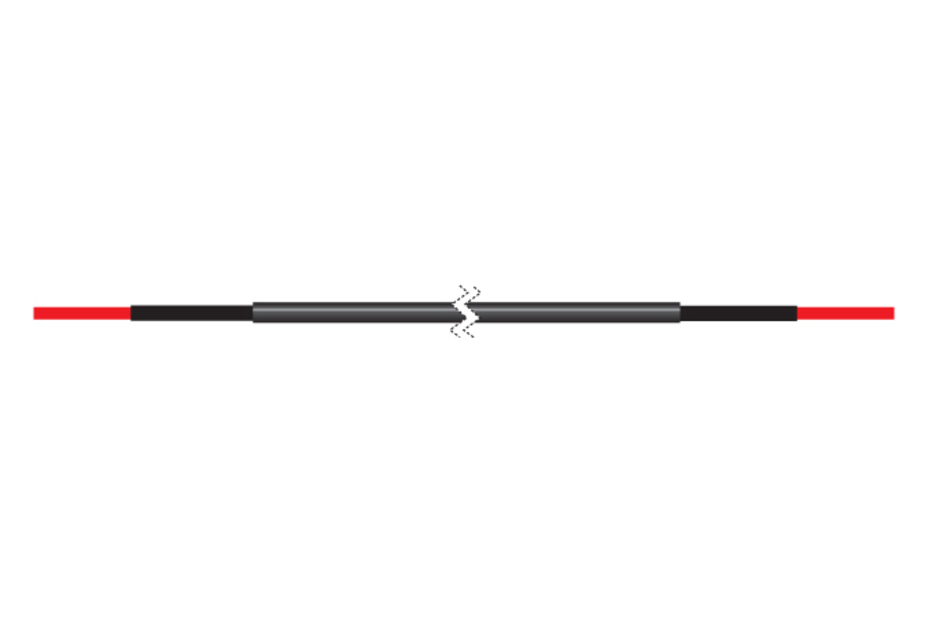

HELIAX® Remote Radio Head Power Cable, 2 conductor with shield, 8 AWG (8.37 mm2)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Power cable
Product Brand HELIAX®
Product Series PWRT
Ordering Note CommScope® non-standard product

General Specifications

Cable Type Power
Conductor Type, singles Stranded
Conductors, quantity 2
Construction Type Discrete power cable | Non-armored
Jacket Color Black
Jacket Color, singles Red
Supported Application Industrial

Dimensions

Diameter Over Conductor, singles, specific 0.1420 in per 19 strands | 0.1420 in per 19 strands | 0.1570 in per 168 strands | 1.55 mm per 30 strands
Diameter Over Dielectric 6.147 mm | 0.242 in
Diameter Over Jacket, nominal 11.506 mm | 0.453 in
Diameter Over Jacket, maximum 11.684 mm | 0.46 in
Diameter Over Shield (Braid) 8.89 mm | 0.35 in
Jacket Thickness 1.194 mm | 0.047 in
Conductor Gauge, singles 8 AWG
Outer Shield (Braid) Gauge 36 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

Conductor dc Resistance 2.231 ohms/km | 0.68 ohms/kft
Conductor dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
Safety Voltage Rating 600 V

Material Specifications

Dielectric Material PVC
Ground Wire Material Tinned copper
Insulation Material, singles PVC
Jacket Material PVC
Outer Shield (Braid) Coverage 65 %
Outer Shield (Braid) Material Tinned copper
Outer Shield (Tape) Material Aluminum/Poly, non-bonded

Environmental Specifications

Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Environmental Space UV resistant for outdoor and/or direct burial installations
Safety Standard NEC Article 336 (Type TC)

Packaging and Weights

Cable weight 312.514 kg/km | 210 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Power cable
Product Brand HELIAX®
Product Series PWRT
Ordering Note CommScope® non-standard product

General Specifications

Cable Type Power
Conductor Type, singles Stranded
Conductors, quantity 2
Construction Type Discrete power cable | Non-armored
Jacket Color Black
Jacket Color, singles Red
Supported Application Industrial

Dimensions

Diameter Over Conductor, singles, specific 0.1420 in per 19 strands | 0.1420 in per 19 strands | 0.1570 in per 168 strands | 1.55 mm per 30 strands
Diameter Over Dielectric 6.147 mm | 0.242 in
Diameter Over Jacket, nominal 11.506 mm | 0.453 in
Diameter Over Jacket, maximum 11.684 mm | 0.46 in
Diameter Over Shield (Braid) 8.89 mm | 0.35 in
Jacket Thickness 1.194 mm | 0.047 in
Conductor Gauge, singles 8 AWG
Outer Shield (Braid) Gauge 36 AWG

Electrical Specifications

Conductor dc Resistance 2.231 ohms/km | 0.68 ohms/kft
Conductor dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
Safety Voltage Rating 600 V

Material Specifications

Dielectric Material PVC
Ground Wire Material Tinned copper
Insulation Material, singles PVC
Jacket Material PVC
Outer Shield (Braid) Coverage 65 %
Outer Shield (Braid) Material Tinned copper
Outer Shield (Tape) Material Aluminum/Poly, non-bonded

Environmental Specifications

Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Environmental Space UV resistant for outdoor and/or direct burial installations
Safety Standard NEC Article 336 (Type TC)

Packaging and Weights

Cable weight 312.514 kg/km | 210 lb/kft
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
