PWRT-208-S

  • Available in:
  • North America

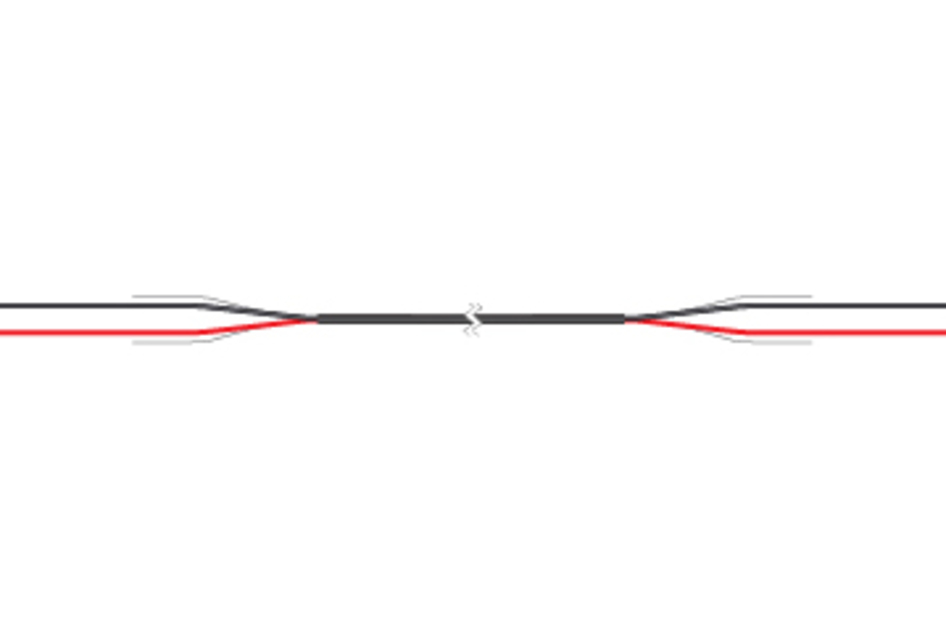

HELIAX® Remote Radio Head Power Cable, 2 conductor with shield, 8 AWG (8.37 mm2), one Red Conductor and one Black Conductor

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Power cable
Product Brand HELIAX®
Product Series PWRT
Ordering Note CommScope® non-standard product

General Specifications

Cable Type Power
Conductor Type, singles Stranded
Conductors, quantity 2
Construction Type Discrete power cable | Non-armored
Ground Wire Type Stranded
Jacket Color Black
Jacket Color, singles Black | Red
Supported Application Industrial

Dimensions

Diameter Over Conductor, singles, specific 0.1570 in per 168 strands
Diameter Over Dielectric 6.147 mm | 0.242 in
Diameter Over Drain Wire, specific 2.5700 in per 7 strands
Diameter Over Ground Wire 3.2 mm | 0.126 in
Diameter Over Jacket, nominal 16.154 mm | 0.636 in
Diameter Over Jacket, maximum 16.434 mm | 0.647 in
Diameter Over Shield (Braid) 11.938 mm | 0.47 in
Jacket Thickness 1.143 mm | 0.045 in
Conductor Gauge, singles 8 AWG
Drain Wire Gauge 12 AWG
Ground Wire Gauge 10 AWG
Outer Shield (Braid) Gauge 36 AWG

Cross Section Drawing

Click on image to enlarge.

Electrical Specifications

Conductor dc Resistance 2.198 ohms/km | 0.67 ohms/kft
Conductor dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
Safety Voltage Rating 600 V

Material Specifications

Conductor Material Tinned copper
Dielectric Material PVC
Drain Wire Material Tinned copper
Filler Material Polypropylene
Ground Wire Material Tinned copper
Insulation Material, singles PVC
Jacket Material PVC
Outer Shield (Braid) Coverage 65 %
Outer Shield (Braid) Material Tinned copper
Outer Shield (Tape) Material Aluminum/Poly, non-bonded

Environmental Specifications

Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Environmental Space UV resistant for outdoor and/or direct burial installations
Safety Standard NEC Article 336 (Type TC)

Packaging and Weights

Cable weight 431.568 kg/km | 290 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability North America
Portfolio CommScope®
Product Type Power cable
Product Brand HELIAX®
Product Series PWRT
Ordering Note CommScope® non-standard product

General Specifications

Cable Type Power
Conductor Type, singles Stranded
Conductors, quantity 2
Construction Type Discrete power cable | Non-armored
Ground Wire Type Stranded
Jacket Color Black
Jacket Color, singles Black | Red
Supported Application Industrial

Dimensions

Diameter Over Conductor, singles, specific 0.1570 in per 168 strands
Diameter Over Dielectric 6.147 mm | 0.242 in
Diameter Over Drain Wire, specific 2.5700 in per 7 strands
Diameter Over Ground Wire 3.2 mm | 0.126 in
Diameter Over Jacket, nominal 16.154 mm | 0.636 in
Diameter Over Jacket, maximum 16.434 mm | 0.647 in
Diameter Over Shield (Braid) 11.938 mm | 0.47 in
Jacket Thickness 1.143 mm | 0.045 in
Conductor Gauge, singles 8 AWG
Drain Wire Gauge 12 AWG
Ground Wire Gauge 10 AWG
Outer Shield (Braid) Gauge 36 AWG

Electrical Specifications

Conductor dc Resistance 2.198 ohms/km | 0.67 ohms/kft
Conductor dc Resistance Note Maximum value based on a standard condition of 20 °C (68 °F)
Safety Voltage Rating 600 V

Material Specifications

Conductor Material Tinned copper
Dielectric Material PVC
Drain Wire Material Tinned copper
Filler Material Polypropylene
Ground Wire Material Tinned copper
Insulation Material, singles PVC
Jacket Material PVC
Outer Shield (Braid) Coverage 65 %
Outer Shield (Braid) Material Tinned copper
Outer Shield (Tape) Material Aluminum/Poly, non-bonded

Environmental Specifications

Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Environmental Space UV resistant for outdoor and/or direct burial installations
Safety Standard NEC Article 336 (Type TC)

Packaging and Weights

Cable weight 431.568 kg/km | 290 lb/kft
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
