7761306-00 | DCM AF 7524L

  • Available in:
  • EMEA

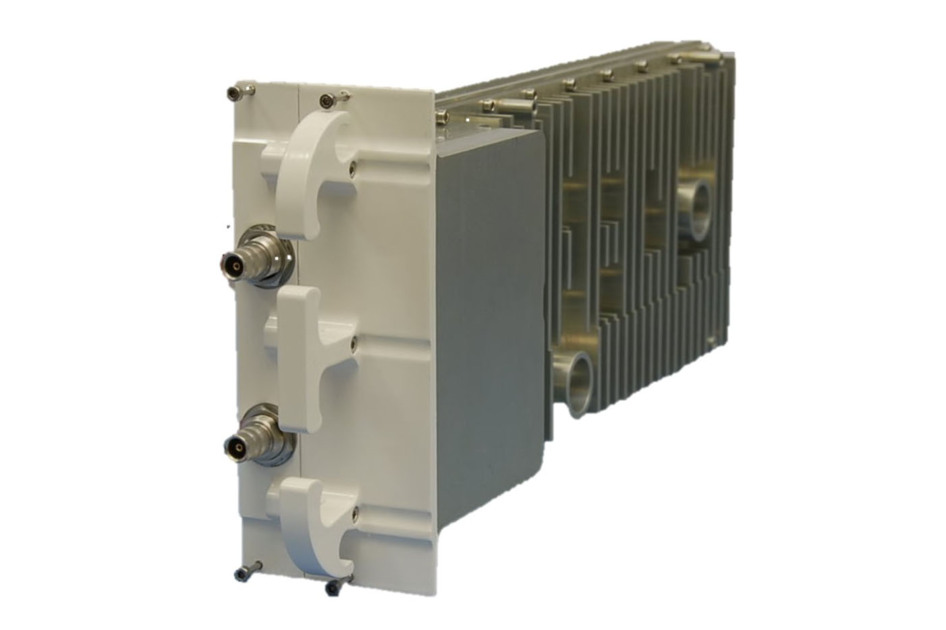

Node A+/ Node AM Digital Channel Module (DCM) medium power for LTE 700

Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability EMEA
Product Type RF repeater unit

Electrical Specifications

Electrical Safety Standard EN 62368-1
Gain 80 dB
Gain Adjustment Range 30 dB
License Band LTE 700
Power Consumption 70 W
Electrical Compliance EN 301908-15

Electrical Specifications, Rx (Uplink)

Operating Frequency Band 703 – 733 MHz
Output Power @ One Carrier 27 dBm
Output Power @ Two Carriers 24 dBm

Electrical Specifications, Tx (Downlink)

Operating Frequency Band 758 – 788 MHz
Output Power @ One Carrier 24 dBm
Output Power @ Two Carriers 21 dBm

Environmental Specifications

Operating Temperature -33 °C to +55 °C (-27.4 °F to +131 °F)
Ingress Protection Test Method IEC 60529:2001, IP65

Packaging and Weights

Weight, net 3 kg | 6.614 lb
