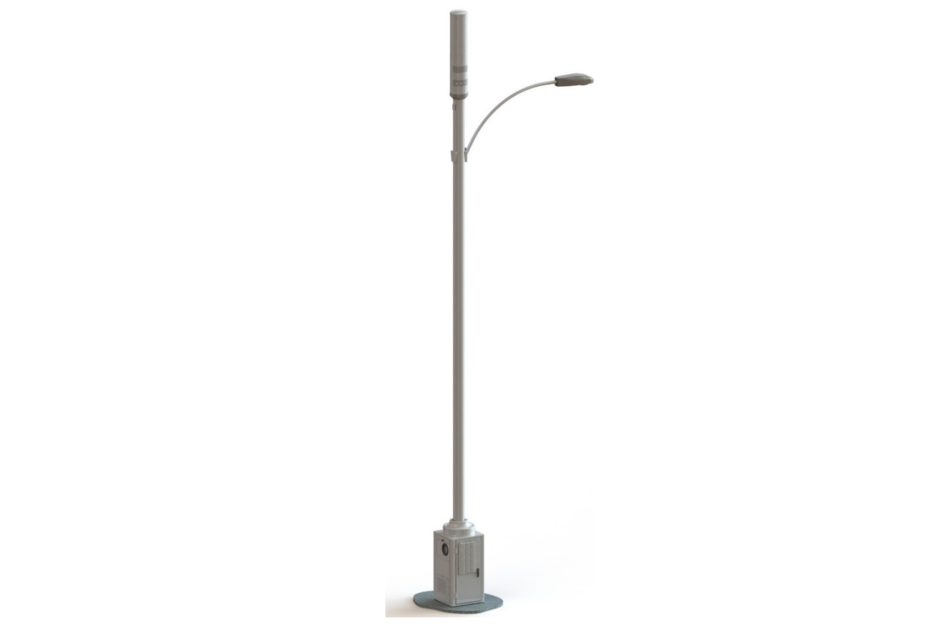

760240957 | 30" Pole Cab with Round Shaft

Bottom of the Pole, 30in Square 4G/5G capable Concealment Enclosure to house and conceal multiple low to high power radios and any other wireless infrastructure equipment in a cabinet at the base of the pole.

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of 760240957 | 30" Pole Cab with Round Shaft by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Radio Compatibility Antenna Mounting Enclosure Color Pole Shaft AGL (Above Ground Level) Power Option Additional Concealment Option

Part Number	Radio Compatibility	Antenna Mounting	Enclosure Color	Pole Shaft AGL (Above Ground Level)	Power Option	Additional Concealment Option
No configured items found.

Features and Benefits

Available with Pole Top concealment, mmWave 5G mounting, luminaire arms.

Available After Market Kits -- ordered separately:
- 860665491-AMK-001 - Ericsson 4480/4415/8863 Radios & 6304 PSU Mounting Kit

Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
Flexible configuration accepts low to high-power single or dual band radios, Integrated AC load center/OVP and Disconnect and integrated AC/DC rectifier options

Specifications

Product Classification

Product Type	Pole cab
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| Umbra Grey (RAL 7022)
Compatible Foundation Type	Poured Concrete \| Pre-Cast Concrete
Compatible Smart Devices	Cameras \| Digital Signage \| Emergency Call Station \| Environmental Monitoring \| Security Lighting \| WIFI
Cooling	Fan Cooling
Power Supply Compatibility	6302 \| 6304 \| 6308 \| ABB CC1600 \| DELTA 2.0 \| PSU-AC-08
Radio Compatibility, Ericsson	1281 \| 220x \| 440x \| 4415 \| 4426 \| 4449 \| 4478 \| 4480 \| 4490 \| 4890 \| 6701 \| 8843 \| 8863 \| Diplexer
Radio Compatibility, Nokia	(2) Airscale dual band radios (160W or 320W and (2) Delta 1kW rectifiers (base) \| AHFIA \| AHFIB \| AHLBBA \| Diplexer
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| AT1K0X \| Diplexer \| RF4402D-D1A \| RFV01U-D1A \| RFV01U-D2A \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Height Note	4 ft tall Equipment Cabinet Base
Pole Height Options	6.096 m \| 20 ft \| 7.62 m \| 25 ft \| 9.144 m \| 30 ft \| 10.668 m \| 35 ft \| 12.192 m \| 40 ft
Width	762.000 mm \| 30 in
Depth	762 mm \| 30 in
Depth Note	Square
Pole Diameter	203.2 mm \| 8 in

Electrical Specifications

Input Voltage	230–115 Vac
Generator Connection	No connection
Power/Fiber Input	AC load center with OVP and disconnect

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Steel

Environmental Specifications

Thermal Compliance

GR-487
