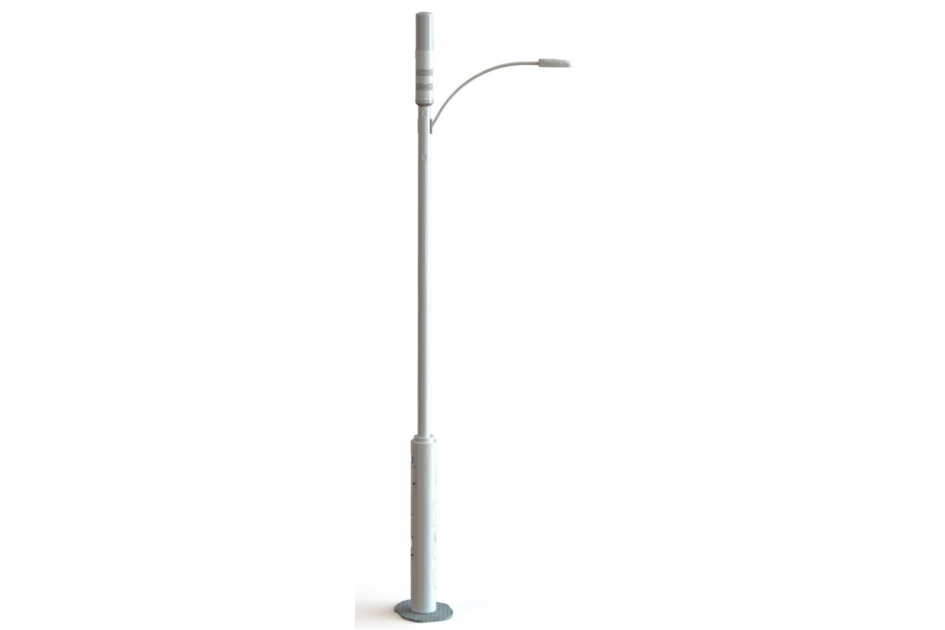

760239946 | 18" Pole Base 4G/5G, Round

Round 18 inch diameter, Integrated Pole Base Concealment Pole for 4G/5G deployments, to house and conceal multiple radios and any other wireless infrastructure equipment in the base of the pole.

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of 760239946 | 18" Pole Base 4G/5G, Round by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Radio Compatibility Antenna Mounting Enclosure Color Pole Shaft AGL (Above Ground Level) Power Option Additional Concealment Option

Part Number	Radio Compatibility	Antenna Mounting	Enclosure Color	Pole Shaft AGL (Above Ground Level)	Power Option	Additional Concealment Option
No configured items found.

Features and Benefits

Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
Includes everything needed for a low to mid power 4G/5G outdoor small cell site
Base of 18in diameter accepts low power radios or mid-power dual band radios
Concealment integrates AC load load center/OVP and disconnect

Specifications

Product Classification

Product Type	Integrated pole
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antenna Compatibility, CommScope	CommScope Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| Umbra Grey (RAL 7022) \| White (RAL 9010)
Compatible Smart Devices	Cameras \| Digital Signage \| Emergency Call Station \| Environmental Monitoring \| Security Lighting \| WIFI
Cooling	Fan Cooling
Power Supply Compatibility	ABB CC1600 \| DELTA 2.0 \| PSU-AC-08
Radio Compatibility, Ericsson	(3) 2205/2208 (Pole Top) \| (6) 2203/2205/2208 radios \| 1281 \| 220x \| 440x \| 4415 \| 4426 \| 4478 \| 6701 \| 6705 \| Diplexer \| Power Distribution
Radio Compatibility, Nokia	(1) Airscale Dual Band 160W + (2) AirScale micro radios \| (1) Airscale Dual Band 320W \| (2) Airscale micro radios – LAA & CBRS (Pole Top) \| (4) Airscale micro radios (Base) \| AHFIA \| AHIA \| AHIB \| AZRB \| Diplexer \| Power Distribution
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| DELTA 2.0 \| Diplexer \| Power Distribution \| RF4402D-D1A \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Height	3048.000 mm \| 120 in
Height Note	10 ft tall Equipment Base
Pole Height Options	6.096 m \| 20 ft \| 7.62 m \| 25 ft \| 9.144 m \| 30 ft \| 10.668 m \| 35 ft \| 12.192 m \| 40 ft
Width	457.200 mm \| 18 in
Depth	457.2 mm \| 18 in
Depth Note	Round
Pole Diameter	203.2 mm \| 8 in

Electrical Specifications

Power/Fiber Input

AC load center with OVP and disconnect

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Steel

Environmental Specifications

Thermal Compliance

GR-487
