760252888 | 4G and 5G C-Band Concealment

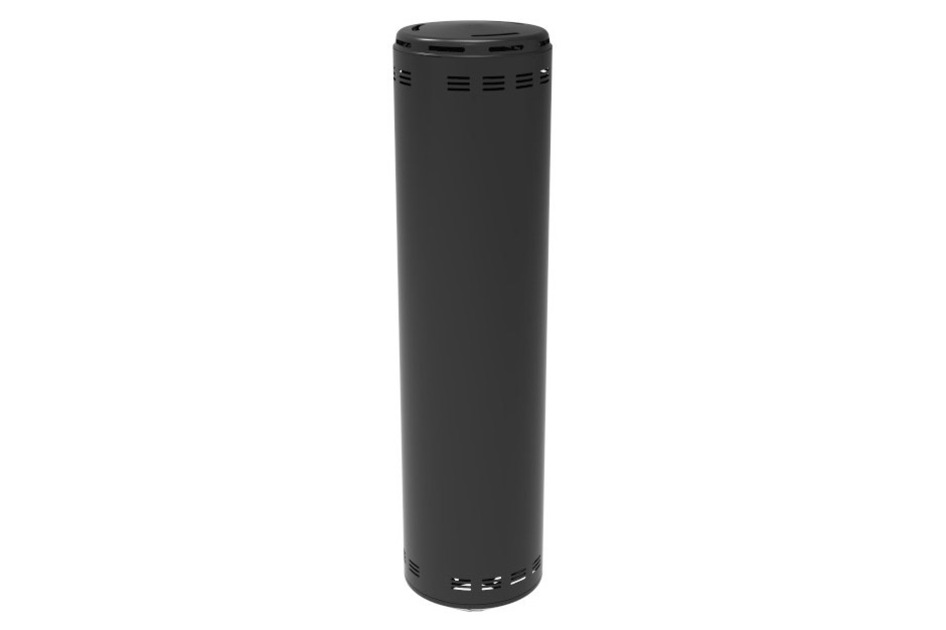

22 in Dia Pole Top Concealment for 5G and 4G Equipment

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of 760252888 | 4G and 5G C-Band Concealment by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Enclosure Width Enclosure Height Enclosure Color

Part Number	Enclosure Color
No configured items found.

Features and Benefits

-Pole Top Concealment that fully conceals 4G & 5G antenna and equipment.
-Also supports active C-Band equipment
-Material fully conceals equipment and allows RF frequencies to pass through

-Multi-Tenant Capabilities

-Please reach out to your CommScope Representative for more information

Variable pole diameter mounting kits available to mount to existing structures
Matching light pole or monopole options available

Specifications

Product Classification

Product Type	5G/mmWave
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antenna Compatibility, CommScope	CommScope Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Black (RAL 9005) \| Brown (RAL 8014)
Cooling	Fan Cooling \| Passive Cooling
Mounting Options	Concrete poles \| Fluted poles \| Metal poles \| Non-tapered poles \| Tapered poles \| Wood poles
Power Supply Compatibility	ABB CC1600 \| CCI PSU-1200W-48-N \| DELTA 2.0 \| PSU-AC-08
Radio Compatibility, Ericsson	1281 \| 220x \| 440x \| 6701 \| AIR4435 \| Diplexer \| Power Distribution
Radio Compatibility, Nokia	AEUB \| AEWB \| AEWD/AEWE \| Airscale micro \| Diplexer \| Power Distribution
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| AT1K0X \| Diplexer \| HT1K01 \| Power Distribution \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Height	2133.600 mm \| 84 in
Width	558.800 mm \| 22 in
Depth	558.800 mm \| 22 in

Material Specifications

Finish Aluminum	Chromate
Material Type	Aluminum \| Plastic \| Steel

Environmental Specifications

Thermal Compliance

GR-487

Packaging and Weights

Volume	0.523 m³ \| 18.48 ft³
Weight (unloaded)	34.019 kg \| 75 lb

Product Classification

Product Type	5G/mmWave
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antenna Compatibility, CommScope	CommScope Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Black (RAL 9005) \| Brown (RAL 8014)
Cooling	Fan Cooling \| Passive Cooling
Mounting Options	Concrete poles \| Fluted poles \| Metal poles \| Non-tapered poles \| Tapered poles \| Wood poles
Power Supply Compatibility	ABB CC1600 \| CCI PSU-1200W-48-N \| DELTA 2.0 \| PSU-AC-08
Radio Compatibility, Ericsson	1281 \| 220x \| 440x \| 6701 \| AIR4435 \| Diplexer \| Power Distribution
Radio Compatibility, Nokia	AEUB \| AEWB \| AEWD/AEWE \| Airscale micro \| Diplexer \| Power Distribution
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| AT1K0X \| Diplexer \| HT1K01 \| Power Distribution \| RT2201-46A \| RT4401-48A
Radios Included	None
