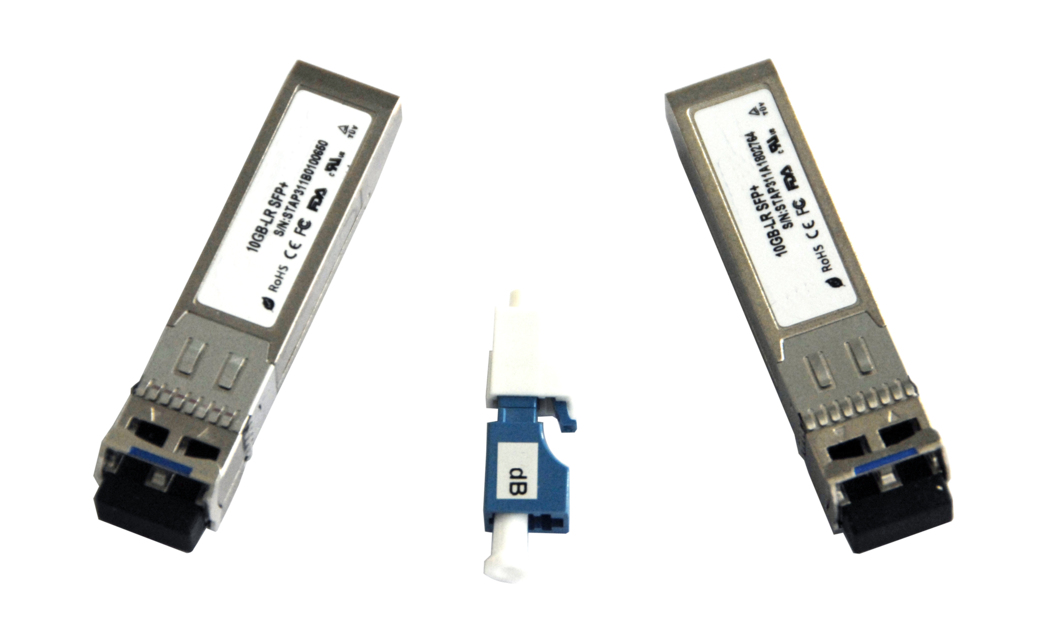

A7846857 | SFP+-Kit (2 EA) with Optical Attenuator
Kit of 2 Small Form Factor pluggable+ BiDi Modules, 10G BASE, CWDM, Singlemode, TAA compliant, up to 40 km with optical attenuator
Features and Benefits
- Single LC connector
- Hot-pluggable SFP footprint
- Uncooled DFB laser transmitter
- RoHS compliant and Lead Free
- Up to 40Km on 9/125um SMF
- Metal enclosure for lower EMI
- Commercial and industrial operating temperature optional
- Trade Agreements Act (TAA) compliant
Specifications
Product Classification
| Product Type | Optical module |
| Product Series | BiDi SFP |
General Specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local CommScope representative. |
Optical Specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 6 dBm |
| Average Optical Output Power, minimum | 1 dBm |
| Operating Wavelength | 1270 nm (Rx) | 1270 nm (Tx) | 1330 nm (Rx) | 1330 nm (Tx) |
| Receiver Sensitivity, maximum | –13 dBm |
| Receiver Overload | +1 dBm |
Environmental Specifications
| Operating Temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
Packaging and Weights
| Height, packed | 20 mm | 0.787 in |
| Width, packed | 120 mm | 4.724 in |
| Depth, packed | 190 mm | 7.480 in |
| Packaging quantity | 1 |
| Packaging Type | Bag |
| Weight, gross | 0.14 kg | 0.309 lb |
| Weight, net | 0.1 kg | 0.220 lb |
Product Classification
| Product Type | Optical module |
| Product Series | BiDi SFP |
General Specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local CommScope representative. |
Optical Specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 6 dBm |
| Average Optical Output Power, minimum | 1 dBm |
| Operating Wavelength | 1270 nm (Rx) | 1270 nm (Tx) | 1330 nm (Rx) | 1330 nm (Tx) |
| Receiver Sensitivity, maximum | –13 dBm |
| Receiver Overload | +1 dBm |
Environmental Specifications
| Operating Temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
Packaging and Weights
| Height, packed | 20 mm | 0.787 in |
| Width, packed | 120 mm | 4.724 in |
| Depth, packed | 190 mm | 7.480 in |
| Packaging quantity | 1 |
| Packaging Type | Bag |
| Weight, gross | 0.14 kg | 0.309 lb |
| Weight, net | 0.1 kg | 0.220 lb |
