2X9NPA2010F

18-port multibeam antenna, 18x 1710–2170 MHz, 2x9 Beam Panel Antenna for Event Coverage. Two rows of beams spaced 8° in elevation. One set of beams 4° up (+45°) and one set of beams 4° down(-45°) and 5° in azimuth
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
18-port multibeam antenna, 18x 1710–2170 MHz, 2x9 Beam Panel Antenna for Event Coverage. Two rows of beams spaced 8° in elevation. One set of beams 4° up (+45°) and one set of beams 4° down(-45°) and 5° in azimuth. Upper and lower beam sets displaced in azimuth by ± 2.5° from boresight.
Specifications

General Specifications

Antenna Type Multibeam
Band Single band
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
RF Connector Interface 7-16 DIN Female

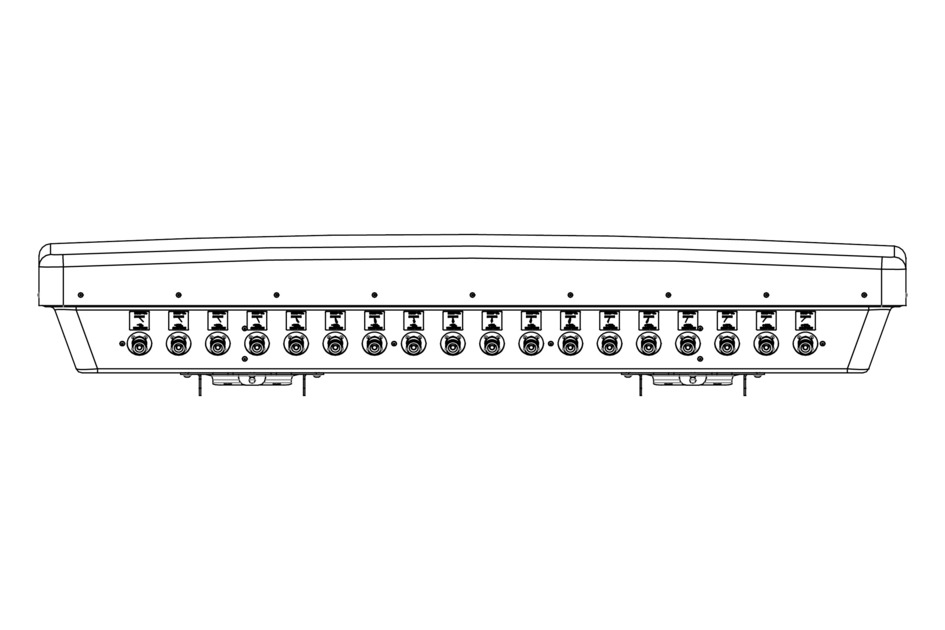

RF Connector Location Bottom
RF Connector Quantity, high band 18
RF Connector Quantity, total 18

Dimensions

Width 1486 mm | 58.504 in
Length 1771 mm | 69.724 in
Depth 283 mm | 11.142 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2170 MHz
Polarization Single Slant Polarization

Electrical Specifications

Frequency Band, MHz 1710–1920 1920–2170
Gain, dBi 25.0 27.0
Beamwidth, Horizontal, degrees 6 5
Beamwidth, Vertical, degrees 7.2 5.8
USLS (First Lobe), dB 18 18
Front-to-Back Ratio at 180°, dB 30 30
Isolation, Cross Polarization, dB 16 16
VSWR | Return loss, dB 1.43 | 15.0 1.43 | 15.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port, maximum, watts 300 300

Mechanical Specifications

Wind Loading at Velocity, frontal 3,222.0 N @ 150 km/h | 67.7 lbf @ 150 km/h
Wind Loading at Velocity, lateral 174.0 N @ 150 km/h | 39.1 lbf @ 150 km/h
Wind Speed, maximum 160 km/h | 99.419 mph

Packaging and Weights

Width, packed 1758 mm | 69.213 in
Depth, packed 640 mm | 25.197 in
Length, packed 1998 mm | 78.661 in
Net Weight, without mounting kit 140 kg | 308.647 lb
Weight, gross 188 kg | 414.469 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

General Specifications

Antenna Type Multibeam
Band Single band
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 18
RF Connector Quantity, total 18

Dimensions

Width 1486 mm | 58.504 in
Length 1771 mm | 69.724 in
Depth 283 mm | 11.142 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2170 MHz
Polarization Single Slant Polarization

Electrical Specifications

Frequency Band, MHz 1710–1920 1920–2170
Gain, dBi 25.0 27.0
Beamwidth, Horizontal, degrees 6 5
Beamwidth, Vertical, degrees 7.2 5.8
USLS (First Lobe), dB 18 18
Front-to-Back Ratio at 180°, dB 30 30
Isolation, Cross Polarization, dB 16 16
VSWR | Return loss, dB 1.43 | 15.0 1.43 | 15.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port, maximum, watts 300 300

Mechanical Specifications

Wind Loading at Velocity, frontal 3,222.0 N @ 150 km/h | 67.7 lbf @ 150 km/h
Wind Loading at Velocity, lateral 174.0 N @ 150 km/h | 39.1 lbf @ 150 km/h
Wind Speed, maximum 160 km/h | 99.419 mph

Packaging and Weights

Width, packed 1758 mm | 69.213 in
Depth, packed 640 mm | 25.197 in
Length, packed 1998 mm | 78.661 in
Net Weight, without mounting kit 140 kg | 308.647 lb
Weight, gross 188 kg | 414.469 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
