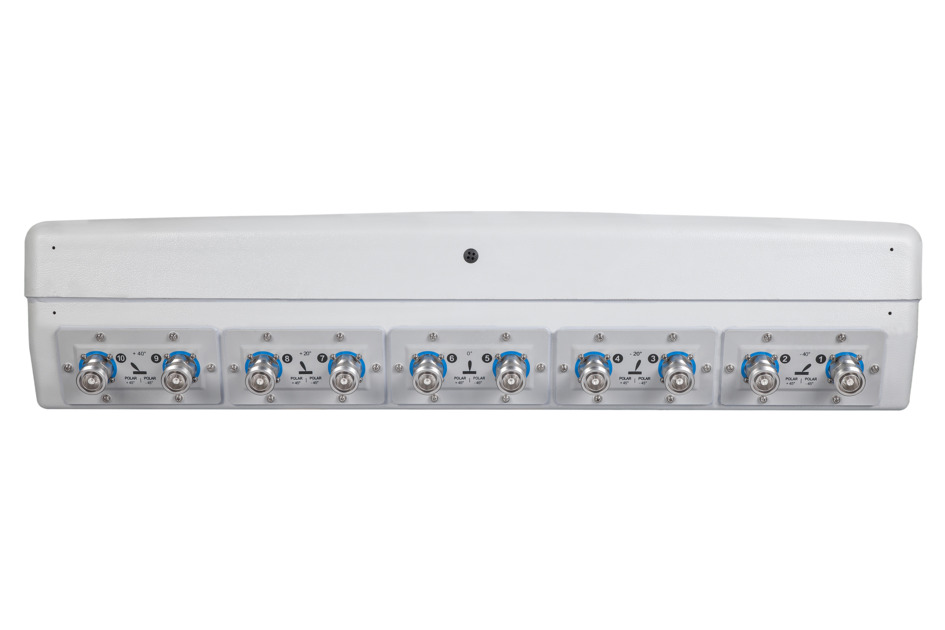

5NPX1006F

10-port multibeam antenna, 10x 1710–2180 MHz, 5x 10-14° HPBW, fixed electrical tilt

Specifications
Finish making your selections or clear them to view relevant specifications.
View
Find a Partner
Support

General Specifications

Antenna Type Multibeam
Band Single band
Color Gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Radiator Material Brass | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 10
RF Connector Quantity, total 10

Dimensions

Width 864 mm | 34.016 in
Depth 202 mm | 7.953 in
Length 889 mm | 35 in
Net Weight, without mounting kit 29.5 kg | 65.036 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 1710–1920 1920–2180
Gain, dBi 21.7 22.3
Beamwidth, Horizontal, degrees 13 12
Beamwidth, Vertical, degrees 11.9 10.9
Beam Tilt, degrees 6 6
USLS (First Lobe), dB 14 16
Front-to-Back Ratio at 180°, dB 32 34
CPR at Boresight, dB 10 10
Isolation, Same Beam, dB 25 25
VSWR | Return loss, dB 1.43 | 15.0 1.43 | 15.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port, maximum, watts 300 300

Electrical Specifications, BASTA

Frequency Band, MHz 1710–1920 1920–2180
Gain by all Beam Tilts, average, dBi 20.7 21.3
Gain by all Beam Tilts Tolerance, dB ±2 ±1.7
Beamwidth, Horizontal Tolerance, degrees ±2.1 ±1.7
Beamwidth, Vertical Tolerance, degrees ±0.7 ±0.7
USLS, beampeak to 20° above beampeak, dB 17 18
Front-to-Back Total Power at 180° ± 30°, dB 30 32
CPR at Boresight, dB 9 10

Mechanical Specifications

Wind Loading @ Velocity, frontal 931.0 N @ 150 km/h (209.3 lbf @ 150 km/h)
Wind Speed, maximum 250 km/h | 155.343 mph

Packaging and Weights

Width, packed 977 mm | 38.465 in
Depth, packed 349 mm | 13.74 in
Length, packed 1038 mm | 40.866 in
Weight, gross 46.5 kg | 102.515 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
