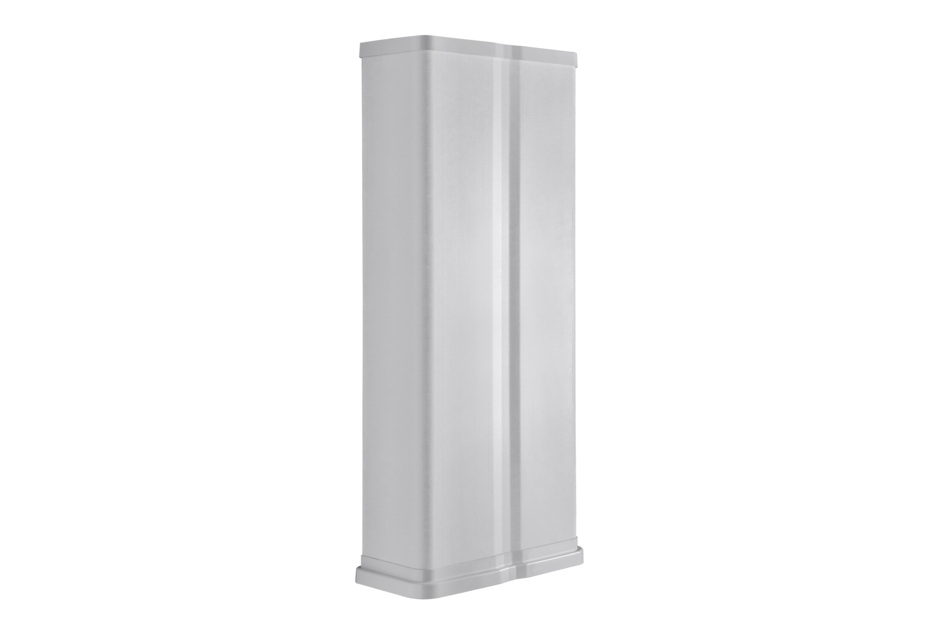

AEKT-N1

Antenna Enclosure Kit

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Innovative flexible modular solution enabling suitable sites to be upgraded to 5G capability
Compatible with a variety of Nokia n78 mMIMO Active Antennas (MAA)
The module installs directly above an existing, suitable passive antenna to provide the appearance of a single integrated antenna unit – potentially simplifying site zoning approvals (The_module_1)
Installed antenna units can be swapped out on site - e.g. to perform capacity upgrades
Compatible specifically with antennas featuring CommScope’s 498 x 197 mm (WxD) radome housing
Can be deployed as a standalone solution
Includes Antenna Enclosure Housing, Installation Kit for compatible Nokia mMIMO Active Antennas (MAA), AEKT-N1 Mounting Hardware, protective “Windshield” Panels and Top Cap
Contact your Commscope representative for further details. For a list of supported Nokia MAA products, please contact Nokia (Contact_yo_5)
A Mounting Kit for the antenna installed below the AEKT-N1 unit should be ordered separately, Commscope P/N: BSAMNT-AEKT (required when installing the AEKT-N1 module directly on top of an antenna)

Specifications

General Specifications

Width	498 mm \| 19.606 in
Depth	199 mm \| 7.835 in
Length	1100 mm \| 43.307 in
Net Weight, without mounting kit	9.29 kg \| 20.481 lb

Click on image to enlarge.

Wind Loading @ Velocity, frontal	700.0 N @ 150 km/h (157.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	308.0 N @ 150 km/h (69.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	700.0 N @ 150 km/h (157.4 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant

Width	498 mm \| 19.606 in
Depth	199 mm \| 7.835 in
Length	1100 mm \| 43.307 in
Net Weight, without mounting kit	9.29 kg \| 20.481 lb

Wind Loading @ Velocity, frontal	700.0 N @ 150 km/h (157.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	308.0 N @ 150 km/h (69.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	700.0 N @ 150 km/h (157.4 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)
