EGHTV65B-F-C3-5XR

10-port sector antenna, 2x 694–862, 2x 880–960, 2x 1695-2180, 2x 2490-2690 and 2x 1695–2690 MHz, 65° HPBW, 5x RET. Low band (LB) and one high (HB1/HB2) band arrays are diplexed at the element level.

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1828 mm | 71.969 in
Net Weight, without mounting kit 30 kg | 66.139 lb

Array Layout

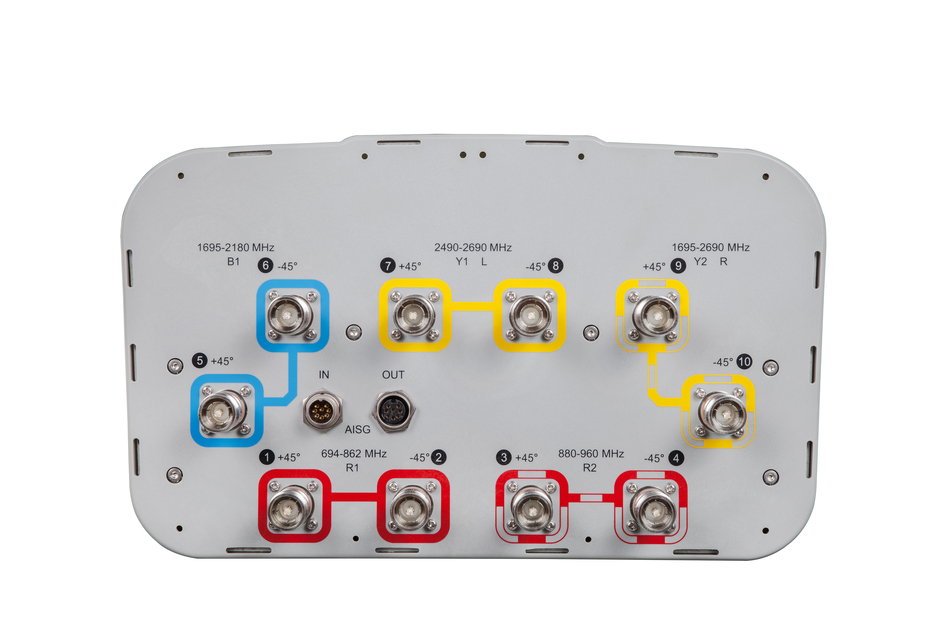

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 880 – 960 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

LB LB HB1 HB1 HB2 HB3 HB3 HB3
Frequency Band, MHz 694–862 880–960 1920–2180 1695–1920 2490–2690 1920–2180 2300–2690 1695–1920
Gain, dBi 15.1 15.5 18.0 17.7 18.3 18.8 19.2 18.1
Beamwidth, Horizontal, degrees 66 63 64 62 64 64 62 62
Beamwidth, Vertical, degrees 11.7 9.9 4.9 5.5 4.1 4.9 4.2 5.5
Beam Tilt, degrees 2–14 2–14 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 15 19 17 17 21 17 19 16
Front-to-Back Ratio at 180°, dB 32 32 35 31 30 37 36 32
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 200 250 200 250

Mechanical Specifications

Wind Loading @ Velocity, frontal 301.0 N @ 150 km/h (67.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 638.0 N @ 150 km/h (143.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 1975 mm | 77.756 in
Weight, gross 43.5 kg | 95.901 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1828 mm | 71.969 in
Net Weight, without mounting kit 30 kg | 66.139 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 880 – 960 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

LB LB HB1 HB1 HB2 HB3 HB3 HB3
Frequency Band, MHz 694–862 880–960 1920–2180 1695–1920 2490–2690 1920–2180 2300–2690 1695–1920
Gain, dBi 15.1 15.5 18.0 17.7 18.3 18.8 19.2 18.1
Beamwidth, Horizontal, degrees 66 63 64 62 64 64 62 62
Beamwidth, Vertical, degrees 11.7 9.9 4.9 5.5 4.1 4.9 4.2 5.5
Beam Tilt, degrees 2–14 2–14 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 15 19 17 17 21 17 19 16
Front-to-Back Ratio at 180°, dB 32 32 35 31 30 37 36 32
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 200 250 200 250

Mechanical Specifications

Wind Loading @ Velocity, frontal 301.0 N @ 150 km/h (67.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 638.0 N @ 150 km/h (143.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 319.0 N @ 150 km/h (71.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 1975 mm | 77.756 in
Weight, gross 43.5 kg | 95.901 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Assembly Drawing

Line drawing

Installation Instruction

639840 Mounting Kits For Wide Panel Antennas

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Information

Antenna Patterns | (login required)

Product Specification

EGHTV65B-F-C3-5XR Product specifications
EGHTV65B-F-C3-5XR Product specifications (Comprehensive)
