EGRZZHHTT-65A-R8

18-port sector antenna, 2x 694–862, 2x 880-960, 2x 694–960, 4x 1427–2690, 4x 1695-2180 and 4x 2490-2690 MHz, 65° HPBW, 8x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in "Cascaded SRET" configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios
  • Antenna shape optimized for wind load reduction

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 6
RF Connector Quantity, total 18

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (3) | Mid band (5)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 1600 mm | 62.992 in
Net Weight, antenna only 40.4 kg | 89.067 lb

Array Layout

Click on image to enlarge.

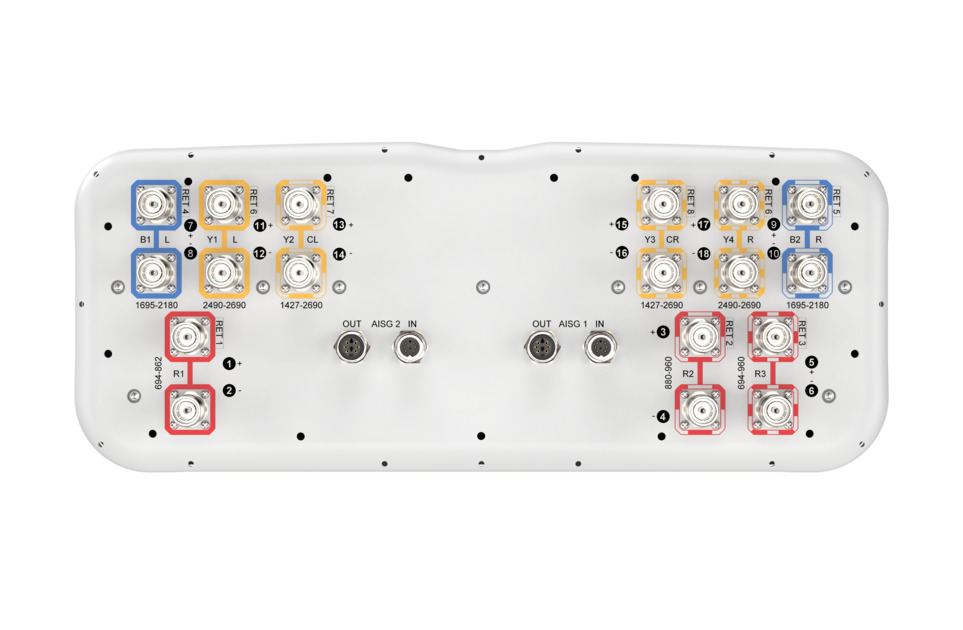

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1 R1 R2 R3 R3 R3 B1,B2 B1,B2 Y1,Y4 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3 Y2,Y3
Frequency Band, MHz 698–806 790–862 880–960 698–806 790–894 890–960 1695–1995 1920–2180 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1,2 1,2 3,4 5,6 5,6 5,6 7-10 7-10 11,12,17,18 13-16 13-16 13-16 13-16 13-16
Gain at Mid Tilt, dBi 13.4 13.6 13.8 13.9 14.3 14.4 16.7 17.5 17.8 15.4 16.9 17.7 18.2 18.1
Beamwidth, Horizontal, degrees 71 67 65 71 67 65 69 63 56 73 64 60 58 57
Beamwidth, Vertical, degrees 13.5 12.7 11.7 13.8 12.7 11.6 6.1 5.6 4.6 8 6.4 5.7 4.9 4.6
Beam Tilt, degrees 3–16 3–16 3–16 3–16 3–16 3–16 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 15 13 16 17 16 16 16 17 17 16 16 16 16
Front-to-Back Ratio at 180°, dB 30 30 28 30 27 28 32 31 31 31 32 32 31 30
Front-to-Back Total Power at 180° ± 30°, dB 20 20 20 19 20 21 26 25 26 24 26 26 26 26
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 300 300 300 250 250 150 250 250 250 200 200

Mechanical Specifications

Wind Loading @ Velocity, frontal 544.0 N @ 150 km/h (122.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 142.0 N @ 150 km/h (31.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 723.0 N @ 150 km/h (162.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 374.0 N @ 150 km/h (84.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 1775 mm | 69.882 in
Weight, gross 54.2 kg | 119.490 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
