EGZHHTTS4-65B-R7

22-port sector antenna, 2x 694-862 (R1), 2x 880-960 (R2), 2x 1427-2690 (Y2), 4x 1695-2180 (B1-B2), 4x 2490-2690 (Y1 & Y3) MHz, 65° 8x 3300-3800 (P1) HPBW, 7X RET. Y1 & Y3 share common RET.

Specifications

Finish making your selections or clear them to view relevant specifications.

View

Find a Partner

Support

Features and Benefits

All Internal RET actuators are connected in “Cascaded SRET” configuration
Retractable tilt indicator rods
Two cluster connectors for the S4 beam-forming array, including eight RF ports plus one calibration port

Specifications

General Specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female \| M-LOC
RF Connector Location	Bottom
RF Connector Quantity, high band	18
RF Connector Quantity, low band	4
RF Connector Quantity, total	22

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (5) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	395 mm \| 15.551 in
Depth	228 mm \| 8.976 in
Length	2100 mm \| 82.677 in
Net Weight, without mounting kit	42 kg \| 92.594 lb

Array Layout

Click on image to enlarge.

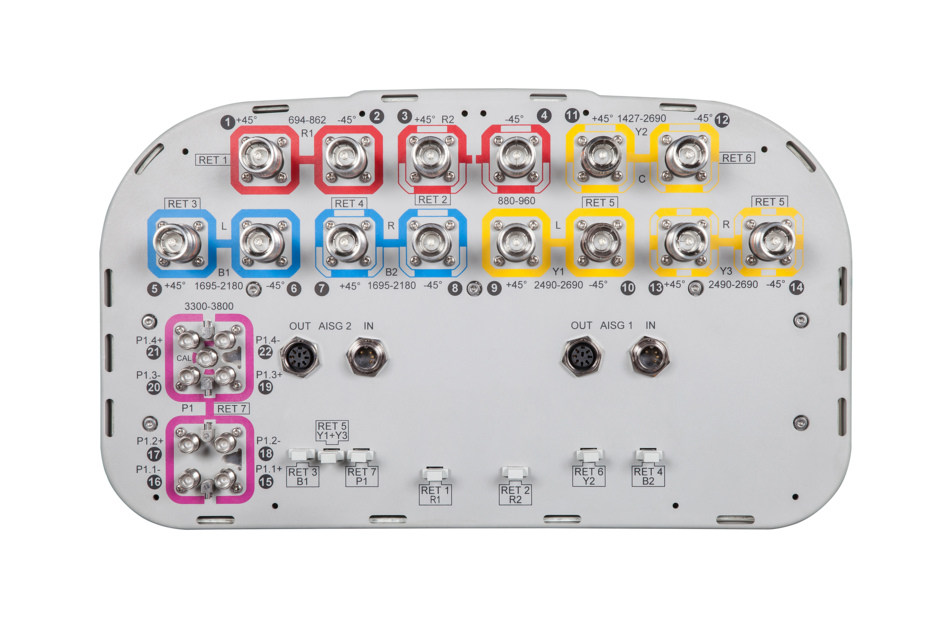

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 862 MHz \| 880 – 960 MHz \| 1427 – 2690 MHz \| 1695 – 2180 MHz \| 2490 – 2690 MHz \| 3300 – 3800 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical Specifications

	R1	R2	B1-B2	Y1&Y3	Y2	Y2	Y2	P1
Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain, dBi	14.7	15.0	16.5	16.7	14.6	16.3	17.0	15.1
Beamwidth, Horizontal, degrees	65	64	66	60	70	63	56	91
Beamwidth, Vertical, degrees	10.5	8.9	7.1	5.6	9.3	7.5	5.8	7.1
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	17	22	21	18	19	16	21	15
Front-to-Back Ratio at 180°, dB	35	33	32	30	32	32	34	27
Coupling level, Amp, Antenna port to Cal port, dB								26
Coupling level, max Amp Δ, Antenna port to Cal port, dB								±2
Coupler, max Amp Δ, Antenna port to Cal port, dB								0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees								7
Isolation, Cross Polarization, dB	28	28	28	28	28	27	27	25
Isolation, Inter-band, dB	28	28	28	28	28	28	28	19
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-145
Input Power per Port at 50°C, maximum, watts	300	300	250	200	200	250	250	75

Electrical Specifications, BASTA

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain by all Beam Tilts, average, dBi	14.5	14.7	16.0	16.1	14.4	15.4	16.6	14.5
Gain by all Beam Tilts Tolerance, dB	±0.3	±0.4	±0.8	±0.7	±0.4	±1.3	±0.7	±0.6
Gain by Beam Tilt, average, dBi	2 ° \| 14.5 7 ° \| 14.5 12 ° \| 14.4	2 ° \| 14.7 7 ° \| 14.9 12 ° \| 14.6	2 ° \| 15.8 7 ° \| 16.1 12 ° \| 15.9	2 ° \| 15.7 7 ° \| 16.4 12 ° \| 15.9	2 ° \| 14.4 7 ° \| 14.5 12 ° \| 14.2	2 ° \| 15.3 7 ° \| 15.6 12 ° \| 15.4	2 ° \| 16.6 7 ° \| 16.9 12 ° \| 16.2	2 ° \| 14.2 7 ° \| 14.6 12 ° \| 14.6
Beamwidth, Horizontal Tolerance, degrees	±2.5	±1.9	±5.4	±5.8	±4.2	±5.9	±5.9	±14.5
Beamwidth, Vertical Tolerance, degrees	±1.1	±0.5	±0.7	±0.2	±0.5	±1	±0.6	±0.6
USLS, beampeak to 20° above beampeak, dB	17	18	15	14	15	15	16	15
Front-to-Back Total Power at 180° ± 30°, dB	26	24	24	24	26	28	29	21
CPR at Boresight, dB	19	16	17	18	14	22	24	15
CPR at Sector, dB	12	8	7	10	8	8	6	9

Electrical Specifications, Broadcast 65

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain, dBi								16.2
Beamwidth, Horizontal, degrees								60
Beamwidth, Vertical, degrees								7.1
USLS (First Lobe), dB								16

Electrical Specifications, Service Beam

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Steered 0° Gain, dBi								19.8
Steered 0° Beamwidth, Horizontal, degrees								25
Steered 0° CPR over 10 dB Beamwidth, dB								25
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB								28
Steered 0° Horizontal Sidelobe, dB								12
Steered 13° Gain, dBi								25.0
Steered 13° Beamwidth, Horizontal, degrees								10
Steered 13° CPR at Beampeak, dB								28
Steered 13° CPR over 10 dB Beamwidth, dB								12
Steered 30° Gain, dBi								19.4
Steered 30° Beamwidth, Horizontal, degrees								25
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB								27
Steered 30° Horizontal Sidelobe, dB								10
Steered 42° CPR at Beampeak, dB								27

Electrical Specifications, Soft Split

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain, dBi								19.2
Beamwidth, Horizontal, degrees								29
CPR at Beampeak, dB								17
Front-to-Back Total Power at 180° ± 30°, dB								27
Horizontal Sidelobe, dB								17

Mechanical Specifications

Effective Projective Area (EPA), frontal	0.4 m² \| 4.306 ft²
Effective Projective Area (EPA), lateral	0.29 m² \| 3.122 ft²
Wind Loading @ Velocity, frontal	427.0 N @ 150 km/h (96.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	312.0 N @ 150 km/h (70.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	730.0 N @ 150 km/h (164.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	439.0 N @ 150 km/h (98.7 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h \| 149.75 mph

Packaging and Weights

Width, packed	505 mm \| 19.882 in
Depth, packed	386 mm \| 15.197 in
Length, packed	2233 mm \| 87.913 in
Weight, gross	57.7 kg \| 127.207 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted

General Specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female \| M-LOC
RF Connector Location	Bottom
RF Connector Quantity, high band	18
RF Connector Quantity, low band	4
RF Connector Quantity, total	22

Remote Electrical Tilt (RET) Information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (5) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	395 mm \| 15.551 in
Depth	228 mm \| 8.976 in
Length	2100 mm \| 82.677 in
Net Weight, without mounting kit	42 kg \| 92.594 lb

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 862 MHz \| 880 – 960 MHz \| 1427 – 2690 MHz \| 1695 – 2180 MHz \| 2490 – 2690 MHz \| 3300 – 3800 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical Specifications

	R1	R2	B1-B2	Y1&Y3	Y2	Y2	Y2	P1
Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain, dBi	14.7	15.0	16.5	16.7	14.6	16.3	17.0	15.1
Beamwidth, Horizontal, degrees	65	64	66	60	70	63	56	91
Beamwidth, Vertical, degrees	10.5	8.9	7.1	5.6	9.3	7.5	5.8	7.1
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	17	22	21	18	19	16	21	15
Front-to-Back Ratio at 180°, dB	35	33	32	30	32	32	34	27
Coupling level, Amp, Antenna port to Cal port, dB								26
Coupling level, max Amp Δ, Antenna port to Cal port, dB								±2
Coupler, max Amp Δ, Antenna port to Cal port, dB								0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees								7
Isolation, Cross Polarization, dB	28	28	28	28	28	27	27	25
Isolation, Inter-band, dB	28	28	28	28	28	28	28	19
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-145
Input Power per Port at 50°C, maximum, watts	300	300	250	200	200	250	250	75

Electrical Specifications, BASTA

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain by all Beam Tilts, average, dBi	14.5	14.7	16.0	16.1	14.4	15.4	16.6	14.5
Gain by all Beam Tilts Tolerance, dB	±0.3	±0.4	±0.8	±0.7	±0.4	±1.3	±0.7	±0.6
Gain by Beam Tilt, average, dBi	2 ° \| 14.5; 7 ° \| 14.5;12 ° \| 14.4	2 ° \| 14.7; 7 ° \| 14.9;12 ° \| 14.6	2 ° \| 15.8; 7 ° \| 16.1;12 ° \| 15.9	2 ° \| 15.7; 7 ° \| 16.4;12 ° \| 15.9	2 ° \| 14.4; 7 ° \| 14.5;12 ° \| 14.2	2 ° \| 15.3; 7 ° \| 15.6;12 ° \| 15.4	2 ° \| 16.6; 7 ° \| 16.9;12 ° \| 16.2	2 ° \| 14.2; 7 ° \| 14.6;12 ° \| 14.6
Beamwidth, Horizontal Tolerance, degrees	±2.5	±1.9	±5.4	±5.8	±4.2	±5.9	±5.9	±14.5
Beamwidth, Vertical Tolerance, degrees	±1.1	±0.5	±0.7	±0.2	±0.5	±1	±0.6	±0.6
USLS, beampeak to 20° above beampeak, dB	17	18	15	14	15	15	16	15
Front-to-Back Total Power at 180° ± 30°, dB	26	24	24	24	26	28	29	21
CPR at Boresight, dB	19	16	17	18	14	22	24	15
CPR at Sector, dB	12	8	7	10	8	8	6	9

Electrical Specifications, Broadcast 65

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain, dBi								16.2
Beamwidth, Horizontal, degrees								60
Beamwidth, Vertical, degrees								7.1
USLS (First Lobe), dB								16

Electrical Specifications, Service Beam

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Steered 0° Gain, dBi								19.8
Steered 0° Beamwidth, Horizontal, degrees								25
Steered 0° CPR over 10 dB Beamwidth, dB								25
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB								28
Steered 0° Horizontal Sidelobe, dB								12
Steered 13° Gain, dBi								25.0
Steered 13° Beamwidth, Horizontal, degrees								10
Steered 13° CPR at Beampeak, dB								28
Steered 13° CPR over 10 dB Beamwidth, dB								12
Steered 30° Gain, dBi								19.4
Steered 30° Beamwidth, Horizontal, degrees								25
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB								27
Steered 30° Horizontal Sidelobe, dB								10
Steered 42° CPR at Beampeak, dB								27

Electrical Specifications, Soft Split

Frequency Band, MHz	694–862	880–960	1695–2180	2490–2690	1427–1518	1695–2200	2300–2690	3300–3800
Gain, dBi								19.2
Beamwidth, Horizontal, degrees								29
CPR at Beampeak, dB								17
Front-to-Back Total Power at 180° ± 30°, dB								27
Horizontal Sidelobe, dB								17

Mechanical Specifications

Effective Projective Area (EPA), frontal	0.4 m² \| 4.306 ft²
Effective Projective Area (EPA), lateral	0.29 m² \| 3.122 ft²
Wind Loading @ Velocity, frontal	427.0 N @ 150 km/h (96.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	312.0 N @ 150 km/h (70.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	730.0 N @ 150 km/h (164.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	439.0 N @ 150 km/h (98.7 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h \| 149.75 mph

Packaging and Weights

Width, packed	505 mm \| 19.882 in
Depth, packed	386 mm \| 15.197 in
Length, packed	2233 mm \| 87.913 in
Weight, gross	57.7 kg \| 127.207 lb

Click on image to enlarge.

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
UK-ROHS	Compliant/Exempted
