NNH4S4-65C-R7

20 Port Sector Antenna & Beamforming , 4x698-896 MHz, 8x1695-2360 MHz, 65° HPBW and 8x3400-4000 MHz Beamformer, 7XRET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Multi-band FDD antenna featuring C-Band 8T8R functionality
  • Feature the same dimensions as existing 8 and 12-port FDD capable antennas
  • New endcap designs provide improved wind loading performance
  • The C-band RET is factory set to AISG2. All other RET are assigned to AISG1

General Specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2438 mm | 95.984 in
Net Weight, antenna only 52 kg | 114.640 lb
TDD Column Spacing 41 mm | 1.614 in

Array Layout

Click on image to enlarge.

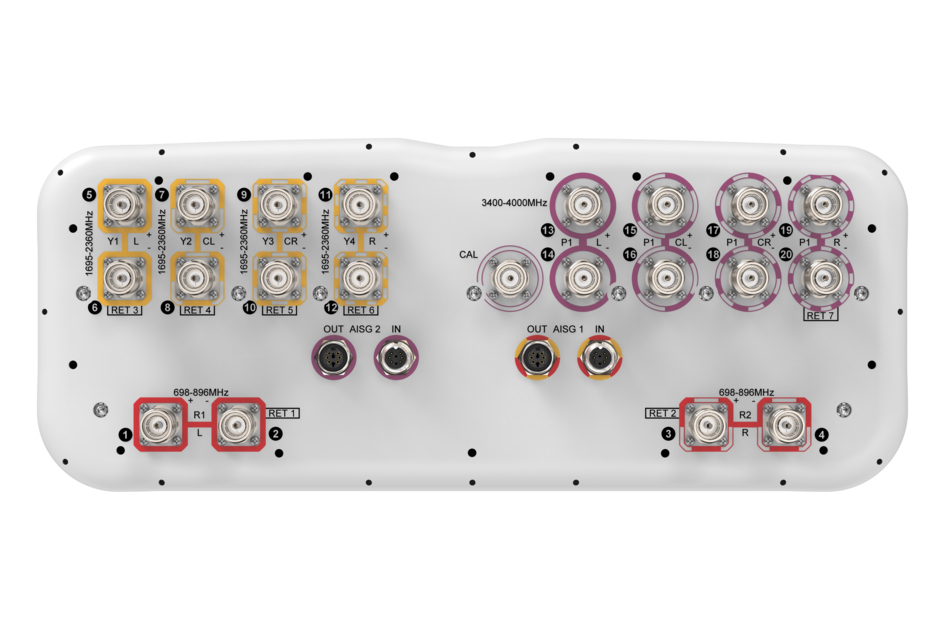

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz | 3400 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,500 W @ 50 °C

Electrical Specifications

R1-R2 R1-R2 Y1-Y4 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3700 3700–4000
RF Port 1-4 1-4 5-12 5-12 5-12 5-12 13-20 13-20
Gain, dBi 15.6 16.1 17.0 17.5 18.1 18.6 16.0 17.2
Beamwidth, Horizontal, degrees 71 64 71 69 63 56 96 79
Beamwidth, Vertical, degrees 9.6 8.2 5.9 5.4 5.1 4.6 6.1 5.7
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 15 16 16 16 16 16 15 16
Front-to-Back Ratio at 180°, dB 32 31 34 35 35 35 31 30
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.6 0.6
Coupler, max Phase Δ, Antenna port to Cal port, degrees 5 5
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 19 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -145 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 200 75 75

Electrical Specifications, Broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3700 3700–4000
Gain, dBi 18.0 19.0
Beamwidth, Horizontal, degrees 65 65
Beamwidth, Vertical, degrees 6.1 5.7
Beamwidth, Vertical Tolerance, degrees ±0.3 ±0.3
Front-to-Back Total Power at 180° ± 30°, dB 27 27
USLS (First Lobe), dB 17 19

Electrical Specifications, Envelope Pattern

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3700 3700–4000
Gain, dBi 20.9 21.7

Electrical Specifications, Service Beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3700 3700–4000
Steered 0° Gain, dBi 20.9 21.6
Steered 0° Beamwidth, Horizontal, degrees 25 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 30 30
Steered 30° Gain, dBi 19.3 20.1
Steered 30° Beamwidth, Horizontal, degrees 34 30
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 29 29

Electrical Specifications, Soft Split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360 3400–3700 3700–4000
Gain, dBi 19.4 20.1
Beamwidth, Horizontal, degrees 36 30
Front-to-Back Total Power at 180° ± 30°, dB 30 30
Horizontal Sidelobe, dB 17 16
USLS (First Lobe), dB 19 20

Mechanical Specifications

Effective Projective Area (EPA), frontal 0.81 m² | 8.719 ft²
Effective Projective Area (EPA), lateral 0.25 m² | 2.691 ft²
Wind Loading @ Velocity, frontal 865.0 N @ 150 km/h (194.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,037.0 N @ 150 km/h (233.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h)
Wind Speed, maximum 241.4 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2625 mm | 103.347 in
Weight, gross 67.4 kg | 148.591 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
