RR-65C-R2VB-V2
4-port sector antenna, 4x 694–960 MHz, 65° HPBW, 2x RET
Features and Benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Retractable tilt indicator rods
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 427 mm | 16.811 in |
| Depth | 157 mm | 6.181 in |
| Length | 2497 mm | 98.307 in |
| Net Weight, antenna only | 27.6 kg | 60.848 lb |
Array Layout
| Click on image to enlarge. |

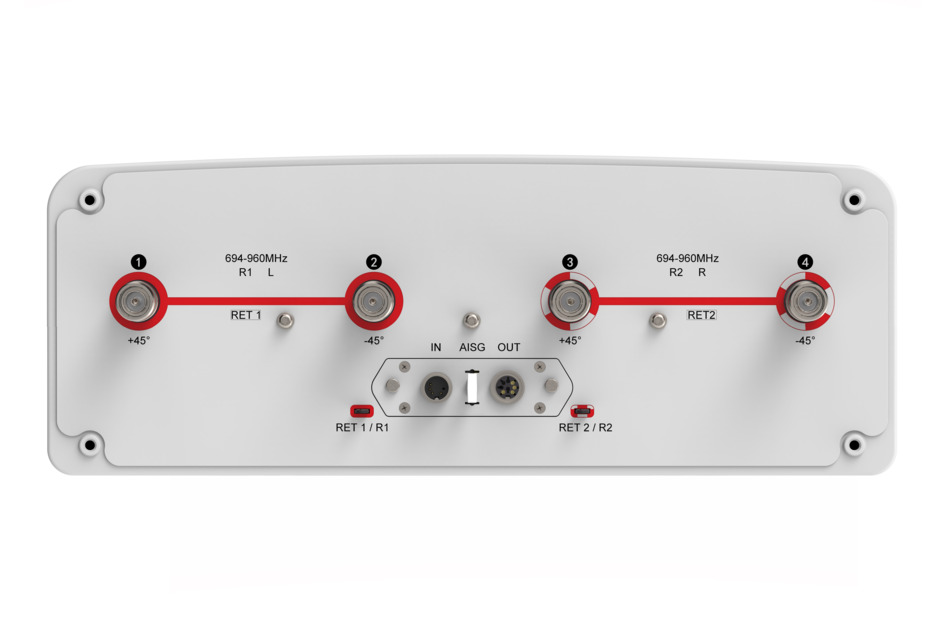

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W |
Electrical Specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| Gain, dBi | 16.1 | 16.5 | 16.8 |
| Beamwidth, Horizontal, degrees | 66 | 61 | 58 |
| Beamwidth, Vertical, degrees | 8.7 | 7.9 | 7.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 22 | 25 | 26 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 29 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 965.0 N @ 150 km/h (216.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 402.0 N @ 150 km/h (90.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,174.0 N @ 150 km/h (263.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 522 mm | 20.551 in |
| Depth, packed | 277 mm | 10.906 in |
| Length, packed | 2697 mm | 106.181 in |
| Weight, gross | 38.8 kg | 85.539 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 427 mm | 16.811 in |
| Depth | 157 mm | 6.181 in |
| Length | 2497 mm | 98.307 in |
| Net Weight, antenna only | 27.6 kg | 60.848 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W |
Electrical Specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| Gain, dBi | 16.1 | 16.5 | 16.8 |
| Beamwidth, Horizontal, degrees | 66 | 61 | 58 |
| Beamwidth, Vertical, degrees | 8.7 | 7.9 | 7.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 22 | 25 | 26 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 29 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 965.0 N @ 150 km/h (216.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 402.0 N @ 150 km/h (90.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,174.0 N @ 150 km/h (263.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 522 mm | 20.551 in |
| Depth, packed | 277 mm | 10.906 in |
| Length, packed | 2697 mm | 106.181 in |
| Weight, gross | 38.8 kg | 85.539 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
