RRVV2VV-6533D-R8

16-port sector/multibeam antenna 4x 694–960 MHz , 4x 1695-2690 MHz 65° HPBW and 8x 1710–2690 MHz 2x 2-Beam 33°HPBW, 8x RET. Band cascaded SRET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

General Specifications

Antenna Type Multibeam
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in EN1991-1-4 standard
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (6) | Low band (2)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2577 mm | 101.457 in
Net Weight, antenna only 53 kg | 116.845 lb

Array Layout

Click on image to enlarge.

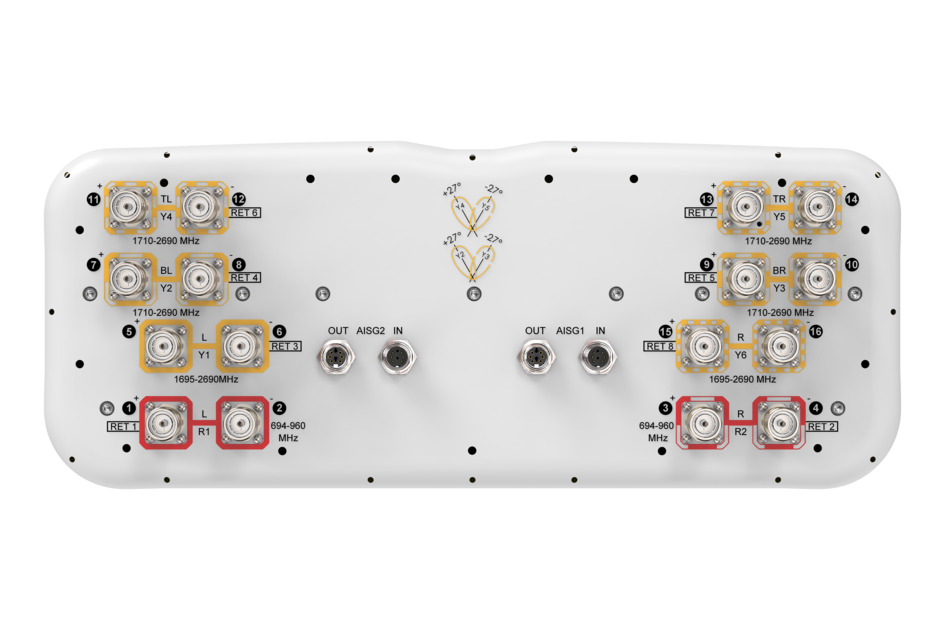

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 1710 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,700 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–806 790–896 890–960 1695–1990 1920–2300 2300–2500 2490–2690 1710–1990 1920–2300 2300–2500 2490–2690
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 71 64 63 73 64 58 56 36 33 30 27
Beamwidth, Vertical, degrees 9.2 8.2 7.6 5.8 5.3 4.8 4.6 7.2 6.5 5.7 5.3
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 17 18 25 24 21 18 17 19 20 20
Front-to-Back Ratio at 180°, dB 29 28 29 34 33 35 33 38 38 34 32
Front-to-Back Total Power at 180° ± 30°, dB 22 22 22 24 25 28 26 32 31 28 27
CPR at Boresight, dB 24 22 17 21 21 23 22 17 21 17 21
CPR at Sector, dB 10 10 13 8 7 9 7
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25 25
Isolation, Beam to Beam, dB 17 17 17 17
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 200 200 200 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–806 790–896 890–960 1695–1990 1920–2300 2300–2500 2490–2690 1710–1990 1920–2300 2300–2500 2490–2690
Gain by all Beam Tilts, average, dBi 15.2 15.6 15.8 16.6 17.7 18.3 18.5 17.3 18.6 18.7 19.0
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±0.3 ±0.8 ±0.7 ±0.3 ±0.3 ±1.4 ±0.9 ±1.2 ±0.6
Beamwidth, Horizontal Tolerance, degrees ±9.8 ±7.1 ±5.4 ±7.2 ±6.5 ±3.6 ±2.7 ±3.3 ±2 ±3.7 ±1
Beamwidth, Vertical Tolerance, degrees ±0.5 ±0.6 ±0.4 ±0.4 ±0.4 ±0.2 ±0.2 ±0.6 ±0.5 ±0.3 ±0.3
USLS, beampeak to 20° above beampeak, dB 18 16 15 18 18 16 15 16 16 14 14
CPR at 10 dB Horizontal Beamwidth, dB 9 13 12 18

Mechanical Specifications

Wind Loading @ Velocity, frontal 876.0 N @ 150 km/h (196.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 229.0 N @ 150 km/h (51.5 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,165.0 N @ 150 km/h (261.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 603.0 N @ 150 km/h (135.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2824 mm | 111.181 in
Weight, gross 74 kg | 163.142 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

General Specifications

Antenna Type Multibeam
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in EN1991-1-4 standard
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (6) | Low band (2)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2577 mm | 101.457 in
Net Weight, antenna only 53 kg | 116.845 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 1710 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,700 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–806 790–896 890–960 1695–1990 1920–2300 2300–2500 2490–2690 1710–1990 1920–2300 2300–2500 2490–2690
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 71 64 63 73 64 58 56 36 33 30 27
Beamwidth, Vertical, degrees 9.2 8.2 7.6 5.8 5.3 4.8 4.6 7.2 6.5 5.7 5.3
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 17 18 25 24 21 18 17 19 20 20
Front-to-Back Ratio at 180°, dB 29 28 29 34 33 35 33 38 38 34 32
Front-to-Back Total Power at 180° ± 30°, dB 22 22 22 24 25 28 26 32 31 28 27
CPR at Boresight, dB 24 22 17 21 21 23 22 17 21 17 21
CPR at Sector, dB 10 10 13 8 7 9 7
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25 25
Isolation, Beam to Beam, dB 17 17 17 17
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 200 200 200 200 200

Electrical Specifications, BASTA

Frequency Band, MHz 694–806 790–896 890–960 1695–1990 1920–2300 2300–2500 2490–2690 1710–1990 1920–2300 2300–2500 2490–2690
Gain by all Beam Tilts, average, dBi 15.2 15.6 15.8 16.6 17.7 18.3 18.5 17.3 18.6 18.7 19.0
Gain by all Beam Tilts Tolerance, dB ±0.6 ±0.4 ±0.3 ±0.8 ±0.7 ±0.3 ±0.3 ±1.4 ±0.9 ±1.2 ±0.6
Beamwidth, Horizontal Tolerance, degrees ±9.8 ±7.1 ±5.4 ±7.2 ±6.5 ±3.6 ±2.7 ±3.3 ±2 ±3.7 ±1
Beamwidth, Vertical Tolerance, degrees ±0.5 ±0.6 ±0.4 ±0.4 ±0.4 ±0.2 ±0.2 ±0.6 ±0.5 ±0.3 ±0.3
USLS, beampeak to 20° above beampeak, dB 18 16 15 18 18 16 15 16 16 14 14
CPR at 10 dB Horizontal Beamwidth, dB 9 13 12 18

Mechanical Specifications

Wind Loading @ Velocity, frontal 876.0 N @ 150 km/h (196.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 229.0 N @ 150 km/h (51.5 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,165.0 N @ 150 km/h (261.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 603.0 N @ 150 km/h (135.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2824 mm | 111.181 in
Weight, gross 74 kg | 163.142 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
