RRZZ-65D-R4N43V1

8-port sector antenna, 4x 694-960, 4x 1427-2690 MHz 65° HPBW, 4x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Antenna includes 2x Single Column X-Pol Arrays for 694-960MHz and 2x Single Column X-Pol Arrays for 1427-2690MHz, suitable for 4x MIMO applications
  • Excellent wind loading characteristics
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios
  • Antenna design optimized to offer high gain performances

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (2)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2769 mm | 109.016 in
Net Weight, antenna only 38.7 kg | 85.319 lb

Array Layout

Click on image to enlarge.

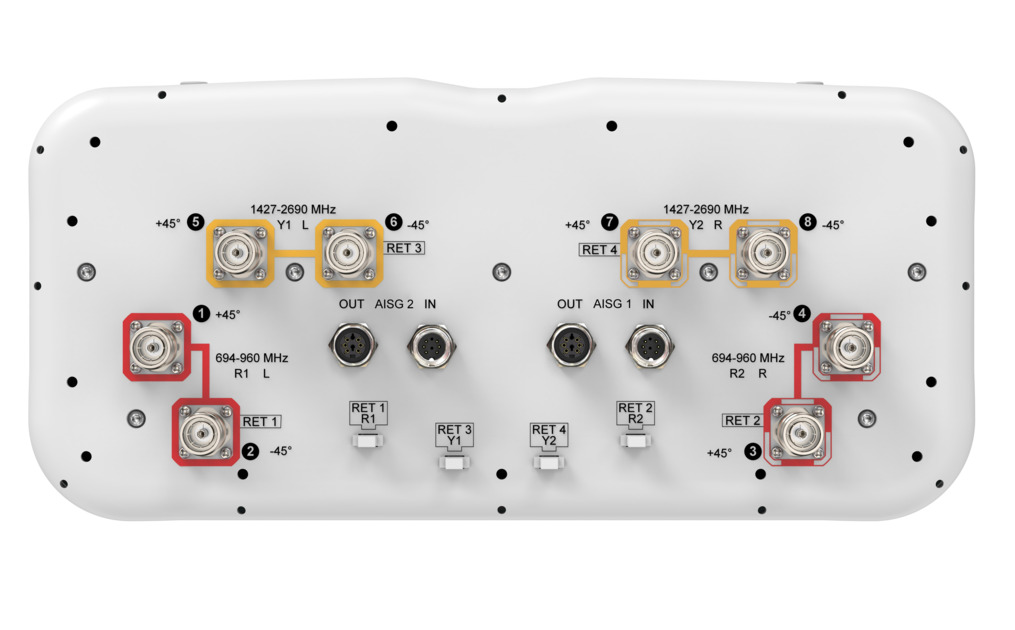

Port Configuration

Click on image to enlarge.

Logo Image

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1,R2 R1,R2 R1,R2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1,2,3,4 1,2,3,4 1,2,3,4 5,6,7,8 5,6,7,8 5,6,7,8 5,6,7,8 5,6,7,8
Gain at Mid Tilt, dBi 15.7 16.5 16.8 16.6 17.8 18.6 19.1 18.8
Beamwidth, Horizontal, degrees 69 64 61 62 62 59 57 60
Beamwidth, Vertical, degrees 7.5 6.8 6.3 7 5.7 5.2 4.5 4.3
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 16 17 18 17 17 16
Front-to-Back Ratio at 180°, dB 31 33 31 32 35 33 33 31
Isolation, Cross Polarization, dB 26 26 26 26 26 26 26 26
Isolation, Inter-band, dB 26 26 26 26 26 26 26 26
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 150 150

Mechanical Specifications

Wind Loading @ Velocity, frontal 651.0 N @ 150 km/h (146.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 351.0 N @ 150 km/h (78.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,028.0 N @ 150 km/h (231.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 421.0 N @ 150 km/h (94.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 529 mm | 20.827 in
Depth, packed 356 mm | 14.016 in
Length, packed 2897 mm | 114.055 in
Weight, gross 58.7 kg | 129.411 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant/Exempted
