RRZZ2VV-6533B-R8
16-port sector/multibeam antenna 4x 694–960 MHz, 4x 1427-2690 MHz 65° HPBW and 8x 1710–2690 MHz 2x 2-Beam 33°HPBW, 8x RET
Features and Benefits
- GREEN and High Capacity Antenna Solution
- Enhances network capacity through six sectors on high band while maintaining low band coverage layer through three sectors with only three antenna faces
- Innovative aerodynamic shape optimized for reduced wind loading in every direction
- Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios
- "Green" packaging of reduced size and gross weight that uses less material and reduces shipping pollution
Specifications
General Specifications
| Antenna Type | DualPol® multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 12 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (6) | Low band (2) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2100 mm | 82.677 in |
| Net Weight, antenna only | 46 kg | 101.413 lb |
Array Layout
| Click on image to enlarge. |

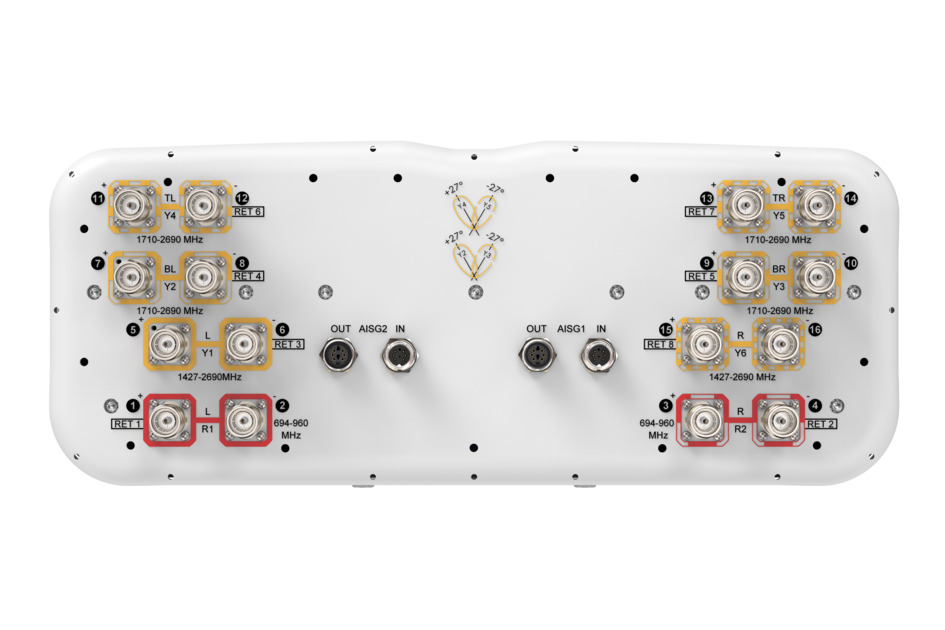

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,700 W @ 50 °C |
Electrical Specifications
| R1,R2 | R1,R2 | R1,R2 | Y1,Y6 | Y1,Y6 | Y1,Y6 | Y1,Y6 | Y1,Y6 | Y2-Y5 | Y2-Y5 | Y2-Y5 | Y2-Y5 | |
| Frequency Band, MHz | 694–806 | 790–896 | 890–960 | 1427–1518 | 1695–1990 | 1920–2300 | 2300–2500 | 2490–2690 | 1710–1990 | 1920–2300 | 2300–2500 | 2490–2690 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 5,6,15,16 | 5,6,15,16 | 5,6,15,16 | 5,6,15,16 | 5,6,15,16 | 7,8,9,10,11,12,13,14 | 7,8,9,10,11,12,13,14 | 7,8,9,10,11,12,13,14 | 7,8,9,10,11,12,13,14 |
| Gain at Mid Tilt, dBi | 14.3 | 14.7 | 14.7 | 14.4 | 15.9 | 16.9 | 18.0 | 17.9 | 16.9 | 18.1 | 18.3 | 18.6 |
| Beam Centers, Horizontal, degrees | ±0 | ±0 | ±0 | ±0 | ±0 | ±0 | ±0 | ±0 | ±27 | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 73 | 66 | 66 | 78 | 76 | 68 | 58 | 56 | 34 | 32 | 28 | 26 |
| Beamwidth, Vertical, degrees | 10.9 | 9.7 | 9.1 | 7.9 | 6.6 | 5.9 | 5.2 | 4.9 | 8.3 | 7.5 | 6.7 | 6.2 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 17 | 17 | 19 | 18 | 19 | 21 | 21 | 16 | 17 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 27 | 30 | 29 | 33 | 33 | 31 | 34 | 34 | 36 | 36 | 34 | 33 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 22 | 20 | 22 | 24 | 24 | 26 | 24 | 30 | 29 | 28 | 27 |
| CPR at Boresight, dB | 20 | 19 | 18 | 21 | 18 | 19 | 22 | 22 | 17 | 21 | 18 | 19 |
| CPR at Sector, dB | 12 | 9 | 9 | 6 | 9 | 4 | 10 | 9 | ||||
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 | 17 | 17 | ||||||||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 0.68 m² | 7.319 ft² |
| Effective Projective Area (EPA), lateral | 0.21 m² | 2.260 ft² |
| Wind Loading @ Velocity, frontal | 714.0 N @ 150 km/h (160.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 187.0 N @ 150 km/h (42.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 949.0 N @ 150 km/h (213.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 491.0 N @ 150 km/h (110.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2287 mm | 90.039 in |
| Weight, gross | 60.4 kg | 133.159 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General Specifications
| Antenna Type | DualPol® multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 12 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (6) | Low band (2) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2100 mm | 82.677 in |
| Net Weight, antenna only | 46 kg | 101.413 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,700 W @ 50 °C |
Electrical Specifications
| R1,R2 | R1,R2 | R1,R2 | Y1,Y6 | Y1,Y6 | Y1,Y6 | Y1,Y6 | Y1,Y6 | Y2-Y5 | Y2-Y5 | Y2-Y5 | Y2-Y5 | |
| Frequency Band, MHz | 694–806 | 790–896 | 890–960 | 1427–1518 | 1695–1990 | 1920–2300 | 2300–2500 | 2490–2690 | 1710–1990 | 1920–2300 | 2300–2500 | 2490–2690 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 5,6,15,16 | 5,6,15,16 | 5,6,15,16 | 5,6,15,16 | 5,6,15,16 | 7,8,9,10,11,12,13,14 | 7,8,9,10,11,12,13,14 | 7,8,9,10,11,12,13,14 | 7,8,9,10,11,12,13,14 |
| Gain at Mid Tilt, dBi | 14.3 | 14.7 | 14.7 | 14.4 | 15.9 | 16.9 | 18.0 | 17.9 | 16.9 | 18.1 | 18.3 | 18.6 |
| Beam Centers, Horizontal, degrees | ±0 | ±0 | ±0 | ±0 | ±0 | ±0 | ±0 | ±0 | ±27 | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 73 | 66 | 66 | 78 | 76 | 68 | 58 | 56 | 34 | 32 | 28 | 26 |
| Beamwidth, Vertical, degrees | 10.9 | 9.7 | 9.1 | 7.9 | 6.6 | 5.9 | 5.2 | 4.9 | 8.3 | 7.5 | 6.7 | 6.2 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 17 | 17 | 19 | 18 | 19 | 21 | 21 | 16 | 17 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 27 | 30 | 29 | 33 | 33 | 31 | 34 | 34 | 36 | 36 | 34 | 33 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 22 | 20 | 22 | 24 | 24 | 26 | 24 | 30 | 29 | 28 | 27 |
| CPR at Boresight, dB | 20 | 19 | 18 | 21 | 18 | 19 | 22 | 22 | 17 | 21 | 18 | 19 |
| CPR at Sector, dB | 12 | 9 | 9 | 6 | 9 | 4 | 10 | 9 | ||||
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 | 17 | 17 | ||||||||
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Mechanical Specifications
| Effective Projective Area (EPA), frontal | 0.68 m² | 7.319 ft² |
| Effective Projective Area (EPA), lateral | 0.21 m² | 2.260 ft² |
| Wind Loading @ Velocity, frontal | 714.0 N @ 150 km/h (160.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 187.0 N @ 150 km/h (42.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 949.0 N @ 150 km/h (213.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 491.0 N @ 150 km/h (110.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2287 mm | 90.039 in |
| Weight, gross | 60.4 kg | 133.159 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
