RRZZT4S4-65B-R6

24-port sector antenna, 4x 694–960 and 4x 1427-2690 MHz 65° HPBW, 8x 2300–2690 and 8x 3300-3800MHz, 90° HPBW, 6x RET

Specifications
Finish making your selections or clear them to view relevant specifications.
Find a Partner
Features and Benefits
  • Antenna includes 2x Single Column X-Pol Arrays for 694-960MHz and 2x Single Column X-Pol Arrays for 1427-2690MHz, suitable for 4x MIMO applications
  • Also includes 1x 4-Column Array for 2300-2690 MHz and a separate 1x 4-Column Array for 3300-3800MHz. Column spacing optimized to support Soft Split Beamforming
  • A calibration port is provided for each 4-Column Array. Six Internal RET’s provide independent electrical tilt control for each array
Specifications

General Specifications

Antenna Type Sector- and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 2
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (3)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in

Array Layout

Click on image to enlarge.

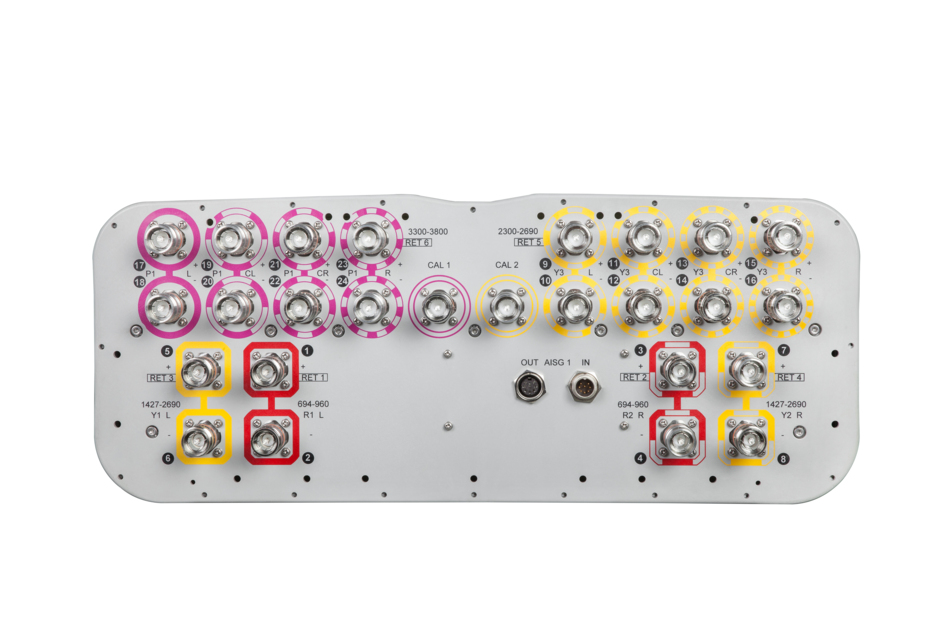

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 2300 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 15.1 15.4 15.6 16.0 17.8 18.3 15.3 15.9
Beamwidth, Horizontal, degrees 71 65 63 77 70 59 94 90
Beamwidth, Vertical, degrees 10.4 9.4 8.4 7 5.5 4.4 6.3 6.6
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 15 17 17 19 16 17 15 15
Front-to-Back Ratio at 180°, dB 32 33 31 31 30 29 31 28
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 9 9
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -145
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 150 75

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain by all Beam Tilts, average, dBi 14.7 15.1 15.4 15.6 17.0 18.0 14.7 15.2
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3 ±0.3 ±0.4 ±0.8 ±0.4 ±0.7 ±0.7
Beamwidth, Horizontal Tolerance, degrees ±6.2 ±3.7 ±3.4 ±5.4 ±6.6 ±6.4 ±13.9 ±17.7
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.5 ±0.2 ±0.7 ±0.3 ±0.5 ±0.6
USLS, beampeak to 20° above beampeak, dB 14 17 17 17 16 14 14 14
Front-to-Back Total Power at 180° ± 30°, dB 21 20 21 25 24 24 23 21
CPR at Boresight, dB 20 20 18 16 17 17 15 16
CPR at Sector, dB 13 9 11 8 4 3 10 8

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 17.3 17.1
Beamwidth, Horizontal, degrees 57 56
Beamwidth, Vertical, degrees 6.2 6.5
USLS (First Lobe), dB 14 16

Electrical Specifications, Service Beam

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Steered 0° Gain, dBi 20.6 20.9
Steered 0° Beamwidth, Horizontal, degrees 26 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 33 30
Steered 0° Horizontal Sidelobe, dB 11 13
Steered 30° Gain, dBi 19.8 19.7
Steered 30° Beamwidth, Horizontal, degrees 28 28

Electrical Specifications, Soft Split

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 19.5 19.6
Beamwidth, Horizontal, degrees 32 32
Front-to-Back Total Power at 180° ± 30°, dB 33 28
Horizontal Sidelobe, dB 18 16

Mechanical Specifications

Wind Loading @ Velocity, frontal 803.0 N @ 150 km/h (180.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 275.0 N @ 150 km/h (61.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,040.0 N @ 150 km/h (233.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 661.0 N @ 150 km/h (148.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2279 mm | 89.724 in
Weight, gross 61.4 kg | 135.364 lb
Weight, net 47.6 kg | 104.940 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value

General Specifications

Antenna Type Sector- and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 2
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (3)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 2300 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 15.1 15.4 15.6 16.0 17.8 18.3 15.3 15.9
Beamwidth, Horizontal, degrees 71 65 63 77 70 59 94 90
Beamwidth, Vertical, degrees 10.4 9.4 8.4 7 5.5 4.4 6.3 6.6
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 15 17 17 19 16 17 15 15
Front-to-Back Ratio at 180°, dB 32 33 31 31 30 29 31 28
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 9 9
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -145
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 150 75

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain by all Beam Tilts, average, dBi 14.7 15.1 15.4 15.6 17.0 18.0 14.7 15.2
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3 ±0.3 ±0.4 ±0.8 ±0.4 ±0.7 ±0.7
Beamwidth, Horizontal Tolerance, degrees ±6.2 ±3.7 ±3.4 ±5.4 ±6.6 ±6.4 ±13.9 ±17.7
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.5 ±0.5 ±0.2 ±0.7 ±0.3 ±0.5 ±0.6
USLS, beampeak to 20° above beampeak, dB 14 17 17 17 16 14 14 14
Front-to-Back Total Power at 180° ± 30°, dB 21 20 21 25 24 24 23 21
CPR at Boresight, dB 20 20 18 16 17 17 15 16
CPR at Sector, dB 13 9 11 8 4 3 10 8

Electrical Specifications, Broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 17.3 17.1
Beamwidth, Horizontal, degrees 57 56
Beamwidth, Vertical, degrees 6.2 6.5
USLS (First Lobe), dB 14 16

Electrical Specifications, Service Beam

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Steered 0° Gain, dBi 20.6 20.9
Steered 0° Beamwidth, Horizontal, degrees 26 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 33 30
Steered 0° Horizontal Sidelobe, dB 11 13
Steered 30° Gain, dBi 19.8 19.7
Steered 30° Beamwidth, Horizontal, degrees 28 28

Electrical Specifications, Soft Split

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2300–2690 2300–2690 3300–3800
Gain, dBi 19.5 19.6
Beamwidth, Horizontal, degrees 32 32
Front-to-Back Total Power at 180° ± 30°, dB 33 28
Horizontal Sidelobe, dB 18 16

Mechanical Specifications

Wind Loading @ Velocity, frontal 803.0 N @ 150 km/h (180.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 275.0 N @ 150 km/h (61.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,040.0 N @ 150 km/h (233.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 661.0 N @ 150 km/h (148.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 565 mm | 22.244 in
Depth, packed 368 mm | 14.488 in
Length, packed 2279 mm | 89.724 in
Weight, gross 61.4 kg | 135.364 lb
Weight, net 47.6 kg | 104.940 lb
