RVV-65D-R3VB-V2
6-port sector antenna, 2x 694–960 and 4x 1695–2690 MHz, 65° HPBW, 3x RET
Features and Benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Antenna with tilt scale indicators and integrated pluggable RET
- Uses the 7/16 DIN female connectors
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 397 mm | 15.630 in |
| Depth | 157 mm | 6.181 in |
| Length | 2547 mm | 100.276 in |
| Net Weight, antenna only | 28.9 kg | 63.714 lb |
Array Layout
| Click on image to enlarge. |

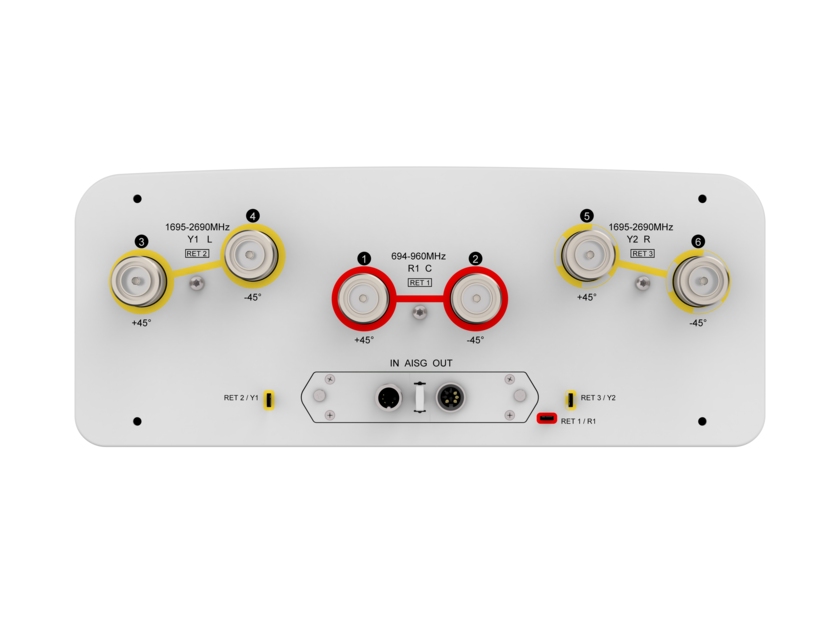

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W |
Electrical Specifications
| R1 | R1 | R1 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1695–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 3-6 | 3-6 | 3-6 | 3-6 |
| Gain at Mid Tilt, dBi | 16.7 | 17.1 | 17.8 | 17.6 | 18.3 | 18.6 | 18.8 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 59 | 66 | 64 | 63 | 62 |
| Beamwidth, Vertical, degrees | 8.7 | 7.7 | 7 | 5.5 | 4.9 | 4.3 | 4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 18 | 16 | 18 | 19 | 18 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 31 | 30 | 28 | 30 | 30 | 28 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1695–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 16.4 | 16.9 | 17.7 | 17.3 | 17.9 | 18.4 | 18.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.3 | ±0.3 | ±0.4 | ±0.5 | ±0.4 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±3 | ±1 | ±1 | ±7 | ±5 | ±2 | ±5 |
| Beamwidth, Vertical Tolerance, degrees | ±0.5 | ±0.4 | ±0.3 | ±0.3 | ±0.3 | ±0.2 | ±0.2 |
| CPR at Boresight, dB | 27 | 32 | 32 | 26 | 25 | 29 | 28 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 669.0 N @ 150 km/h (150.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 366.0 N @ 150 km/h (82.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,080.0 N @ 150 km/h (242.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 525 mm | 20.669 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 2880 mm | 113.386 in |
| Weight, gross | 41.9 kg | 92.374 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 397 mm | 15.630 in |
| Depth | 157 mm | 6.181 in |
| Length | 2547 mm | 100.276 in |
| Net Weight, antenna only | 28.9 kg | 63.714 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W |
Electrical Specifications
| R1 | R1 | R1 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1695–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1,2 | 1,2 | 1,2 | 3-6 | 3-6 | 3-6 | 3-6 |
| Gain at Mid Tilt, dBi | 16.7 | 17.1 | 17.8 | 17.6 | 18.3 | 18.6 | 18.8 |
| Beamwidth, Horizontal, degrees | 66 | 62 | 59 | 66 | 64 | 63 | 62 |
| Beamwidth, Vertical, degrees | 8.7 | 7.7 | 7 | 5.5 | 4.9 | 4.3 | 4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 18 | 16 | 18 | 19 | 18 | 17 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 31 | 30 | 28 | 30 | 30 | 28 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 | 1695–1920 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 16.4 | 16.9 | 17.7 | 17.3 | 17.9 | 18.4 | 18.4 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.3 | ±0.3 | ±0.4 | ±0.5 | ±0.4 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±3 | ±1 | ±1 | ±7 | ±5 | ±2 | ±5 |
| Beamwidth, Vertical Tolerance, degrees | ±0.5 | ±0.4 | ±0.3 | ±0.3 | ±0.3 | ±0.2 | ±0.2 |
| CPR at Boresight, dB | 27 | 32 | 32 | 26 | 25 | 29 | 28 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 669.0 N @ 150 km/h (150.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 366.0 N @ 150 km/h (82.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,080.0 N @ 150 km/h (242.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and Weights
| Width, packed | 525 mm | 20.669 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 2880 mm | 113.386 in |
| Weight, gross | 41.9 kg | 92.374 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
