RVV65A-R3-J

6-port sector antenna, 2x 694–960 and 4x 1695–2690 MHz, 65° HPBW, 3x RET

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Utilizes AccuRET® actuator(s) on the back of the antenna

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom

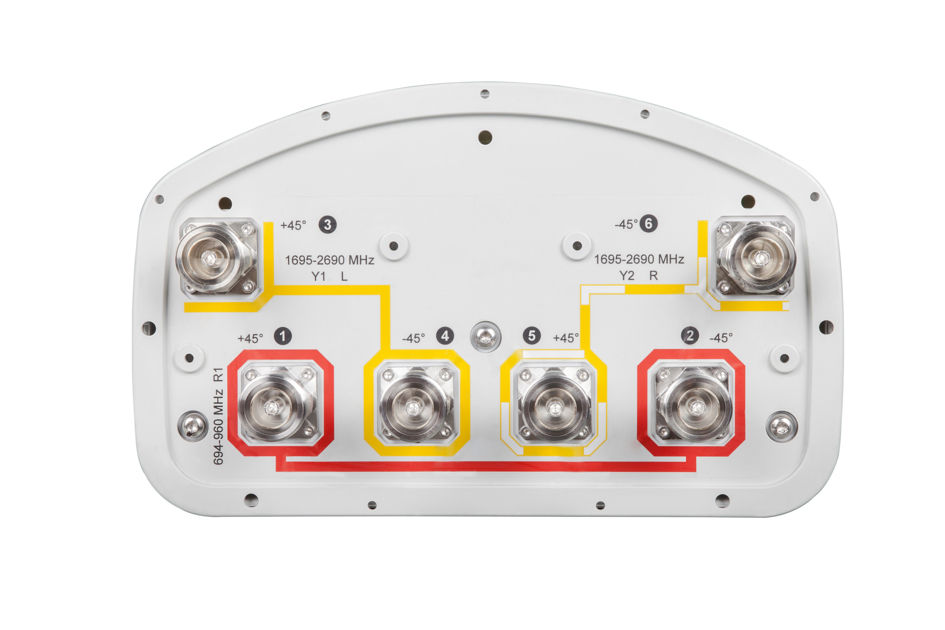

RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 301 mm | 11.85 in
Depth 181 mm | 7.126 in
Length 1412 mm | 55.591 in
Net Weight, without mounting kit 18.6 kg | 41.006 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 850 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2500–2690
Gain, dBi 13.8 14.1 14.5 17.2 17.5 16.7
Beamwidth, Horizontal, degrees 72 70 68 60 63 63
Beamwidth, Vertical, degrees 16.9 15.3 14.2 7.3 6.6 6.4
Beam Tilt, degrees 3–18 3–18 3–18 3–13 3–13 3–13
USLS (First Lobe), dB 16 20 17 18 18 17
Front-to-Back Ratio at 180°, dB 28 33 31 29 32 29
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 100

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2500–2690
Gain by all Beam Tilts, average, dBi 13.5 14.0 14.2 16.6 17.2 16.3
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3 ±0.5 ±0.9 ±0.5 ±0.7
Gain by Beam Tilt, average, dBi 3 ° | 13.6
10 ° | 13.6
18 ° | 13.4
3 ° | 14.0
10 ° | 14.0
18 ° | 13.8
3 ° | 14.5
10 ° | 14.2
18 ° | 13.7
3 ° | 16.6
8 ° | 16.8
13 ° | 16.4
3 ° | 17.1
8 ° | 17.3
13 ° | 16.8
3 ° | 16.3
8 ° | 16.6
13 ° | 15.6
Beamwidth, Horizontal Tolerance, degrees ±2 ±1.5 ±2.8 ±8 ±8.9 ±5.4
Beamwidth, Vertical Tolerance, degrees ±1.2 ±0.8 ±1.1 ±0.5 ±0.5 ±0.4
USLS, beampeak to 20° above beampeak, dB 15 18 17 12 14 10
Front-to-Back Total Power at 180° ± 30°, dB 23 24 21 23 23 23
CPR at Boresight, dB 19 19 18 16 17 21
CPR at Sector, dB 8 9 7 10 11 9

Mechanical Specifications

Wind Loading @ Velocity, frontal 205.0 N @ 150 km/h (46.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 208.0 N @ 150 km/h (46.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 429 mm | 16.89 in
Depth, packed 329 mm | 12.953 in
Length, packed 1672 mm | 65.827 in
Weight, gross 31.9 kg | 70.327 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 301 mm | 11.85 in
Depth 181 mm | 7.126 in
Length 1412 mm | 55.591 in
Net Weight, without mounting kit 18.6 kg | 41.006 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 850 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2500–2690
Gain, dBi 13.8 14.1 14.5 17.2 17.5 16.7
Beamwidth, Horizontal, degrees 72 70 68 60 63 63
Beamwidth, Vertical, degrees 16.9 15.3 14.2 7.3 6.6 6.4
Beam Tilt, degrees 3–18 3–18 3–18 3–13 3–13 3–13
USLS (First Lobe), dB 16 20 17 18 18 17
Front-to-Back Ratio at 180°, dB 28 33 31 29 32 29
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 100

Electrical Specifications, BASTA

Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2500–2690
Gain by all Beam Tilts, average, dBi 13.5 14.0 14.2 16.6 17.2 16.3
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3 ±0.5 ±0.9 ±0.5 ±0.7
Gain by Beam Tilt, average, dBi 3 ° | 13.6;10 ° | 13.6; 18 ° | 13.4 3 ° | 14.0;10 ° | 14.0; 18 ° | 13.8 3 ° | 14.5;10 ° | 14.2; 18 ° | 13.7 3 ° | 16.6; 8 ° | 16.8;13 ° | 16.4 3 ° | 17.1; 8 ° | 17.3;13 ° | 16.8 3 ° | 16.3; 8 ° | 16.6;13 ° | 15.6
Beamwidth, Horizontal Tolerance, degrees ±2 ±1.5 ±2.8 ±8 ±8.9 ±5.4
Beamwidth, Vertical Tolerance, degrees ±1.2 ±0.8 ±1.1 ±0.5 ±0.5 ±0.4
USLS, beampeak to 20° above beampeak, dB 15 18 17 12 14 10
Front-to-Back Total Power at 180° ± 30°, dB 23 24 21 23 23 23
CPR at Boresight, dB 19 19 18 16 17 21
CPR at Sector, dB 8 9 7 10 11 9

Mechanical Specifications

Wind Loading @ Velocity, frontal 205.0 N @ 150 km/h (46.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 169.0 N @ 150 km/h (38.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 208.0 N @ 150 km/h (46.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 429 mm | 16.89 in
Depth, packed 329 mm | 12.953 in
Length, packed 1672 mm | 65.827 in
Weight, gross 31.9 kg | 70.327 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
