RVVPX306.11R-V2
6-port sector antenna, 2x 698–960 and 4x 1710–2690 MHz, 65° HPBW, 3x RET with manual override.
Specifications
Features and Benefits
- Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Brass | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 353 mm | 13.898 in |
| Depth | 209 mm | 8.228 in |
| Length | 1600 mm | 62.992 in |
| Net Weight, without mounting kit | 23 kg | 50.706 lb |
Array Layout
| Click on image to enlarge. |

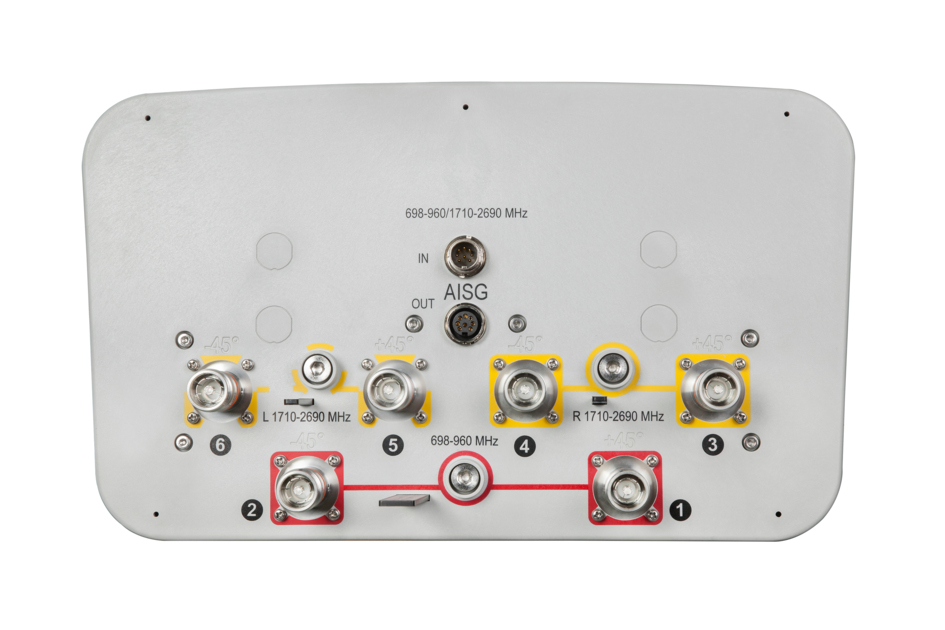

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–790 | 790–890 | 890–960 | 1710–1920 | 1920–2170 | 2300–2690 |
| Gain, dBi | 14.1 | 14.8 | 14.9 | 17.2 | 17.6 | 18.2 |
| Beamwidth, Horizontal, degrees | 68 | 69 | 63 | 62 | 63 | 61 |
| Beamwidth, Vertical, degrees | 16.4 | 14.7 | 13.4 | 7.5 | 6.7 | 5.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 18 | 18 | 18 | 18 | 18 |
| Null Fill, dB | -22 | -22 | -22 | |||
| Front-to-Back Ratio at 180°, dB | 25 | 24 | 25 | 29 | 32 | 30 |
| CPR at Boresight, dB | 16 | 12 | 13 | 20 | 17 | 15 |
| CPR at Sector, dB | 10 | 10 | 7 | 7 | 5 | 3 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.43 | 15.0 | 1.43 | 15.0 | 1.43 | 15.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 748.0 N @ 150 km/h (168.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 634.0 N @ 150 km/h (142.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 250 km/h (155 mph) |
Packaging and Weights
| Width, packed | 427 mm | 16.811 in |
| Depth, packed | 325 mm | 12.795 in |
| Length, packed | 1787 mm | 70.354 in |
| Weight, gross | 40 kg | 88.185 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Brass | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 353 mm | 13.898 in |
| Depth | 209 mm | 8.228 in |
| Length | 1600 mm | 62.992 in |
| Net Weight, without mounting kit | 23 kg | 50.706 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical Specifications
| Frequency Band, MHz | 698–790 | 790–890 | 890–960 | 1710–1920 | 1920–2170 | 2300–2690 |
| Gain, dBi | 14.1 | 14.8 | 14.9 | 17.2 | 17.6 | 18.2 |
| Beamwidth, Horizontal, degrees | 68 | 69 | 63 | 62 | 63 | 61 |
| Beamwidth, Vertical, degrees | 16.4 | 14.7 | 13.4 | 7.5 | 6.7 | 5.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 18 | 18 | 18 | 18 | 18 |
| Null Fill, dB | -22 | -22 | -22 | |||
| Front-to-Back Ratio at 180°, dB | 25 | 24 | 25 | 29 | 32 | 30 |
| CPR at Boresight, dB | 16 | 12 | 13 | 20 | 17 | 15 |
| CPR at Sector, dB | 10 | 10 | 7 | 7 | 5 | 3 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.43 | 15.0 | 1.43 | 15.0 | 1.43 | 15.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 748.0 N @ 150 km/h (168.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 634.0 N @ 150 km/h (142.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 250 km/h (155 mph) |
Packaging and Weights
| Width, packed | 427 mm | 16.811 in |
| Depth, packed | 325 mm | 12.795 in |
| Length, packed | 1787 mm | 70.354 in |
| Weight, gross | 40 kg | 88.185 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
