SBNHH-1D85B

6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 85° HPBW, 3x RET
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Interleaved dipole technology providing for attractive, low wind load mechanical package
  • Three internal RETs for independent tilt on all three bands
Specifications

General Specifications

Antenna Type Sector
Band Multiband
Color Light gray
Effective Projective Area (EPA), frontal 0.27 m² | 2.906 ft²
Effective Projective Area (EPA), lateral 0.22 m² | 2.368 ft²
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum

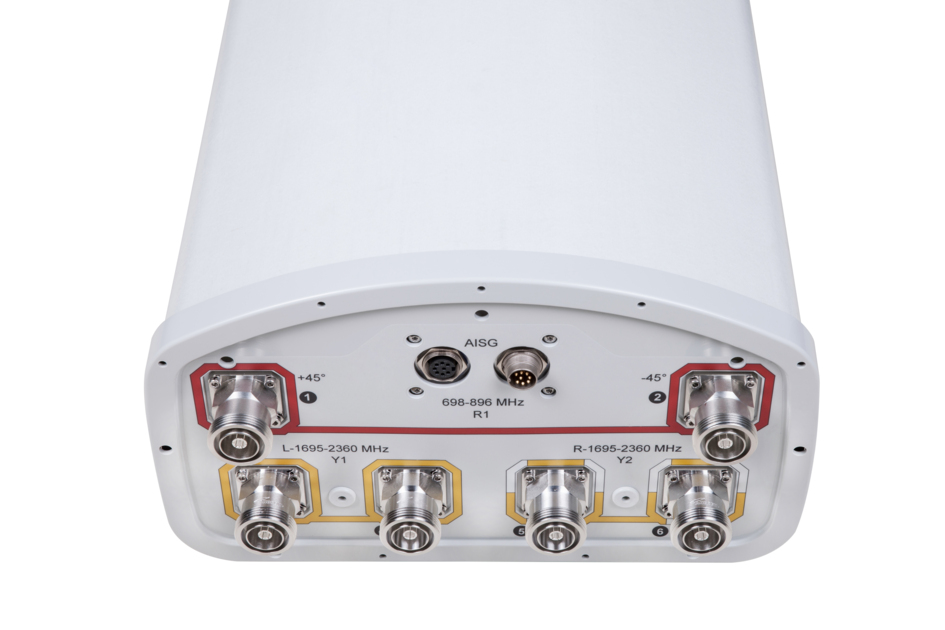

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information, General

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male

Dimensions

Width 301 mm | 11.85 in
Length 1851 mm | 72.874 in
Depth 180 mm | 7.087 in

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°

Remote Electrical Tilt (RET) Information, Electrical

Protocol 3GPP/AISG 2.0 (Multi-RET)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (1)

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 14.5 14.4 17.0 17.6 17.9 17.9
Beamwidth, Horizontal, degrees 83 86 81 79 79 79
Beamwidth, Vertical, degrees 12.3 11.1 5.7 5.3 5 4.6
Beam Tilt, degrees 0–12 0–12 0–8 0–8 0–8 0–8
USLS (First Lobe), dB 19 18 15 16 17 18
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 300 300 250

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 14.3 14.2 16.8 17.4 17.7 17.8
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.5 ±0.5 ±0.3 ±0.4 ±0.3
Gain by Beam Tilt, average, dBi 0 ° | 14.2
6 ° | 14.3
12 ° | 14.1
0 ° | 14.1
6 ° | 14.3
12 ° | 13.9
0 ° | 16.8
4 ° | 16.8
8 ° | 16.7
0 ° | 17.5
4 ° | 17.5
8 ° | 17.2
0 ° | 17.7
4 ° | 17.8
8 ° | 17.5
0 ° | 17.6
4 ° | 18.0
8 ° | 17.6
Beamwidth, Horizontal Tolerance, degrees ±2.4 ±1.7 ±4.8 ±3.2 ±3.8 ±1.9
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.9 ±0.2 ±0.2 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 16 14 15 16 17 18
Front-to-Back Total Power at 180° ± 30°, dB 23 23 27 26 25 27
CPR at Boresight, dB 20 20 23 22 18 22
CPR at Sector, dB 15 16 12 13 10 6

Mechanical Specifications

Wind Loading at Velocity, frontal 283.0 N @ 150 km/h | 65.0 lbf @ 150 km/h
Wind Loading at Velocity, lateral 234.0 N @ 150 km/h | 52.6 lbf @ 150 km/h
Wind Loading at Velocity, maximum 122.5 lbf @ 150 km/h | 545.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 409 mm | 16.102 in
Depth, packed 299 mm | 11.772 in
Length, packed 1970 mm | 77.559 in
Net Weight, without mounting kit 19.1 kg | 42.108 lb
Weight, gross 31.2 kg | 68.784 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance

General Specifications

Antenna Type Sector
Band Multiband
Color Light gray
Effective Projective Area (EPA), frontal 0.27 m² | 2.906 ft²
Effective Projective Area (EPA), lateral 0.22 m² | 2.368 ft²
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information, General

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male

Dimensions

Width 301 mm | 11.85 in
Length 1851 mm | 72.874 in
Depth 180 mm | 7.087 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°

Remote Electrical Tilt (RET) Information, Electrical

Protocol 3GPP/AISG 2.0 (Multi-RET)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (1)

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 14.5 14.4 17.0 17.6 17.9 17.9
Beamwidth, Horizontal, degrees 83 86 81 79 79 79
Beamwidth, Vertical, degrees 12.3 11.1 5.7 5.3 5 4.6
Beam Tilt, degrees 0–12 0–12 0–8 0–8 0–8 0–8
USLS (First Lobe), dB 19 18 15 16 17 18
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 300 300 250

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain by all Beam Tilts, average, dBi 14.3 14.2 16.8 17.4 17.7 17.8
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.5 ±0.5 ±0.3 ±0.4 ±0.3
Gain by Beam Tilt, average, dBi 0 ° | 14.2; 6 ° | 14.3; 12 ° | 14.1 0 ° | 14.1; 6 ° | 14.3; 12 ° | 13.9 0 ° | 16.8; 4 ° | 16.8; 8 ° | 16.7 0 ° | 17.5; 4 ° | 17.5; 8 ° | 17.2 0 ° | 17.7; 4 ° | 17.8; 8 ° | 17.5 0 ° | 17.6; 4 ° | 18.0; 8 ° | 17.6
Beamwidth, Horizontal Tolerance, degrees ±2.4 ±1.7 ±4.8 ±3.2 ±3.8 ±1.9
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.9 ±0.2 ±0.2 ±0.3 ±0.2
USLS, beampeak to 20° above beampeak, dB 16 14 15 16 17 18
Front-to-Back Total Power at 180° ± 30°, dB 23 23 27 26 25 27
CPR at Boresight, dB 20 20 23 22 18 22
CPR at Sector, dB 15 16 12 13 10 6

Mechanical Specifications

Wind Loading at Velocity, frontal 283.0 N @ 150 km/h | 65.0 lbf @ 150 km/h
Wind Loading at Velocity, lateral 234.0 N @ 150 km/h | 52.6 lbf @ 150 km/h
Wind Loading at Velocity, maximum 122.5 lbf @ 150 km/h | 545.0 N @ 150 km/h
Wind Speed, maximum 241 km/h | 149.75 mph

Packaging and Weights

Width, packed 409 mm | 16.102 in
Depth, packed 299 mm | 11.772 in
Length, packed 1970 mm | 77.559 in
Net Weight, without mounting kit 19.1 kg | 42.108 lb
Weight, gross 31.2 kg | 68.784 lb
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
