VVSSP-65S-R1B

10-port small cell antenna, 4x 1695–2690, 4x 3400-3800 and 2x 5150-5925 MHz. 65° HPBW, Internal RET and SBT

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

General Specifications

Antenna Type Small Cell
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material ASA, UV stabilized
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 10
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Male
RET Interface, quantity 1 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1
Internal RET High band (1)
Power Consumption, active state, maximum 1 W
Power Consumption, idle state, maximum 10 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Length 600 mm | 23.622 in
Net Weight, without mounting kit 5.9 kg | 13.007 lb
Outer Diameter 200 mm | 7.874 in

5 GHz Port Power Table

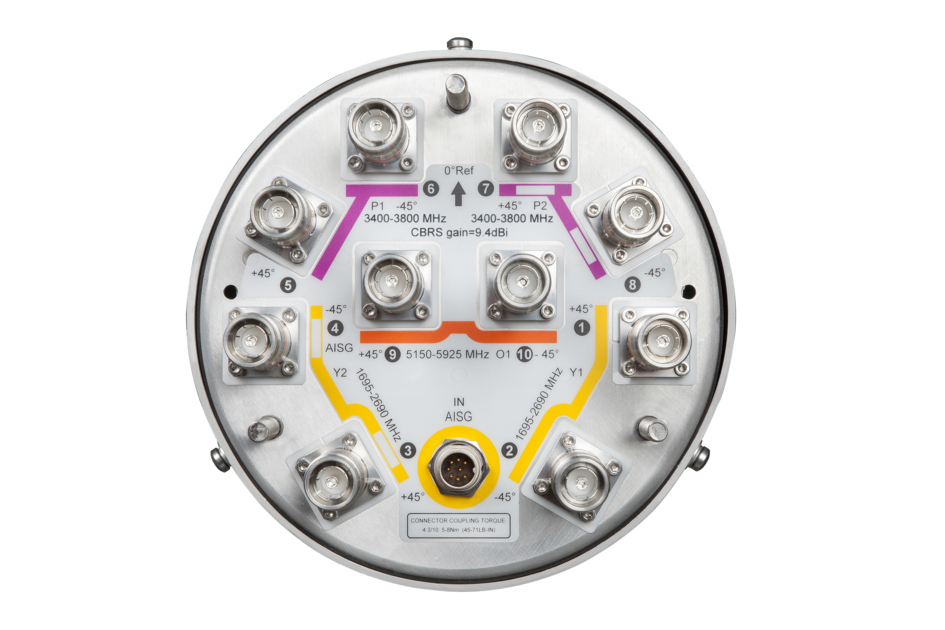

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz
Polarization ±45°
Total Input Power, maximum 300 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 1695–1920 1920–2180 2300–2690 3400–3800 5150–5925
Gain, dBi 11.6 12.3 12.8 9.8 4.2
Beamwidth, Horizontal, degrees 85 74 70 71 73
Beamwidth, Vertical, degrees 22.9 19.7 16 32.9 26.3
Beam Tilt, degrees 2–10 2–10 2–10 7 4
USLS (First Lobe), dB 14 16 15 11 13
Front-to-Back Ratio at 180°, dB 25 28 26 25 26
Isolation, Cross Polarization, dB 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -150
Input Power per Port at 50°C, maximum, watts 75 75 75 35 5

Mechanical Specifications

Mechanical Tilt Range 0°–18°
Wind Loading @ Velocity, frontal 90.0 N @ 150 km/h (20.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 320 mm | 12.598 in
Depth, packed 300 mm | 11.811 in
Length, packed 850 mm | 33.465 in
Weight, gross 8.5 kg | 18.739 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Small Cell
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material ASA, UV stabilized
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 10
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 10

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Male
RET Interface, quantity 1 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1
Internal RET High band (1)
Power Consumption, active state, maximum 1 W
Power Consumption, idle state, maximum 10 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Length 600 mm | 23.622 in
Net Weight, without mounting kit 5.9 kg | 13.007 lb
Outer Diameter 200 mm | 7.874 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz
Polarization ±45°
Total Input Power, maximum 300 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 1695–1920 1920–2180 2300–2690 3400–3800 5150–5925
Gain, dBi 11.6 12.3 12.8 9.8 4.2
Beamwidth, Horizontal, degrees 85 74 70 71 73
Beamwidth, Vertical, degrees 22.9 19.7 16 32.9 26.3
Beam Tilt, degrees 2–10 2–10 2–10 7 4
USLS (First Lobe), dB 14 16 15 11 13
Front-to-Back Ratio at 180°, dB 25 28 26 25 26
Isolation, Cross Polarization, dB 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -150
Input Power per Port at 50°C, maximum, watts 75 75 75 35 5

Mechanical Specifications

Mechanical Tilt Range 0°–18°
Wind Loading @ Velocity, frontal 90.0 N @ 150 km/h (20.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 320 mm | 12.598 in
Depth, packed 300 mm | 11.811 in
Length, packed 850 mm | 33.465 in
Weight, gross 8.5 kg | 18.739 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
