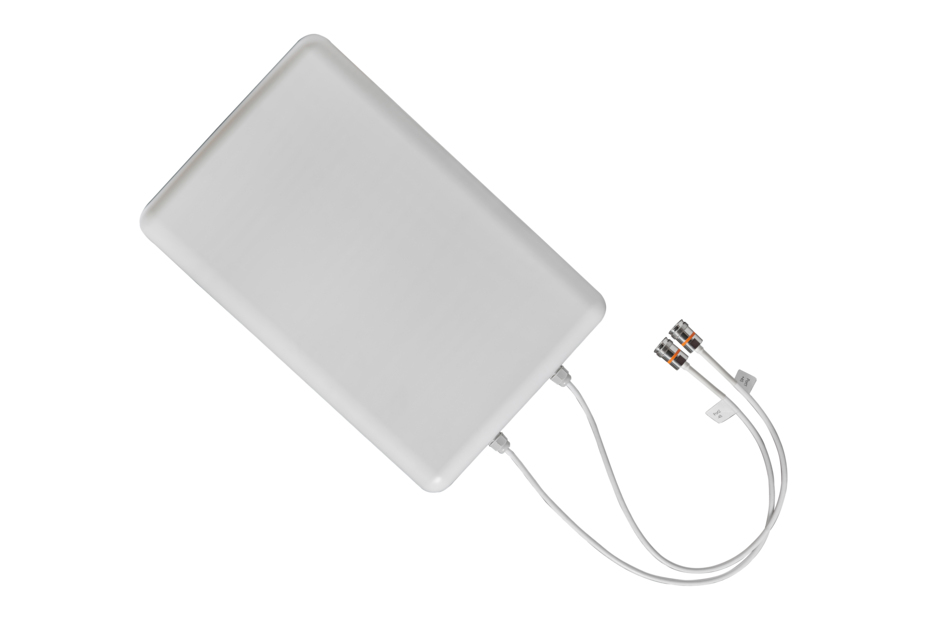

CMAX-DMF-43-WI53
Low PIM Directional MIMO In-Building Antenna, 698–960 MHz, 1695–2700 MHz and 3300-4200MHz
Specifications
Specifications
Product Classification
| Product Type | In-building antenna |
General Specifications
| Application | Indoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | White (RAL 9016) |
| Number of Ports | 2 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 199 mm | 7.835 in |
| Depth | 80 mm | 3.15 in |
| Length | 303 mm | 11.929 in |
| Pigtail Length | 450 mm | 17.717 in |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical Specifications
| Frequency Band, MHz | 698–800 | 800–960 | 1695–2200 | 2200–2700 | 3300–4200 |
| Gain, dBi | 7.1 | 7.6 | 8.4 | 9.0 | 8.0 |
| Beamwidth, Horizontal, degrees | 77 | 77 | 70 | 60 | 54 |
| Beamwidth, Vertical, degrees | 71 | 68 | 62 | 56 | 64 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 15 | 20 | 15 | 17 | 17 |
| Isolation, Cross Polarization, dB | 18 | 20 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.7 | 11.7 | 1.7 | 11.7 | 1.7 | 11.7 | 1.7 | 11.7 | 1.7 | 11.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 | 100 |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and Weights
| Width, packed | 210 mm | 8.268 in |
| Depth, packed | 105 mm | 4.134 in |
| Length, packed | 350 mm | 13.78 in |
| Included | Mounting bracket |
| Weight, gross | 1.4 kg | 3.086 lb |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | In-building antenna |
General Specifications
| Application | Indoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | White (RAL 9016) |
| Number of Ports | 2 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ASA+PC, UV stabilized |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 199 mm | 7.835 in |
| Depth | 80 mm | 3.15 in |
| Length | 303 mm | 11.929 in |
| Pigtail Length | 450 mm | 17.717 in |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical Specifications
| Frequency Band, MHz | 698–800 | 800–960 | 1695–2200 | 2200–2700 | 3300–4200 |
| Gain, dBi | 7.1 | 7.6 | 8.4 | 9.0 | 8.0 |
| Beamwidth, Horizontal, degrees | 77 | 77 | 70 | 60 | 54 |
| Beamwidth, Vertical, degrees | 71 | 68 | 62 | 56 | 64 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 15 | 20 | 15 | 17 | 17 |
| Isolation, Cross Polarization, dB | 18 | 20 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.7 | 11.7 | 1.7 | 11.7 | 1.7 | 11.7 | 1.7 | 11.7 | 1.7 | 11.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 | 100 |
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and Weights
| Width, packed | 210 mm | 8.268 in |
| Depth, packed | 105 mm | 4.134 in |
| Length, packed | 350 mm | 13.78 in |
| Included | Mounting bracket |
| Weight, gross | 1.4 kg | 3.086 lb |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
