C400D-TMBNF

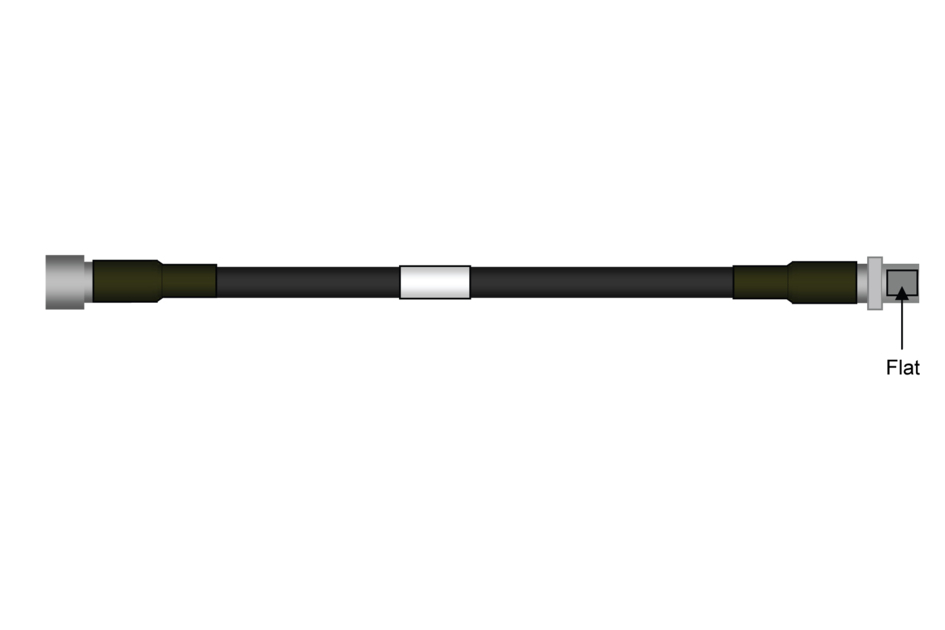

CNT-400-DB CNT® Jumper with interface types TNC Male and N Female Bulkhead, variable length
Specifications
Product Classification
| Product Type | Braided cable assembly |
| Product Brand | CNT® |
| Product Series | CNT-400 |
General Specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Bulkhead |
| Cable Family | CNT-400 |
| Interface, Connector A | TNC Male |
| Interface, Connector B | N Female |
| Specification Sheet Revision Level | A |
| Variable Length | For custom lengths contact 828-324-2200 or 1-800-982-1708 (toll free), or your local CommScope representative |
Dimensions
| Length | 0 m | 0 ft |
| Nominal Size | 0.400 in |
Electrical Specifications
| 3rd Order IMD | -115 dBm |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.135 | 23.98 |
Jumper Assembly Sample Label
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Braided cable assembly |
| Product Brand | CNT® |
| Product Series | CNT-400 |
General Specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Bulkhead |
| Cable Family | CNT-400 |
| Interface, Connector A | TNC Male |
| Interface, Connector B | N Female |
| Specification Sheet Revision Level | A |
| Variable Length | For custom lengths contact 828-324-2200 or 1-800-982-1708 (toll free), or your local CommScope representative |
Dimensions
| Length | 0 m | 0 ft |
| Nominal Size | 0.400 in |
Electrical Specifications
| 3rd Order IMD | -115 dBm |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.135 | 23.98 |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
