C400F-DM-6M
CNT-400-FR CNT® Jumper with interface type 7-16 DIN Male , 6 m
Specifications
Product Classification
| Product Type | Braided cable assembly |
| Product Brand | CNT® |
| Product Series | CNT-400 |
General Specifications
| Body Style, Connector A | Straight |
| Cable Family | CNT-400 |
| Interface, Connector A | 7-16 DIN Male |
| Interface, Connector B | Sold separately |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 6 m | 19.685 ft |
| Nominal Size | 0.400 in |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.433 | 14.99 |

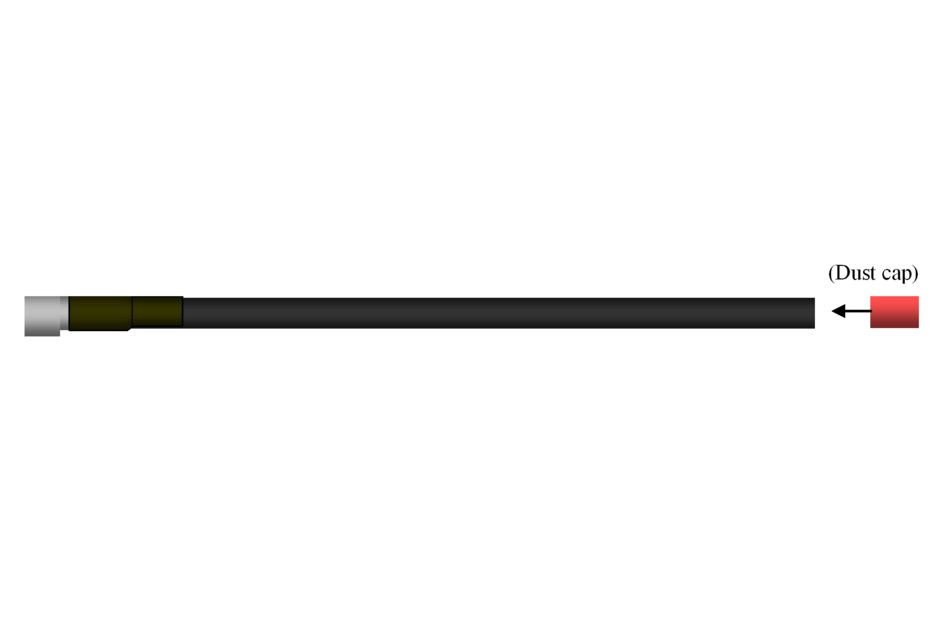

Jumper Assembly Sample Label
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Braided cable assembly |
| Product Brand | CNT® |
| Product Series | CNT-400 |
General Specifications
| Body Style, Connector A | Straight |
| Cable Family | CNT-400 |
| Interface, Connector A | 7-16 DIN Male |
| Interface, Connector B | Sold separately |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 6 m | 19.685 ft |
| Nominal Size | 0.400 in |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.433 | 14.99 |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
