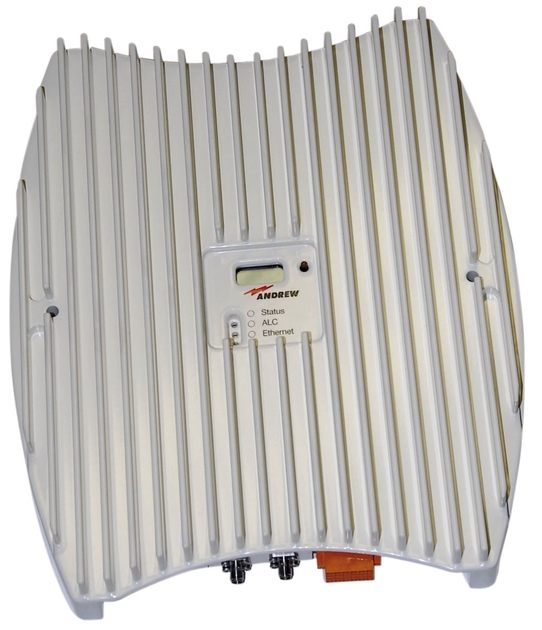

7625001 | MR418 415-420 425-430

Indoor Coverage for 400 MHz TETRA and Tetrapol Applications

Specifications
Finish making your selections or clear them to view relevant specifications.
Find a Partner

Product Classification

Product Type RF repeater unit

General Specifications

Antenna Interface at Repeater SMA Female
Indoor Antenna Optional, not included
Optional Antenna Gain 2 dBi
Optional Antenna Type Omni
Optional Modem Type External GSM
Performance Note Values typical, unless otherwise stated
Supervision/Control Option Heartbeat via SMS | Remote control

Dimensions

Height 270 mm | 10.63 in
Width 240 mm | 9.449 in
Depth 45 mm | 1.772 in
Optional Antenna Length 165 mm | 6.496 in

Electrical Specifications

Gain, typical 70 dB
Gain Adjustment Range 30 dB
License Band TETRA | Tetrapol
Local Power 6 Vdc
Mains Power 100–240 Vac
Return Loss 10 dB
Power Consumption 25 W
Electrical Compliance ETSI TS 101 789-1

Electrical Specifications, Rx (Uplink)

Operating Frequency Band 380 – 385 MHz | 410 – 415 MHz | 415 – 420 MHz
Output Power @ One Carrier 19 dBm
Output Power @ Two Carriers 16 dBm

Electrical Specifications, Tx (Downlink)

Operating Frequency Band 390 – 395 MHz | 420 – 425 MHz | 425 – 430 MHz
Output Power @ One Carrier 19 dBm
Output Power @ Two Carriers 16 dBm

Environmental Specifications

Operating Temperature +5 °C to +40 °C (+41 °F to +104 °F)
Ingress Protection Test Method IEC 60529:2001, IP30

Packaging and Weights

Weight, net 3.2 kg | 7.055 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
