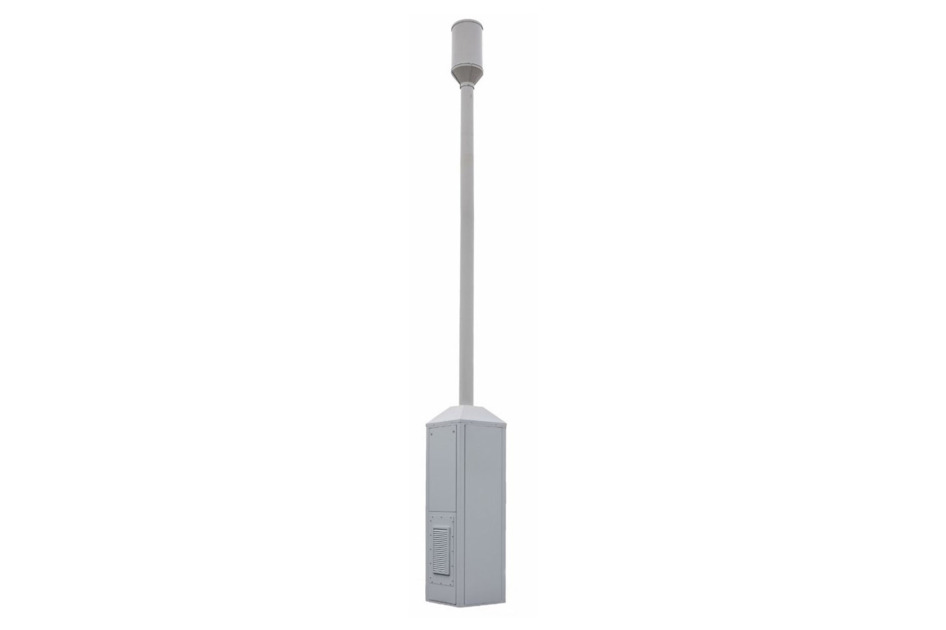

760253133 | 30" Pole Cab 90" Tall Base With Round Shaft

Bottom of the Pole, 30in Square by 90" tall 4G/5G capable Multi Carrier Concealment Enclosure to house and conceal multiple low to high power radios and any other wireless infrastructure equipment in a cabinet at the base of the pole.

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Available with Pole Top concealment, mmWave 5G mounting, luminaire arms.

Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
Flexible configuration accepts low to high-power single or dual band radios, Integrated AC load center/OVP and Disconnect and integrated AC/DC rectifier options

Specifications

Product Classification

Product Type	Pole cab
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antenna Compatibility, CommScope	CommScope Canister Antennas \| Panel Antenna
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER
Color	Light Gray (RAL 7035)
Color Options	Black (RAL 9005) \| Brown (RAL 8014) \| Metallic Silver
Compatible Foundation Type	Poured Concrete \| Pre-Cast Concrete
Compatible Smart Devices	Cameras \| Digital Signage \| Emergency Call Station \| Environmental Monitoring \| Security Lighting \| WIFI
Cooling	Air conditioned \| Fan Cooling
Power Supply Compatibility	DELTA 2.0 \| PSU-AC-08
Radio Compatibility, CommScope	CAP H
Radio Compatibility, Ericsson	1281 \| 220x \| 440x \| 4415 \| 4426 \| 4449 \| 4478 \| 6701 \| 8843 \| 8863 \| Diplexer
Radio Compatibility, Nokia	AEUB \| AEWB \| AEWD/AEWE \| AHBCA \| AHFIA \| AHFIB \| AHFIC \| AHIA \| AHIB \| AHLBA \| AHLBBA \| AZRB \| Diplexer
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| AT1K0X \| Diplexer \| RF4402D-D1A \| RFV01U-D1A \| RFV01U-D2A \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Height	2286.000 mm \| 90 in
Pole Height Options	6.096 m \| 20 ft \| 7.62 m \| 25 ft \| 9.144 m \| 30 ft \| 10.668 m \| 35 ft \| 12.192 m \| 40 ft
Width	762.000 mm \| 30 in
Depth	762 mm \| 30 in
Depth Note	Square
Pole Diameter	203.2 mm \| 8 in

Electrical Specifications

Input Voltage	230–115 Vac
Generator Connection	No connection

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Steel

Environmental Specifications

Thermal Compliance

GR-487
