SSC-760248838 | Radio Enclosure for Nokia or Ericsson

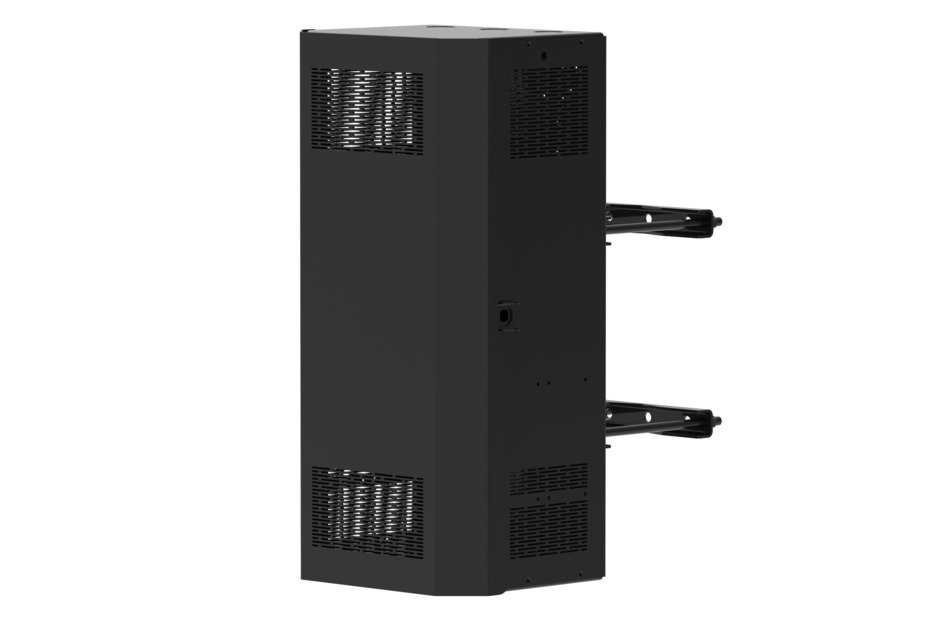

Middle of Pole Pico Concealment Enclosure for Ericsson and Nokia Radios

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of SSC-760248838 | Radio Enclosure for Nokia or Ericsson by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Radio Compatibility Equipment Type Enclosure Color

Part Number	Radio Compatibility	Equipment Type	Enclosure Color
No configured items found.

Features and Benefits

Ericsson: SSC-760248838E5X
(1) 4455 and (1) 4435 radios, (1) OAD-9 and (2) Diplexers
Nokia: SSC-760248838N3X
(1) AHFIA or AHFIB and (1) AWHHF radios, (1) POD-8, (1)
Rectifier and (2) Diplexer

Intended to be used with remote radio heads on standard street lighting and wood pole structures where low-visual impact is desired
Enables attractive concealment and securing of all site equipment on standard street lighting structures
Highly-flexible configuration can house diplexers, AC load center, and/or fiber demarcation

Specifications

Product Classification

Product Type	Mid pole
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| Pure White \| Umbra Grey (RAL 7022)
Cooling	Passive Cooling
Mounting Options	Non-tapered poles \| Tapered poles \| Wood poles
Power Supply Compatibility	APAF \| APAM \| DELTA 2.0 \| FPAE
Radio Compatibility, Ericsson	4435 \| 4455
Radio Compatibility, Nokia	AHFIA \| AHFIB \| AWHHF
Radios Included	None

Dimensions

Height	937.260 mm \| 36.9 in
Width	424.180 mm \| 16.7 in
Depth	363.220 mm \| 14.3 in

Electrical Specifications

Power/Fiber Input

Trade size knockouts at rear side

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Aluminum \| Steel

Environmental Specifications

Thermal Compliance

GR-487

Packaging and Weights

Volume	0.140 m³ \| 4.95 ft³
Weight (loaded)	79.379 kg \| 175 lb
Weight (unloaded)	24.948 kg \| 55 lb
