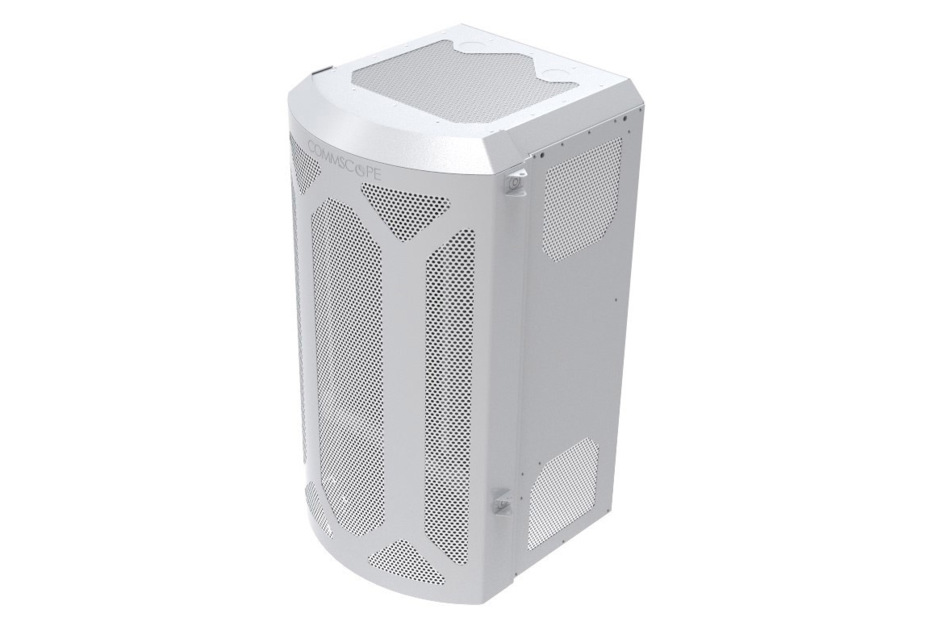

SSC-760249586X1 | Radio Enclosure MV2

Future Ready Middle of the Pole Concealment for Samsung, Nokia, and Ericsson equipment

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of SSC-760249586X1 | Radio Enclosure MV2 by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Radio Compatibility Equipment Type Enclosure Color

Part Number	Radio Compatibility	Equipment Type	Enclosure Color
No configured items found.

Features and Benefits

Includes mounting hardware for clamp on, through-bolt, or banding to poles or structures.

Available After Market Kits -- ordered separately:
-860661823S-xx Wood Pole 5" Standoff
-860661823ST-xx Round Tapered Pole 5" Standoff
-860661736-MV2-C01x Ice Canopy
-860661736-MV2-C02 Delta 3.0 rectifier mount kit
-860661736-MV2-C03x DBHP & MV2 Fan Tray Kit (x = color)
-860661736-MV2-C07 Nokia AZHL & APAM PSU
-860661736-MV2-C020 for Samsung Gen 2 ORAN radios
-860661736-MV2-C09x for 4435/4449/4478/4890 radios & AC08 or 6308 PSU’s. Includes fan tray kit and fan. Select “x” to match color of enclosure.

Intended to be used with high powered remote radio heads on standard street lighting and wood pole structures where low-visual impact is desired
Enables attractive concealment and securing of all site equipment on standard street lighting structures
Highly-flexible configuration can house diplexers, AC load center, and/or fiber demarcation

Specifications

Product Classification

Product Type	Mid pole
Product Brand	Metro Cell
Ordering Note	CommScope® standard product with terms
Warranty	One year

General Specifications

Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| Umbra Grey (RAL 7022) \| White (RAL 9010)
Cooling	Passive Cooling
Mounting Options	Non-tapered poles \| Tapered poles \| Wood poles
Power Supply Compatibility	6304 \| 6308 \| ABB CC1600 \| APAM \| CCI PSU-1200W-48-N \| DELTA 2.0 \| DELTA 3.0 \| PSU-AC-08
Radio Compatibility, Ericsson	220x \| 440x \| 4415 \| 4426 \| 4435 \| 4449 \| 4455 \| 4478 \| 4890 \| 8843 \| 8863
Radio Compatibility, Nokia	AHBCA \| AHBCC \| AHFIA \| AHFIB \| AHFIC \| AHLBA \| AHLBBA \| AWHQN \| AZHL \| Diplexer
Radio Compatibility Samsung	RF4402D-D1A \| RF4439D \| RF4440D \| RF4461D \| RFV01U-D1A \| RFV01U-D2A \| RT2201-46A \| RT4401-48A \| RT4423-48A
Radios Included	None

Dimensions

Height	1219.200 mm \| 48 in
Width	609.600 mm \| 24 in
Depth	635.000 mm \| 25 in

Electrical Specifications

Power/Fiber Input

Trade size knockouts at rear side

Material Specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Aluminum \| Steel

Environmental Specifications

Thermal Compliance

GR-487

Packaging and Weights

Volume	0.490 m³ \| 17.3 ft³
Weight (loaded)	215.456 kg \| 475 lb
Weight (unloaded)	31.751 kg \| 70 lb
